| Categories | Hexagonal Wire Netting Machine |
|---|---|
| Brand Name: | JINTE |
| Model Number: | JT-H |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | USD 19800-25000/set |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 sets/month |
| Delivery Time: | 15-25days |
| Packaging Details: | 1. the main machine will be plastic packed in the container; 2. the main machine will be fixed by steel wire; 3. also can be customized |
| Name: | hexagonal wire mesh net making machine |
| Warranty: | 2 years |
| Wire diameter: | 0.38-2.6mm |
| Mesh size: | 2600-3300mm |
| Speed: | 60-180 meters /hour |
| Material: | GI wire, PVC wire |
| Motor: | 11kw |
| Voltage: | 380V |

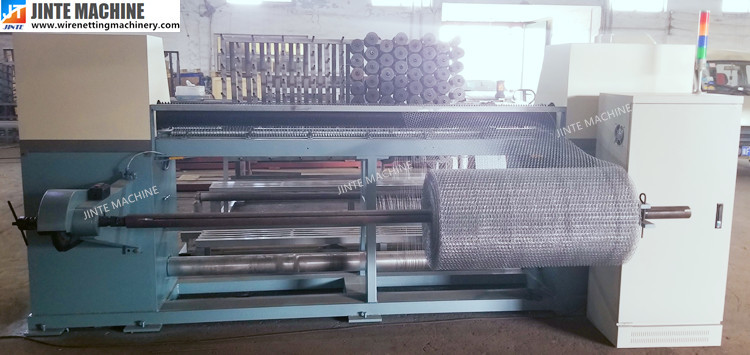

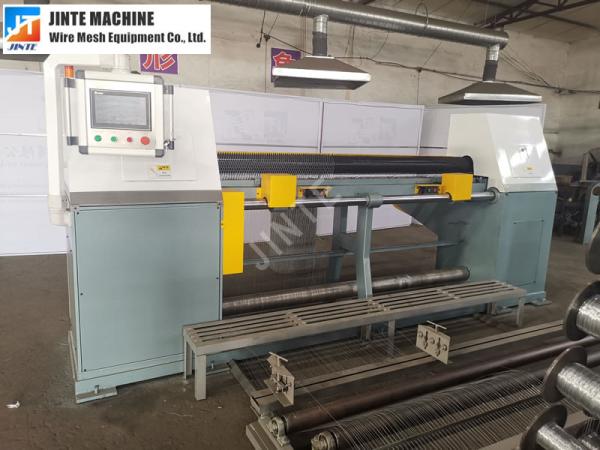

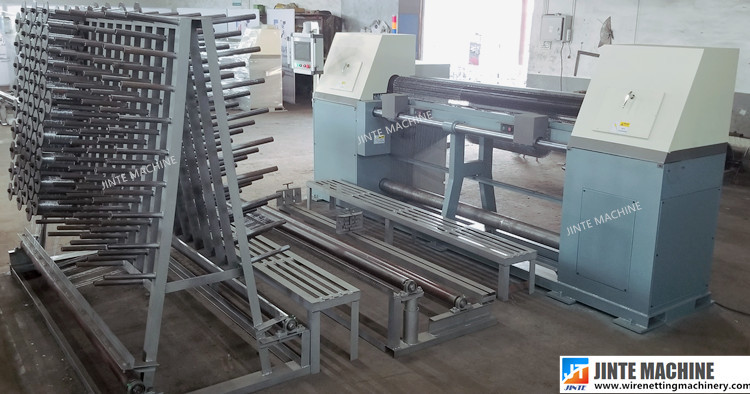

Positive and negative twist hexagonal wire mesh netting machine
Hexagonal wire mesh netting machine also called chicken cage wire mesh machine,is automatically feeding wire weaving mesh,taking up rolls and higher speed than similar machinery.Hexagonal wire mesh is mainly used for chicken feeding,graze protection,industrial filtering,decoration usage,etc.
Hexagonal Wire Mesh Net Making Machine Characteristics
1.Based on the principle of straight and reverse twisted method , it is unnecessary
to make wire spring form to work , so the production increased a lot.
2.The hexagonal mesh can be widely used in fences of farmland and grazing land,
reinforced ribs of building walls and other usages.
3.The machine have adopted automatic stop system, when meet broken wires or
broken mesh it will stop automatically ,so only need 1 or 2 people can
handle this machine successfully
Usage:
Feeding chicken, rabbit, duck, geese, fish and other poultry or small animals. Style can be fence and cage.
| Model | Width (M) | Mesh Size (MM) | Number of Twists | Wire Diameter (MM) | Speed (M/H) | Outsize Dimensions (M) | MOTOR (KW) | WEIGHT (T) |
| 1/2" | 2.0-4.3 | 15x22 | 6 | 0.35-0.7 | 65-220 | 4.2-6.2X1.7X1.6 | 4.5 | 3.8-5.0 |
| 3/4" | 20x35 | 0.35-0.7 | ||||||
| 1" | 25x38 | 0.35-1.2 | ||||||
| 1.2" | 30x40 | 0.35-1.2 | ||||||
| 1.5" | 40x53 | 0.5-2.0 | ||||||
| 2" | 50x85 | 0.6-2.2 | ||||||
| 3" | 80x100 | 0.6-2.4 | ||||||
| 4" | 100x140 | 0.8-3.0 |
ABOUT AFTER SALES SERVICE:
1. Machine to be installed and commissioned by our technicians. We can send our technician to install the machine accordingly if the buyer need.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD100/person/day for salary.
3. Technician: Normally need one or two technician.
4. Training time: one week (contains the time of installation and adjustment)
5. It is in same condition if the buyer need the seller to send the interpreter.
|
