| Categories | Tianma TFT |
|---|---|
| Brand Name: | Tianma |
| Model Number: | TM104SBH01 |
| Certification: | ISO9001 |
| Place of Origin: | Japan |
| MOQ: | 1PCS |
| Payment Terms: | T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW |
| Supply Ability: | 500PCS |
| Delivery Time: | Working Day:1-3 Days |
| Packaging Details: | With Origianl Factory Package |
| Size: | 10.4 Inch |
| Resolution: | 800*600 |
| Luminance: | 300 cd/m² (Typ.) |
| View Direction: | 12 o'clock |
| Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) |
| Support Color: | 262K 50% NTSC |
| Interface Type: | LVDS (1 ch, 6-bit) , 20 pins Connector |
| Contrast Ratio: | 400 : 1 (Typ.) (TM) |
| Touch Panel: | 4-wire Resistive Touch |
| Environment: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Company Info. |
| Sapientia Display Co.,LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
1. Main Information:

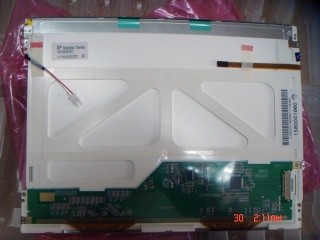

TM104SBH01 is a 10.4" diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd.with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch.
It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are following: With Touch, WLED Backlight, Matte . Based on its features,this model be applied to Industrial etc.
2. TIANMA TM104SBH01 Mechanical Details:
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.088×0.264 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.264×0.264 (H×V) [96PPI] | |
| Mechanical Size : | Active Area(mm) | 211.2(H) × 158.4(V) | Bezel Area(mm) | 214.2(H) × 161.4(V) |
| Outline Dim.(mm) | 236(H) × 176.9(V) | Depth(mm) | 7.3±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Touch Panel : | Touch Points | 1 point | Touch Panel | 4-wire Resistive Touch |
| TP Controller | Without touch controller | Touch Signal | - | |
| Mounting : | Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel | |||
| Other Spec : | Weight | 412g | Treatment | Antiglare, Hard coating (3H) |
3. TIANMA TM104SBH01 Optical Details:
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 12 o'clock | Response(ms) | 10/15 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.321; Y:0.343 | Display Colors | 262K (6-bit) |
| Color Temperature | 6006K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 48% | sRGB | 66% coverage |
| Adobe RGB | 50% coverage | DCI-P3 | 49% coverage | |
| Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA TM104SBH01 Backlight Details:
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 6S6P | Life Time | 20K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 19.2V (Typ.) | Current Supply | 120/180mA (Typ./Max.) | ||
| Consumption | 2.3/3.89W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHSR-02VS-1 | 1 pcs | 2 pins | 3.5 mm | BLE-2PINS-AC | |
| Backlight Driver : | No | |||||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
|
