| Categories | Sharp TFT LCD Display |
|---|---|
| Brand Name: | SHARP |
| Model Number: | LQ104V1DG11 |
| Certification: | IS09001 |
| Place of Origin: | Japan |
| MOQ: | 1PCS |
| Payment Terms: | T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW |
| Supply Ability: | 500 |
| Delivery Time: | Working Day:1-3 Days |
| Packaging Details: | Original Factory Package |
| Price: | 50USD |
| Diagonal Size: | 10.4 inch |
| Pixel Number: | 640(RGB)×480 [VGA] 76PPI |
| Active Area(mm): | 211.2(H)×158.4(V) mm |
| Bezel Area(mm): | 215.2(H)×162.4(V) mm |
| Interface Type: | Parallel RGB (1 ch, 6-bit) , 31 pins Connector |
| Max. Ratings: | 0 ~ 55 °C |
| Type: | a-Si TFT-LCD , LCM |
| Configuration: | RGB Vertical Stripe |
| Outline Dim.: | 265(H)×195(V) ×11.5(D) mm |
| Light Source: | CCFL [2 pcs] , 50K hours , W/O Driver |
| Company Info. |
| Sapientia Display Co.,LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

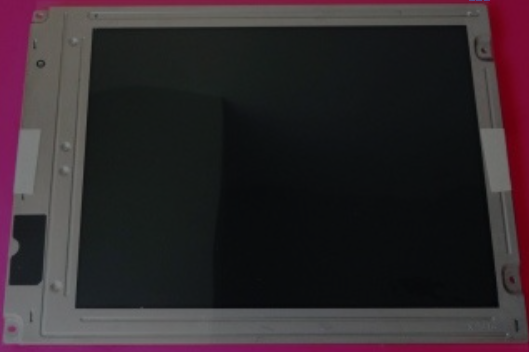

LQ104V1DG11 10.4 INCH SHARP TFT-LCD 640(RGB)×480 [VGA] 76PPI PIXEL 0 ~ 55 °C Industrial LCD Panel
1.Main Information:
LQ104V1DG11 is a 10.4" diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 55°C , a storage temperature range of -25 ~ 70°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Panelook in the following: Lamp Repaceable, Life ≥ 50K hours, U/D,L/R Reverse, Matte . Based on its features, Panelook recommend that this model be applied to Industrial etc.
2.
| Screen Size : | 10.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 211.2×158.4 mm | 215.2×162.4 mm | 265×195 mm | 11.0±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 695g (Typ.) | - | Antiglare (Haze 28%), Hard coating (3H), Antireflection | ||
3.
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 300:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 70/70/40/70 (Typ.)(CR≥10) | 20/40 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6926K | 262K (6-bit) | X:0.305; Y:0.329 | |
| White Uniformity : | 1.45 (Max.)(5 points) | ||
4.
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | 50K(Typ.) | 2 pcs | Straight | Replaceable (LQ0DDB9000) | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 500V (Typ.) | 2.0/6.0/6.5mA (Min./Typ./Max.) | 6.0W (Typ.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 20/35/60KHz (Min./Typ./Max.) | 950/1250V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | |||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 2 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
5.
FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
|
