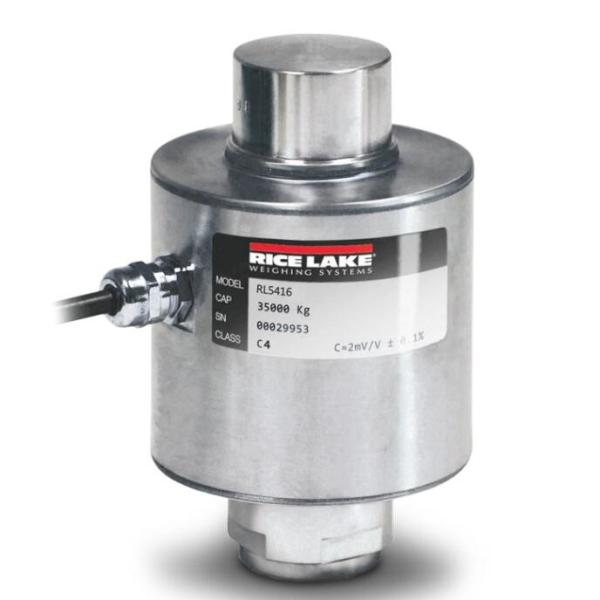

Anti Rotation Truck Scale 50t Rice Lake Load Cell

RICE LAKE CANISTER LOAD CELL, IN STAINLESS STEEL, “RL5416” SERIES Truck Scale Load Cells
Canister load cells for CE-M approved weighbridges, tanks, silos, etc. Manufactured in STAINLESS STEEL, IP69K protection degree, 4000 divisions.
CAPACITIES: 20t, 30t, 40t, 50t.
OIML R60. C4 precision class.
Stainless steel body. IP69K Protection Degree.
20 m Cable.
h= 150mm.

TECNICAL FEATURES
METROLOGICAL FEATURES
Rated capacity: (F.S.): 20 t, 30 t, 50 t
Combined error: 0,02 %F.S.
Creep error (after 30 min.): 0,02 %F.S.
Temperature effect on zero: 0,003 %F.S./°C
Temperature effect on sensitivity: 0,0008 %F.S./°C

OIML R60
Vmin= Emax/18000
Accuracy class: C4
Max. number of intervals: 4000e OIML

ELECTRONICMECHANICAL FEATURES
Gas dischargers to protect against atmospheric discharges
Power Supply: 5...15 Vdc
Rated output at F.S.: 2 ± 0.1% mV/V
Input resistance: 800 ± 3Ω
Output resistance: 700 ± 3Ω
Insulation resistance: 5000MΩ
Operating temperature: -20 ~ +70 °C
Compensated temperature for homologation: -10 ~ +40 °C
Storage temperature limits: -40° ~ +80°
Safe load limit: 120% F.S.
Ultimate overload: 150% F.S.
IP69K protection degree
Stainless steel body
6-core cable, l= 20 m
Nickel plated steel cable gland
Self-centring spherical bases
Equipped with anti-rotation system, to be combined with 173793 cups for proper operation

  • CONNECTION

    Cable Color Code
    RED
    INPUT +
    BLACK
    INPUT -
    VERDE
    OUTPUT +
    WHITE
    OUTPUT -
    YELLOW
    SENSE +
    BLUE
    SENSE -
    METAL
    Shield

  • INSTALLATION KIT

  • The 173793 kit allows a correct installation of the RL5416 load cells below the weighbridge plate.
  • The kit consists of an upper cup and a lower cup with anti-rotation system. All components are made from stainless steel. Both cups are designed for optimal operation in conjunction with the cell’s self-centring spherical bases, allowing their proper oscillation and return to position.
    Available versions

    Code    		Max
    (kg)
    16808420 000
    16808730 000
    16808940 000
    16809050 000
    Assembly kits
    CodeDescription
    173793Kit of 2 jointed cups for selfalignment, in stainless steel. For RL5416xx load cells.
    Junction Box / Boards - Cell cables
    CodeDescription
    JB10QEqualisation box for connection with up to 10 analogue load cells. Reinforced polyester box, with 10 + 1 fairleads. With UL marked PCB, Terminal block, plastic box and labels (if expected).
    LCCBShielded 6x0,25 mm² cable (suitable for Ex zones). €/m
    Protection for junction box/electronic circuits
    CodeDescription
    GELBOX(S1) Anti condensation, insulating, and sealing gel. Useful for the protection of the electronic circuits of the weighing system, even in conditions of prolonged immersions in time. Pack of 300ml.

We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
