SUS316 Push Pull Type Toggle Clamp

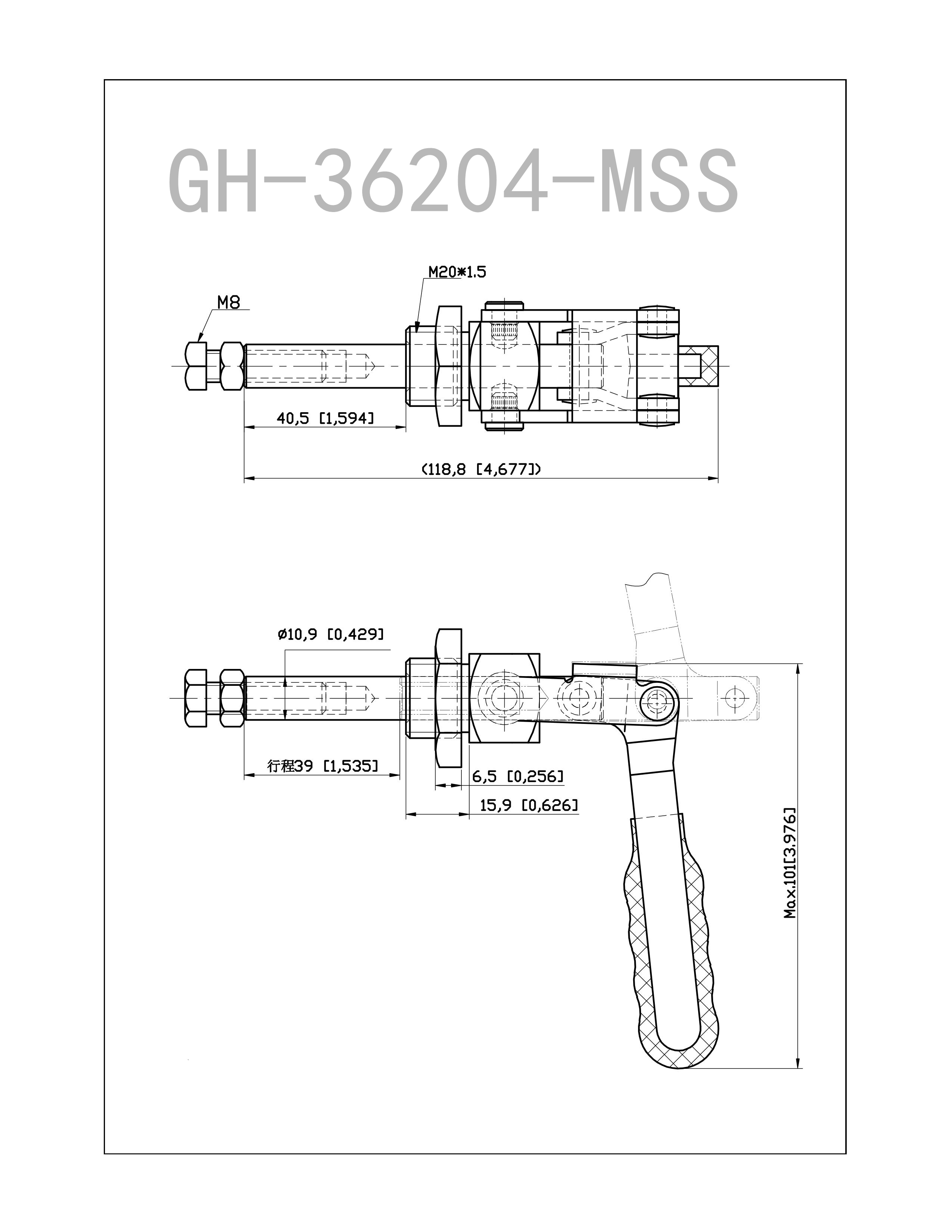

Stainless Steel #316 Push Pull Toggle Clamp Straight Line Action GH-36204-MSS

Quick Release Push and Pull Type Hold Down Handle Toggle Clamp GH-36204-MSS

Features:
Quick release, medium holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Automobile Industry

1. Production of various automobile steering wheels:
1) used as fixtures for welding jigs. Main application models: 201,201-A,201-B,101-B.
2) used as end caps for foaming molds. Main application models: 304,305 series.
2. Production of various automobile interior accessories:
1) Dashboards, etc. (using PP, ABS materials); used as clamping fixtures for "casting molds";
Main application models: 431,40341.
2) Dashboards, etc. (using PU materials); used as clamping fixtures for "foaming molds"; and
Main application models: 40341,10448,20448,702-D etc.
3) Inspection of interior accessories is used as positioning and locking fixtures for testing jigs;
Main application models: 101-D,12130,12135,302-F etc.
4) Lining (with leather, wool cloth materials) is used as fixing fixtures for fixing upper and lower molds on the press.
Main application models: 40370,40380.

3. The production of various automobile (motorcycle) wiring harness and electrical appliances is used as fixtures for testing jigs. Some of them are also used for assembling fixtures during assembly.
Main application models: 201,201-A,201-B,101-A etc.

Logistics Equipment Manufacturing Industry

1. For the welding of metal parts such as fork trucks and cabs, manual toggle clamps are used as fixtures for "welding jigs."
Main application models: 36204-MSS, 11412,10247,12265 etc.

2. For the welding of metal parts of manual movers, platform trucks and stacking trucks, manual toggle clamps are used as fixtures for "welding jigs." Main application models: 36204-MSS, 11412,203-F,225-D,101-H,101-E etc.

3. For the iron wire welding of cages and cage carriers, manual toggle clamps are used as fixtures and positioning bolts for "welding fixtures of the iron wire. Main application models: 203-F,201,302-F,101-A,304-C etc.

4. For the welding of racks, manual toggle clamps are used as positioning bolts and fixtures for forming and assembling "welding molds."
Main application models: 11412,225-D,203-F,302-F etc.
5. For the welding of metal parts of tool cabinets and mobile cabinets, manual toggle clamps are used as fixtures for "welding molds."
Main application models: 11412,225-D,203-F etc.
6. Barcode readers, scanners, printers, etc.

Features:
1. Hand grips are covered with an oil and stain resistant red vinyl or red plastic for easy identification and to assure the safety and comfort of the operator.
2. All die-stamped steel parts are deburred, cleaned, and receive a zinc plated finish that resists corrosion and created a smooth, easy to clean surface.
3. Heavy duty rivets are used to maintain accuracy and to increase endurance. All heavy-duty clamps receive hardened ground pins and bushings.
4 .Flanged washers are supplied with all U-Bar and open bar models. Weld-on bolt retainers are supplied with all solid bar models.
5. Toggle mechanism designed to allow maximum clearance for ease of loading and unloading work piece.
