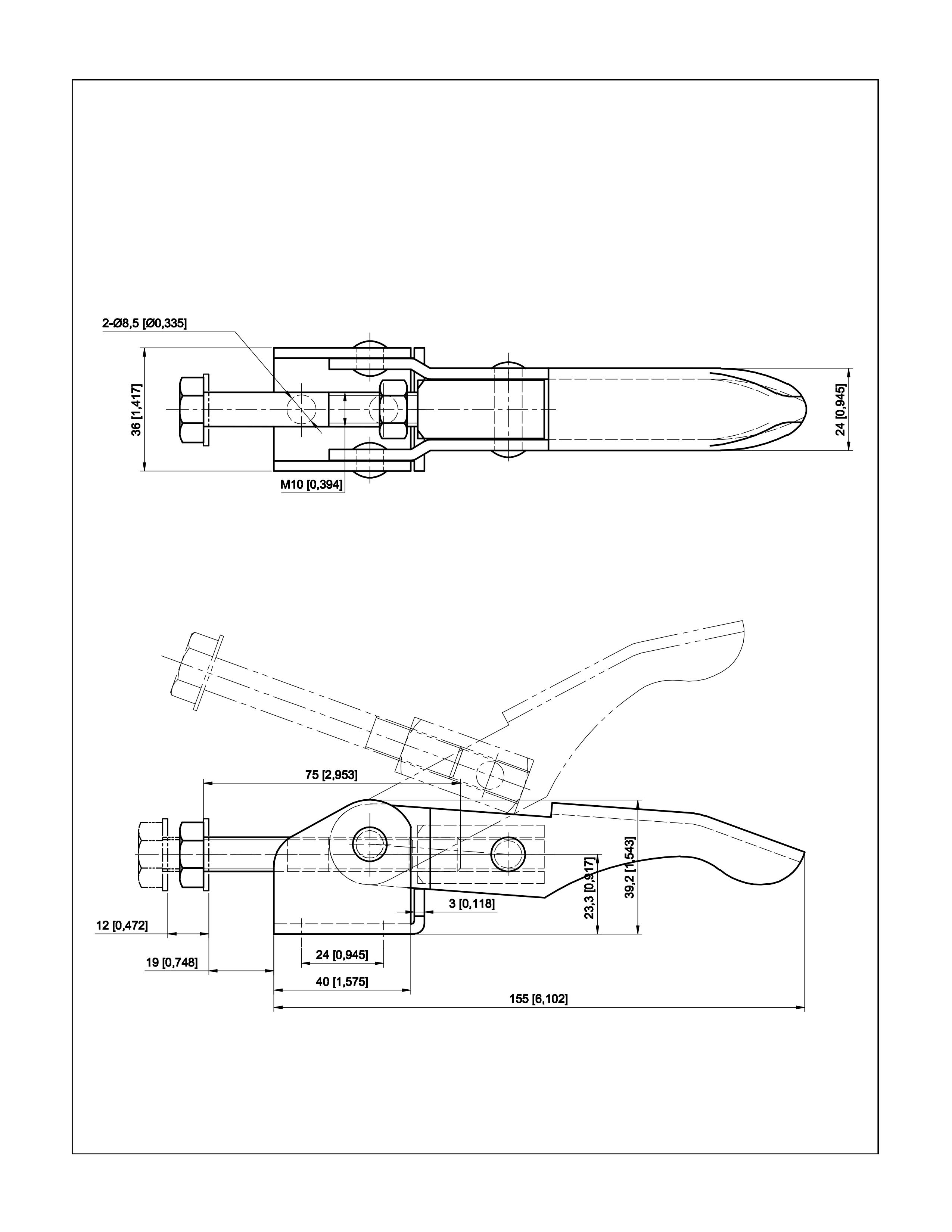

Carbon Steel Hex Head Spindle 385G Adjustable J Hook Toggle Clamp

600LBS Clamping Duty Carbon Steel Adjustable Latch Hex SpindleToggle Clamp 43160

Quick Release Adjustable Steel Pull Action Latch U-bolt Toggle Clamp GH-43160

Features:
Pull action, big holding capacity,quickly release
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Motorcycle Industry

1. Welding of car frames is used as positioning bolts and fixtures for welding molds.
Main application models: 12265,11412,11421,101-B,12205,10247,22175,25382,36020,304-E,304-H,303-E,36060,702-C,30509 etc.

2. Steering column: welding of front and rear forks and guard frames is used as positioning bolts and fixtures for welding jigs.
Main application models: 43160, 11421,11412,22175,36020,302-F,303-E etc.

3. The production of engine cylinder heads and cylinder blocks is used as fixtures for drilling machines.
Main application models: 25383,25382,12265-A,12132-A etc.

4. Carburetors, mufflers and wire harnesses are all used in the same way as in the "automobile industry."
Note: Manual toggle clamps can be used for all products or parts that are similar to the above three points regarding the manufacture of materials and production methods and have the characteristics of continuous mass production.

Refrigeration Equipment Industry

Refrigeration equipment mainly means medium and large cold stores, refrigerators/ cold closets, refrigeration trucks and other products. These products' manual toggle clamps are mainly used in the following aspects:
(1) Production of refrigeration equipment intermediate layer - PU foam insulation material serves as fixtures on the "foaming mold."
Main application models: 36224,36003,304-E,304-H,40341 etc.

(2) The welding of keels of cabinets, boxes and cars are used as fixtures and positioning bolts for "welding jigs."
Main application models: 11421,11412,203-F,12265,36020,304-E etc.

(3) The welding of gold sheet metal for the inner and outer layers of refrigerators, boxes and cars can be used as follows.
(3-1) For medium and small mass production, it is used in "welding molds."
Main application models: 11412,12265,210-C,203-F etc.

(3-2) For medium and large scale non-standard production, F-type clamps or crushing clamps are used, while C-type clamps are less used.

Note: Manual toggle clamps can be used for all products or parts that are similar to the above categories regarding the manufacturing materials and production methods and have the characteristics of continuous mass production.

Railway Vehicle Industry (including subways and light rail vehicles)

1. Body keel welding is used as fixtures for welding molds.
Main application models: 43160,101-J,10247,22502-B,11421,203-F,12130,702-C,702-D.

2. For welding of the outer metal plate of the car body, manual toggle clamps are used as fixtures.
Main application models: F clamps.

3. Welding of door panels is used as positioning bolts and fixtures for welding jigs. Main application models: 11412,12205,10247,225-D,21382,304-C,304-E etc.

4. Welding of seats is used as fixtures for welding fittings. Main application models: 12265,11421,36020,22235 etc.

5. The production of molded foams for luxury seats is used as fixtures for foaming molds. Main application models: 702-D,40341,304-H etc.

6. The adhesion of luxury auto interior accessories is used for adhesion and fixation between interior accessories and auto bodies.
Main application models: F clamps.

Pull-Action Latching Toggle Clamp

This clamp works similar to the latch on fishing tackle boxes. Its handle is appropriately aligned with the opposing latch. Then, it is pulled back down into the locking position. This is used for closing objects such as mold closures and latching doors. Ask the manufacturer of your choice to help you have a brilliant decision in no time.
Categorized into two types such as U-hook and J-hook, pull action latching toggle clamp is ideal for sealing lids and molds. With its threated adjustments, it becomes adaptable to many applications. Options include stainless steel, carbon, and rubber material.

Jointech Industrial Co.,Ltd is a R&D, manufacturing and sales company. In the past over 20 years, we have been focusing on the development of toggle clamps, toggle hasps, locking pliers and hose clamps. By constant accumulation and innovation, Jointech has made itself to be a new enterprise with strong technical capability and well-organized management. With the help of precise CNC machines and skilled employees, our products have been sold out to over 50 different countries.
Jointech specializes in development and design of aircraft, automobile and all manufacturing and processing industries, strives for the manufacturing industry in China to provide reliable, durable, effective and accurate tools. Jointech offers all types of fixtures for customers, not only provides all kinds of universal fixtures, but also ables to produce customized ones as per customer's requirements. People from home and abroad are warmly welcome to our factory for business activities! We bet our services will be different!
