High Return 200mW 5dB FC Build-Out Fiber Optic Attenuator

Categories Fiber Optic Attenuator
Brand Name: Wuhan Geehe
Model Number: GH-AT-SM-002
Certification: ISO9001:2015,RoHS, ISO14001
Place of Origin: Wuhan,China
MOQ: 100 pcs
Price: Negotiation
Payment Terms: T/T,LC,D/P,Ali Pay
Supply Ability: 60,000 pcs/ month
Delivery Time: 5-7 Working Days
Packaging Details: Plastic box with Pressure defense sponge, outer carton
Model Name: Single Mode Fiber Optic Attenuator
Connector Gender: Fixed Female to Female
Fiber Connector: LC/SC/FC/ST/LSH
Attenuation Value: 2db,3db,5db,6db,7db,10db,15db,30db etc
Ferrule Type: Zirconia Ceramic
Housing: Metal, Plastic
Transfer Mode: Singlemode
Max Optical Input Power: 200mW
Mating Durability: <0.2dB
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

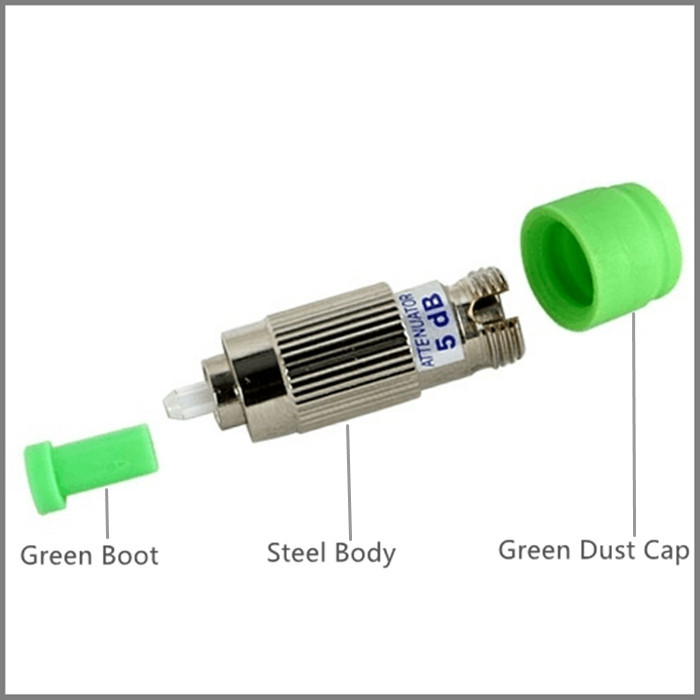

High Return 200mW 5dB FC Build-Out Fiber Optic Attenuator

High Return 5dB Loss FC Build-out Fiber Optic Attenuators Applications


Product Description:


Fiber Optic Pad attenuators are designed to give accurate attenuation over a wide range of wavelengths for your project or application requirement. They used on a more permanent basis in order to match the signal with the transmitter and receiver’s specific power levels.


Build-out attenuators are plug type design allows direct usage on the ends of fiber optic patch cords and adapters, it is commonly used for test and measurement, optical sensor, and telecommunication. We manufacture high-quality FC UPC and FC APC build out fiber optic attenuators ranging from 1dB to 30dB compatible with FC connectors from different suppliers. there are wide keys and arrow keys for options.

Fiber Optic Attenuator Feature:



FC Optic Feature And Benefits:

  1. Easy to install
  2. Attenuation value variable
  3. Customized
  4. Low insertion and return loss
  5. Compact packing
  6. Dual bandwidth 1310 and 1550 support
  7. Compact size decrease physical space requirement
  8. Individually packed,100% tested and attenuation level marked for easy identification


Specification& Parameters:


ParameterValue
Physical CharacteristicsPlastic MaterialUL 94V-0ABS high-impact thermoplastic
Fiber MaterialMetal-ion doped optical fiber
Mechanical CharacteristicsOperating Temperature(℃)-40 ~ +85
Storage Temperature(℃)-40 ~ +85
Optical PerformanceOperating Bandwidth1250nm~1625nm
Center Wavelength1310nm and 1550nm
Attenuation Tolerance1 to 10 dB:±0.5dB
11 to 30 dB:±0.5%dB
Return Loss UPC (dB)≥45
Return Loss APC(dB)≥55
PDL≤0.1
PackagingClear Ziploc Bag,1 Unit Per Bag

Ordering Information:


OTA-HF-XX-X-A-XX-
HF: Hight return loss typeLC: LC
SC: SC
FC: FC
1: APC
2:UPC
03: 03DB
04: 04DB
Attenuator TypeConnectorInterface PolishAttenuation Value

FC Attenuator Application:

  • Telecommunications
  • LAN, CATV
  • Fiber optic sensors
  • Testing instruments
  • FTTH


Geehe Factory Service:


1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity

2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space

3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards


4) Factory Inspection

With 16 years experience of famous brands and Japanese companies, also accept factory inspection by the third part.


5) After Service

Any products with commons welcome feedback, we will reply within 2 hours and solve the problems within 24 hours, service time:24/7.
