Aluminium ring | IEC 62368 Edition 3, CDV Aluminium ring For Wireless Charge

The following foreign object are used:

1.Aluminium ring

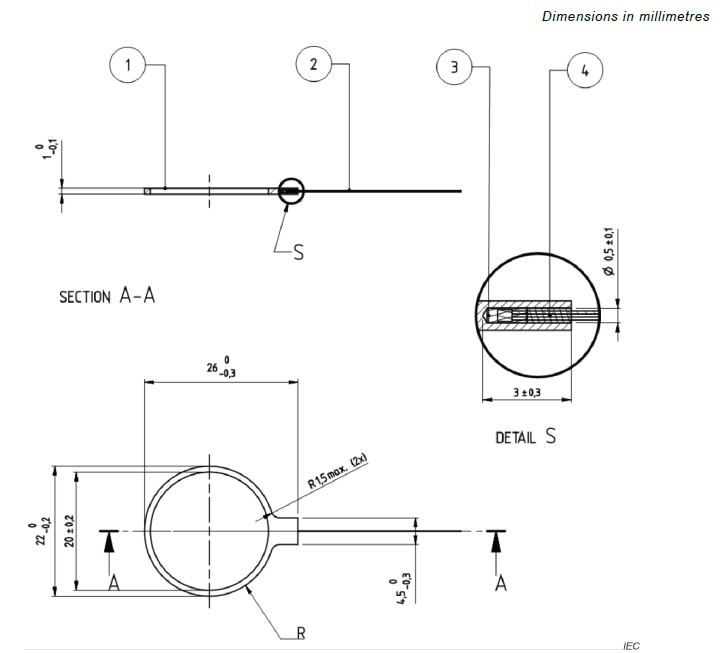

IEC CDV 62368-1/Ed3-Figure 48(including thermocouples)

IEC 62368-1 TESTING AND MEASURING EQUIPMENT
No.	Items	Description	Photo	Qty	Brand
1	Temperature and humidity chamber	IEC62368-1-cl.4.1.4 Model:KP-HWS1000L		1	KingPo
2	Test Apparatus for device forming mains plug	IEC62368-1-cl.4.7 Model :KP-LJ220 Technical Parameter: 1. As per IEC60065-fig11 2. Weight: 1N, 2N. 3. Socket:UK, EU. 4. Arm of force 0-320mm 5.mension: 350*150*150 mm		1	KingPo
3	Jointed test probe for equipment likely to be accessible to children	IEC62368-1-cl.4.8 IEC 62368 -1-Figure V.1		1	KingPo
4	Unjointed test probe	IEC62368-1-cl.4.8 IEC62368-Annex V.1.3 Test method 2		1	KingPo
5	Test hook	IEC 62368-Figure 20		1	KingPo
6	Flat surface	IEC62368-1-cl.4.8.4.6 size:100 mm by 250 mm)		1	KingPo
7	Measuring network, touch current weighted for perception or reaction	IEC 60990 figure 4		1	KingPo
8	Measuring network, touch current weighted for let-go	IEC 60990 figure 5		1	KingPo
9	2kΩ resistor	2kΩ±2%		1	KingPo
10	Jointed test probe for equipment not likely to be accessible to children	Test probes V2		1	KingPo
11	Blunt probe	Test probes V3		1	KingPo
12	Wedge probe	Test probes V4		1	KingPo
13	Terminal probe	Test probes V5		1	KingPo
14	Winding hot resistance tester	IEC62368-1-cl.5.4.1.4, Model:RC3002 Measuring range: 0.500~99.99Ω,±(-0.2% reading +5 D). 99.99~2000Ω±(-0.2% reading +2 D). 2000~10000Ω±(-0.2% reading +1 D). Power supply:AC220V, 50/60Hz , Size:380(W)×340(D)×120(H)		1	KingPo
15	Pink Noise Generator	Pink Noise according to IEC62368-1- Annex E http://www.batterytestingmachine.com/sale-10623142-pink-noise-generator-it-test-equipment-iec-60065-clause-4-2-and-4-3-and-iec-62368-1-annex-e.html		1	KingPo
16	Scratch test device with steel pin	Annex G 13.6.2 http://www.batterytestingmachine.com/sale-11991421-iec-60950-1-clause-2-10-8-4-automatic-abrasion-resistance-tester-printed-circuit-abrasion-strength-d.html		1	KingPo
17	Vicat test B 50 of ISO 306	IEC62368-1-cl.5.4.1.10 Dimension: 720mm×700mm×1380mm Temperatrue: RT+10~300℃ Maximum temperature indication error :0.1℃ Temperature indication precision: ±0.5℃ Deformation measurement range: 0—1.0mm Resolution:0.01mm Sample holder number: 3 sets Power: 4Kw Power supply: 220VAC 50Hz		1	KingPo
18	Ball pressure test apparatus	IEC62368-1-cl.5.4.1.10 http://www.batterytestingmachine.com/sale-11226669-iec-60695-10-2-2014-ball-pressure-tester-with-test-specimen-support-hot-deformation-capacity.html		1	KingPo
19	circuit 1 of Table D.1._Impulse test generator	IEC62368-1-cl.5.4.2.3.2.5 IEC 62368-1/Ed3-Figure D.1 Model:1950S		1	KingPo
20	circuit 3 of Table D.1._Impulse test generator	IEC62368-1-cl.5.4.2.3.2.5 IEC 62368-1/Ed3-Figure D.2 Model:KP-PRM65		1	KingPo
21	Tracking Index Tester	IEC62368-1-cl.5.4.3 Model:KP-FT02		1	KingPo
22	Mandrel test	IEC62368-1-cl.5.4.4.6.5 IEC 62368-1- Figure 25-28 Weight:100N*1,50N*1( the pulling force of 50N, 100N, 150N can be achieved Rotate angle:230° Test mandrel:Triangle bar with a tip		1	KingPo
23	Electric Strength Test	Dielectric strength tester Made accord to IEC 62368-1-Figure 29, IEC60065, UL1310 standards Pole diameter: 5 ± 0.1mm Metal club weight: 100 ± 2g		1	KingPo
24	Non-inductive Resistor 5000Ω and Ampere meter	IEC62368-1-cl.5.4.11		1	KingPo
25	Source with at least 1500A short circuit	IEC62368-1-cl.5.6.4.1 (Annex R) http://www.batterytestingmachine.com/sale-12593671-250v-it-test-equipment-limited-short-circuit-test-iec-62368-1-annex-r.html		1	KingPo
26	Cheesecloth bleached cotton cloth 40g/m2	IEC62368-1-cl.6.4.8.3.3		1	KingPo
27	Needle Flame Tester	IEC62368-1-Annex S.2 Model:KP-FT03		1	KingPo
28	Dark sticky mat, magnified glass with a resolution of 0,1 mm	Conform to IEC 62368-1-cl.8.5.5.2.		1	KingPo
29		magnified glass with a resolution of 0,1 mm Conform to IEC 62368-1-cl.8.5.5.2. Magnification:20x Resolution:0.1mm		1	KingPo
30	circular plan surface φ30mm	IEC62368-1-T.4		1	KingPo
31	Flat surface	IEC 62368-1-cl.8.6.2.3. flat surface 12.5cm by 20cm		1	KingPo
32		800N=330N(item 1 can be used) +100N(item 3 can be used)+150N+200N+flat surface (20N)		1	KingPo
33	Inclined plane 10°	IEC 62368-1-cl.8.6.4. 1, Tilt angle :0-30 °equipped with angle measuring instrument calibration, easy to operate, high accuracy angle, precision ± 0.5 ° 2, The maximum weight load: 50kg 3, Table size: 1000*1000mm. 4.Glass Thickness:10mm		1	KingPo
34	75mm width strap	Conform to IEC 62368-1-cl.8.8		1	KingPo
35	circular plan surface φ30mm	IEC62368-1-cl.8.10.3		1	KingPo
36	Steel disk	IEC 62368-1-cl.9.6.3 IEC CDV 62368-1/Ed3-Figure 47(including thermocouples)		1	KingPo
37	Aluminium ring	IEC 62368-1-cl.9.6.3 IEC CDV 62368-1/Ed3-Figure 48(including thermocouples)		1	KingPo
38	Aluminium foil	IEC 62368-1-cl.9.6.3 IEC CDV 62368-1/Ed3-Figure 49(including thermocouples)		1	KingPo
39	Covering of ventilation openings	IEC 62368-Annex B.3.2 piece of card with minimum 200 g/m² density		1	KingPo
40	Wrapping Tissue	12g/ m2 – 30g/m2		1	KingPo
41	Cord Pull test	IEC 62368-AnnexG.7.3.2.11, Power Supply: AC220V 50HZ; 2, Pull weight: 20N*2,30N*2( the pulling force of 30N,60N,80N,100N can be achieved); 3, Torque weight: 5N*1, 12.5N*1, 17.5N*1 (0.1Nm,0.25Nm,0.35Nm); 4, Tension times: 0~9999(selectable),25 times is by default; 5, Tension frequency: 1 times/s; 6, Torque time: 0.01S～99 hours 99 mins;		1	KINGPO
42	impact test	IEC 62368-Annex T.6  φ50mm/500g± 25g steel ball,		1	KINGPO
43	Drop test	IEC 62368-Annex T.7 Hard wood 13mm on 18mm ± 2mm plywood, two layers		1	KINGPO
44	Centre punch for Fragmentation test	IEC 62368-Annex T.10 1.Weight: 75 g ± 5 g 2. Material: conical tungsten 3. Feature: a carbide tip with an angle of (60 ± 2)°		1	KINGPO
45	Vicat softening test apparatus	Dimension: 720mm×700mm×1380mm Temperatrue: RT+10~300℃ Maximum temperature indication error :0.1℃ Temperature indication precision: ±0.5℃ Deformation measurement range: 0—1.0mm Resolution:0.01mm Sample holder number: 3 sets Power: 4Kw Power supply: 220VAC 50Hz		1	KINGPO
