OD 40mm tube x 1.5mm 2100mm x 2400mm 3.80mmm Mesh opening 60mm x 150mm dia 4.00mm

Categories	Temporary Fencing
Brand Name:	LNF-NZ temporary fencing
Model Number:	60mm150mm2100mm*2400mm
Certification:	ASTM/AS4687-2007
Place of Origin:	American ,Australia ,Canadan
MOQ:	500 liner meter
Price:	8.88$ per liner meter
Payment Terms:	TT30% deposit balance 70% at sight of finished products
Supply Ability:	10000 liner meters
Delivery Time:	7 work days
Packaging Details:	All metal Pallets
Materials:	Q235 Steel Pipes and Wire
Mesh Opening:	2"x4"/50mmx100mm ,4"x12"/100mmx300mm 3"x6" 75mm x 100mm
Diameter:	4.00mm ,8 gauge wire
Type:	Weld Mesh and Steel
Color:	Available any Such as Yellow ,Black ,Blue ,Red etc
Warranty:	5-15 years depand on treatment
Customized:	Available
Size:	6ftx10ft ,6ftx8ft,6.5ft x 9ft etc
Feet:	60mm x 8.00mm thick x 760mm length
Accessoires:	Top Couper

Contact Now

Add to Cart

Company Info.

BOSS METAL AND PLASTIC CO.LTD

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

OD 40mm tube x 1.5mm 2100mm x 2400mm 3.80mmm Mesh opening 60mm x 150mm dia 4.00mm

Temporary Fence Panels

1. Temp fence panels: Temporary fence panel, portable fence, removable fence, pool fence, and swimming pool fencing.

2. Materials: low carbon steel wire

3. Corrosion resistance form: electric galvanized, hot-dipped galvanized

4. Features: It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.

5. Application:

1 The temporary fence panel to secure construction sites and private property.
2Temporary fencing panel of residential housing sites.
3 Temporary fencing panel and crowd control barriers for major public. Events, sports, concerts, festivals, gatherings, etc.
4 Temporary fence panel safety fencing for swimming pools

6. Main markets: Australia

Australia style	Standard temporary fence	Economic temporary fence	Luxury temporary fence	Heavy duty with reinforcing pipe	Light duty temporary fence
Panel length	2400mm	2400mm	2400mm	2900/3000/3300mm	2300mm
Panel height	2100mm	2100mm	2100mm	2100mm	1800mm
Pipe zinc thickness	42 microns	28 microns	84 microns	42 microns	42 microns
Wire zinc thickness	28 microns	14 microns	84 microns	28 microns	28 microns
Pipe outer diameter	32 mm	32 mm	32 mm	32 mm	32 mm
Pipe thickness	2.0 mm	1.4 mm	3.5 mm	4.0 mm	4.0 mm
Wire diameter	4.0 mm	3.0 mm	4.0 mm	4.0 mm	4.0 mm
Mesh opening	60*150 mm	60*150mm	50*50/150/160mm	60*150 mm	60*150 mm
Quality guarantee	6 years without rust	3 years without rust	30 years without rust	6 years without rust	6 years without rust

- The temporary fence panels usually stand 2100mm high and 2400mm wide. These panels and mesh are hand welded with a superior quality 4.0mm mild steel wire for optimum strength and are hot-dipped galvanized for durability.
- The temporary fence panels comply with Australian Standard AS 4687-2007 when used in conjunction with temporary fence plastic feet (infilled with concrete) and clamps.

- The finishing is Hot Dipped Galvanized conforming to Australian Standard - 42 Microns

- There are many color options for plastic feet for you to choose, like red, orange, pink, etc.

Applicable sites :

Commercial Construction Sites, Domestic Housing Sites, Pool construction, Sporting events, Special events, Concerts /Parades, Local Council Work Sites, Crowd control

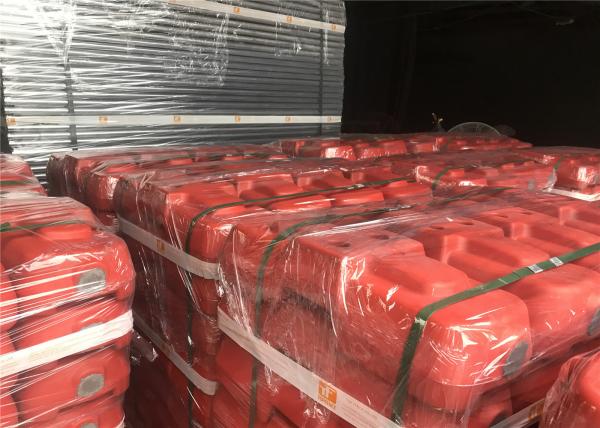

Temporary Fence Foot

Blow molding Base Version HDPE materials						Suit Pipes
Size	600 x 228 x 150mm	Size	620 x 230 x 130mm	Size	600 x 228mm x 150mm	OD 32mm OD 38mm OD 40mm OD 42mm OD 48mm
Materials	HDPE	Materials	HDPE	Materials	HDPE
Finish	UV 3 -UV5	Finish	UV3-UV5	Finish	UV3-UV5
Colors	Orange, Green, Yellow, etc	Colors	Orange, Green, Yellow, etc	Colors	Orange, Green, Yellow, etc
Weight	After filled 27kg-29kg	Weight	After filled 27kg-28kg	Weight	29kg
Design	Australia	Design	Australia	Design	Australia
Clamp	100mm center to center	Clamp	90mm center to center	Clamp	80mm

Blow molding Base Version HDPE materials						Suits pipes
Size	615mm x 230mm x 100mm	Size	620 x 230 x 130mm	Size	600 x 220mm x 150mm	OD 32mm OD 38mm OD 40mm OD 42mm OD 48mm
Materials	HDPE	Materials	HDPE	Materials	HDPE
Finish	UV 3 -UV5	Finish	UV3-UV5	Finish	UV3-UV5
Colors	Orange, Green, Yellow, etc	Colors	Orange, Green, Yellow, etc	Colors	Orange, Green, Yellow, etc
Weight	After filled 27kg	Weight	After filled 27kg-28kg	Weight	29kg
Design	Australia	Design	Australia	Design	Australia
Clamp	100mm center to center	Clamp	100mm center to center	Clamp	100mm

Temporary Fence Brace

Temporary Fencing brace recent 3 years was emphasized use in the whole system to withstand high wind, it is good solutions to fix the problem of fencing panels not stand well in extreme wind climates

temporary fencing panels 2100mm x 2400mm 14 microns zinc layer hot dipped galvanized

tags:3.8mm diameter temporary fence panels

OD 40mm tube x 1.5mm 2100mm x 2400mm 3.80mmm Mesh opening 60mm x 150mm dia 4.00mm
