| Categories | Steel Flange |
|---|---|
| Brand Name: | YUHONG |

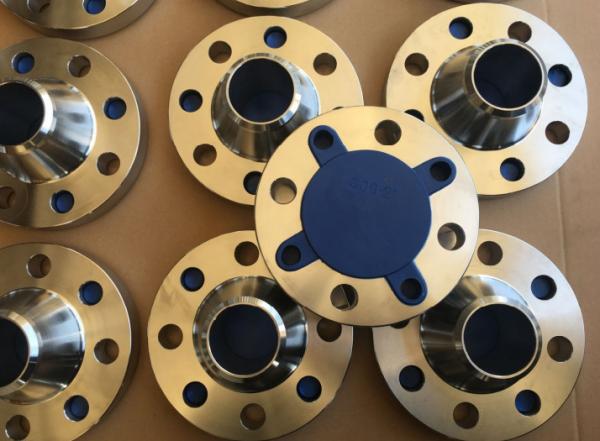

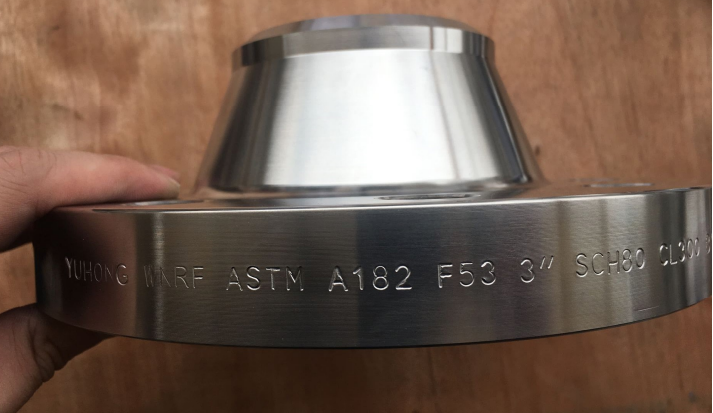

| Model Number: | A182 F53 UNS S32750 B16.5 Super Duplex Ss Flange |
| Certification: | API , ABS, DNV, GL , LR, NK |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Price: | NEGOTIABLE |
| Payment Terms: | L/C, T/T |
| Delivery Time: | 20-80 |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Size: | 1/2"-120" |
| Application: | Petroleum,chemical,etc,fittings and connection,beer |
| Material: | Duplex ASTM A182 F51 F 53 |
| Product name: | Stainless steel flange |
| Process: | Forged |
| Connection method: | RF/FF/RTJ |
| Types: | Duplex Flange |
| Company Info. |
| Yuhong Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
ASTM A240 TP904L UNS N08904 AWWA C207 48'' SOFF STAINLESS STEEL FLANGES
We are one of the biggest projects pipeline products supplier in China, Our products contain steel pipe/tube,fittings, flanges. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
UNS S32750 A182 F53 is a high alloy duplex stainless steel. F53 has excellent resistance to pitting and crevice corrosion resistance compared with the ordinary austenitic or duplex types. Due to this A182 F53 stainless steel is used primarily in highly corrosive conditions. UNS S32750 is a super duplex stainless steel supplied in the solution annealed condition. As a super duplex stainless steel, it combines the desirable aspects of both austenitic and ferritic grades. The higher chromium, molybdenum and nitrogen contents result in a Pitting Resistance Equivalent number (PREN) of >41, providing pitting and crevice corrosion resistance superior to austenitic and duplex stainless steels in almost all corrosive media, and a Critical Pitting Temperature exceeding 50°C.
Dimensions : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges etc.
Standards : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Size : 1/8″ NB TO 48″NB.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
BS : BS4504 , BS4504, BS1560, BS10.
| Chemical Composition Limits | ||||||||||
| Weight% | C | Mn | P | S | Si | Cr | Ni | Mo | N | Cu |
| Super Duplex F53 | 0.03 max | 1.2 max | 0.035 max | 0.015 max | 0.8 max | 24-26 | 43990 | 43895 | 0.3 | 0.5 max |
Mechanical properties:
| Alloy | Tensile Strength ksi | Proof Strength 0.2% ksi (min) | Elongation (%) (min) | Elongation (%) (min) |
| Super Duplex F53 Annealed Condition | 110-135 | 80 | 15 | 16 |
| ASME B16.5 Super Duplex 2507 Flanges | EN TYPE | DIN |
| WN – Welding Neck | EN-TYPE 11 | DIN 2631 |
| DIN 2632 | ||
| DIN 2633 | ||
| DIN 2634 | ||
| DIN 2635 | ||
| BL – Blind | EN-TYPE 05 | DIN 2527 |
| SO – Slip On | EN-TYPE 01/12 | |
| LJ – Lap Joint | EN-TYPE 02/04 | DIN 2641 |
| DIN 2642 | ||
| DIN 2655 | ||
| DIN 2656 | ||
| LWN – Long Welding Neck / Integral | EN-TYPE 21 | |
| Welding Collars | EN-TYPE 32/34 | |
| Super Duplex 2507 Flat Flange for Welding | DIN 2573 | |
| DIN 2576 | ||
| SW – Socket Weld | EN-TYPE 14 | |
| THR – Threaded | EN-TYPE 13 | DIN 2566 |
| Super Duplex 2507 Lap Joint Short Stub End | DIN 2673 | |
| Super Duplex Steel 2507 Orifice Flanges, Super Duplex SS 2507
Swivel Flanges, Spades, Spacer Rings Super Duplex 2507 F55 Spectable Blinds, API 6A, JIS B2220, VSM, NFE, BS10/BS4504, GOST | ||
