Categories | Conductor Stringing Tools |
---|---|
Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Model Number: | SFD |
Packaging Details: | Wooden Cases or Containers |
Delivery Time: | In Stock |
Payment Terms: | T/T, L/C, Western Union, MoneyGram |
Supply Ability: | 2000pcs/months |
MOQ: | 1pcs |
Price: | Get Latest Price |
Certification: | ISO and CE |
Dimension (L x W x H): | Customized |
Usage: | Installation and maintenance for conductor, Inspection, power construction |
Material: | Aluminum,Steel |
Wheel: | Two-wheel |
Rated Load: | 1KN |
Structure: | Platform |
Warranty: | 1 year |
Type: | Single Conductor Inspection Trolley |
Company Info. |
Ningbo Suntech Power Machinery Tools Co.,Ltd. |
Verified Supplier |
View Contact Details |
Product List |
Application

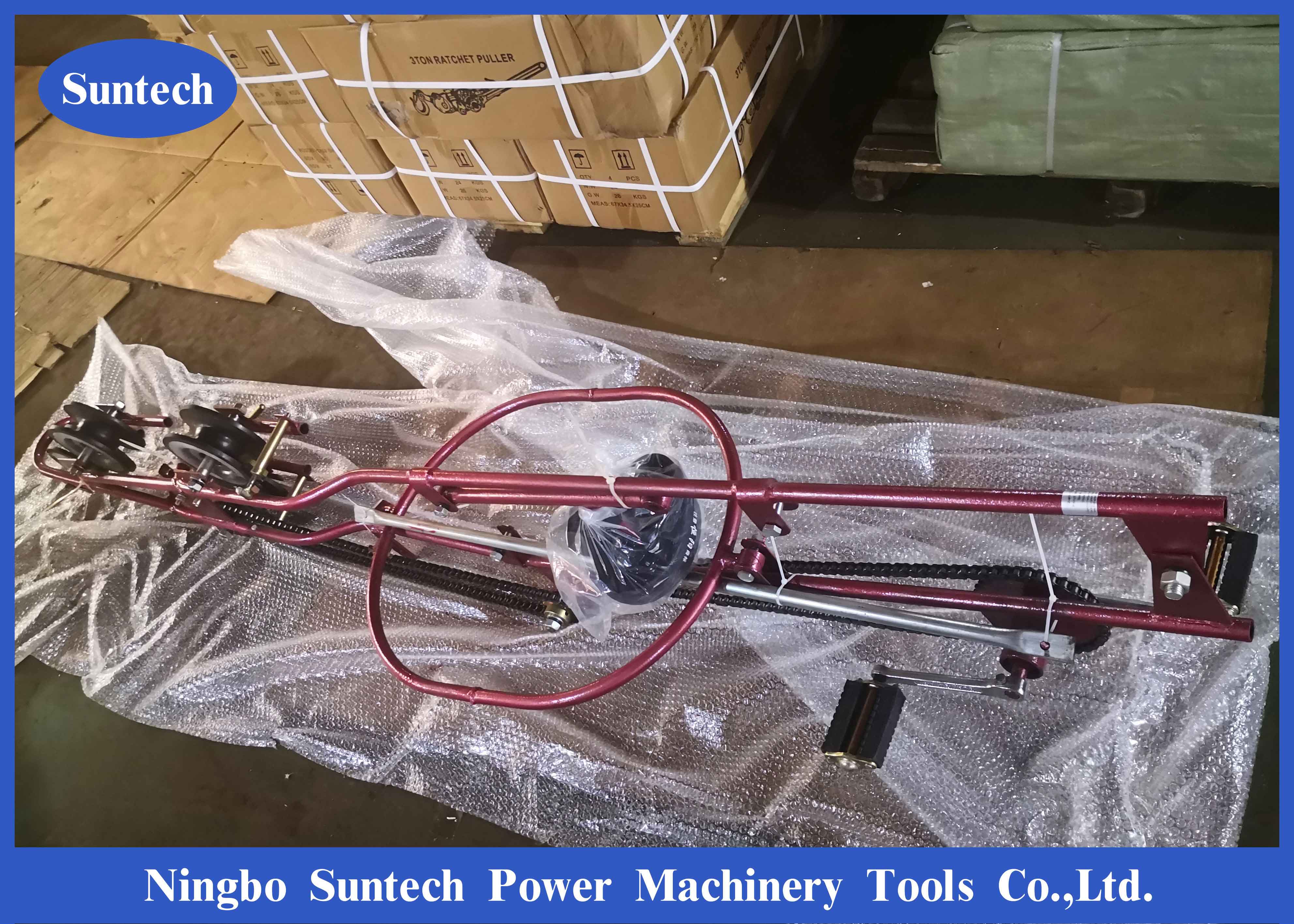

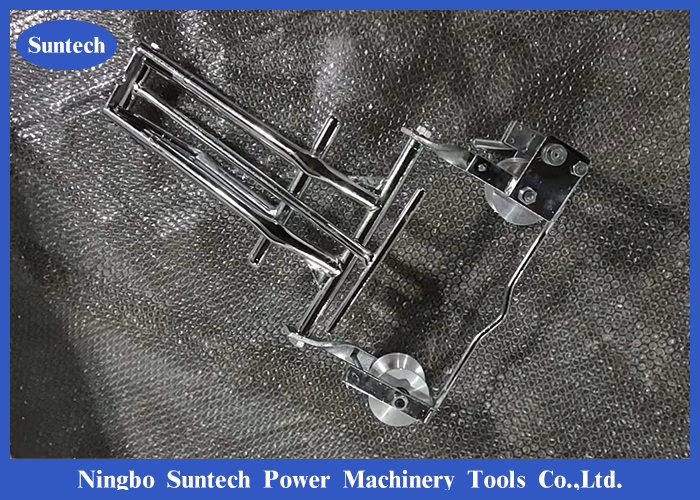

Inspection trolleys and overhead line bicycles/carts for four bundle conductors is used to install accessories and overhaul on four split wires,ect.
Item number | Model | Rated Load(KN) | Diameter of Sheave(MM) | Maximum through diameter(MM) | Weight (KG/M) |
17261 | SFD1A | 1 | Φ55 | Φ25 | 7 |
17262 | SFD1B | 1 | Φ80 | Φ40 | 7 |
17264 | SFD3 | 1 | Φ160 | Φ40 | 34 |
![]() |
