1550nm SC-LC 0.9mm SM Fiber Patch Cord

Categories Fiber Optic Patch Cords / Jumpers
Brand Name: Yogel
Model Number: SC-LC 0.9mm
Certification: ISO9001
Place of Origin: Shanghai
MOQ: 1 pieces
Price: Negotiate
Payment Terms: L/C, T/T
Supply Ability: 10000 per week
Delivery Time: 3-5 working days
Packaging Details: 1 piece in one bag, 1000 bags in one carton
Fiber type: SM
Connector type: SC-LC
Length: 3M
Connector: SC LC FC ST MU
Product name: Fiber Optic Patch Cord
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

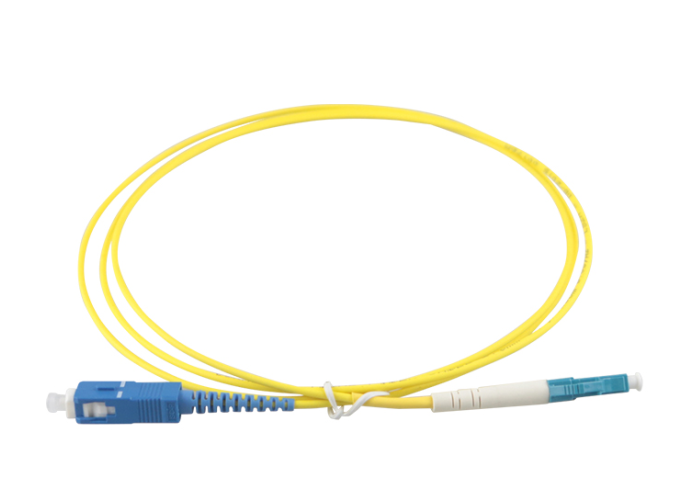

1550nm SC-LC 0.9mm SM Fiber Patch Cord

Optical Fiber Patch Cord (Jumper)

Optical Fiber Patch Cord (Jumper) is a length of optical fiber with two ends adding connectors to connect beam path. Pigtail is a length of fiber permanently attached connector only at one end. Yogel patch cords assembled with various types of connectors (such as FC, SC, ST, LC,MU,MTRJ etc.) There are three kinds of polished fiber end-face: PC, UPC and APC .we employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.


Application:

1. Optical fiber communication systems engineering

2. Fiber optic data communication network

3. Fiber CATV engineering

4. Other optical technology tests


Features:

1. The style is diverse, the interface is complete

2. Low insertion loss and added loss

3. Height of attenuation

4. High back loss, small volume, light weight

5. High stability, high reliability


Specification:


Applicable connector type.SC/APC
Optical fiber typeSM
Test the wavelength1310nm~1550nm
Insertion lossTypical value≤0.15,maximum ≤0.30
Return Loss≥60dB
Insert core diameter∮2.5 mm
Insert core parameterAperture::125.5+1/-0μm,Concentricity:≤1.0μm
Durability1000 times plug
Suitable for optical cable diameter∮2.0mm,∮3.0 mm
Working temperature-20℃ to +70℃
Storage temperature-40℃ to +85℃


Specification:


ItemParameter
Single ModeMultimode
PCUPCAPCPC
Test Wavelength1310/1550nm
Insertion LossTyp. ≤0.15 dB, Max. ≤0.30 dB
Return Loss≥45 dB≥50 dB≥60 dB≥35dB
Repeatability≤0.10 dB
Changeability≤0.20 dB
Durability (1000 Mating)≤0.20 dB
Operation temperature-40 ~ +80℃
Storage temperature-40 ~ +85℃
Connector endSC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cable jacketPVC, OFNR, LSZH, OFNP
Cable diameter3.0mm, 2.0mm, 1.6mm, 1.2mm, 0.9mm
Fiber countSimplex
Fiber type

Single Mode: G. 652D, G. 655, G. 657A2, etc.

Multi-Mode: OM1(62.5/125), OM2, OM3, OM4, OM5, etc. (50/125)


Cable length0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc.
Fiber brandCorning, Sumitomo, Fujikura, YOFC, TFO
Fire resistantIEC 60794-2-30
Standards CompliantROHS, IEC, GR-326

FAQ


1. Are you manufacturer?
Yes!


2. How about the quality?
Our company's products are through the quality of the test, the indicators have reached the international standard.

3. Which currencies are supported?
Dollar, euro, RMB

4.What are the after-sales service?
In the face of service and quality problems,can be settled through friendly consultations,
as far as possible in accordance with customer needs, meet customer needs, meet product quality problems, we can free replacement of new products!


5. How does your factory do the quality control ?
Every product will be fully assembled and carefully tested before packing and shipping.
