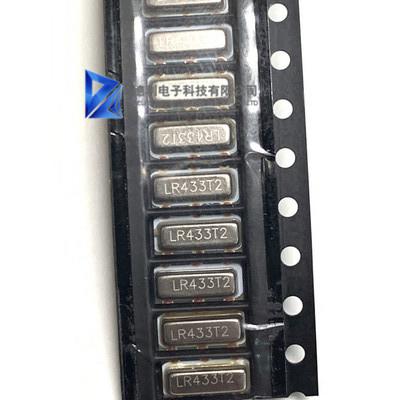

LR433T2 433.92MHZ SMD3 Radio Frequency Resonator

LR433T2 433.92MHZ Resonator High Precision Remote Radio Frequency

Acoustic Meter Crystal Vibration SMD3 7.5*3.5*1.8 MM LR brand

Electrical Connections
This one-port, two-terminal SAW resonator is bi-directional.
The terminals are interchangeable with the exception of circuit board layout.

Pin Connection
1 Terminal
2 Terminal

The test circult inductor, LresT, is tum to resonate with the static
capacitance, Co at Fe.

Electrical Test :

Power Test :

Typical Test Circuit :

Typical Low-Power Transmitter Application:

Equivalent LC Model:
The following equivalent LC model is valid near resonance

Case Design: 7.5*3.5*1.8mm Max
