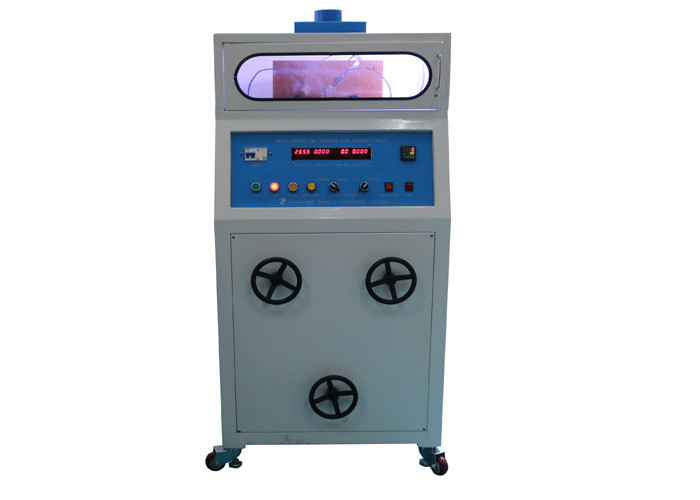

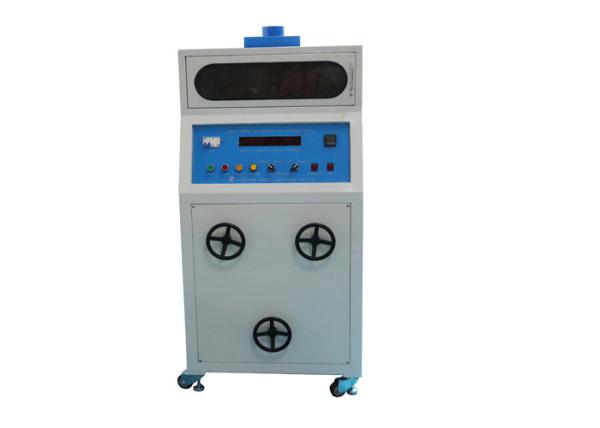

40times/min Heavy Current Ignition Tester Flammability Testing Equipment

Flammability Testing Equipment Heavy Current Ignition Tester For Arcing Resistance Test Of Electric

Standard:

IEC 60950-1 Information technology equipment - Safety - Part 1: General requirements.

IEC60947-1 Low-voltage switchgear and controlgear - Part 1: General rules.

IEC60730-1 Automatic electrical controls -Part 1: General requirements.

Application:

It is suitable for arcing resistance test of electric and electronic products, household appliances and its materials. The working principle is to simulate the electric leakage on the insulator which may cause among different polar of live parts or between live parts and grounded (earthed) metal parts. It is used to measure and assess the arc resistance performance of insulator under the prescribed voltage.

Test sample:

Information technology equipment, low voltage switch and control equipment parts.Flammability Testing Equipment.

Feature:

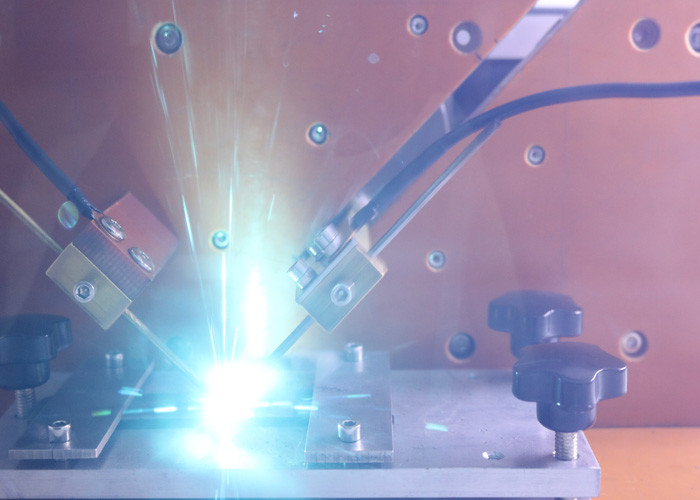

Heavy current ignition tester adopts dual electrodes. With specific current (33A) and power factor (COSφ0.5), according to a certain arc strike speed (254mm/s) and repetition frequency (40 times/min), repeatedly arc strike to 200 times on the surface of specimen. The large current arc ignition performance (HAI) can be assessed according to whether the sample can be ignited. The smaller of the grade number, the more difficult for burning material.

Parameters:
