Mini-Fit Jr. Vertical Header 4.20mm Pitch Dual Row 4 Circuits Without Snap-In Plastic Peg PCB Lock

Categories PCB Connector
Brand Name: MOLEX
Model Number: 39288040
Certification: CE/ RoHS
Place of Origin: CN
MOQ: 10pcs
Price: To be negotiated
Payment Terms: T/T, Western Union ,paypal
Supply Ability: 10,000PCS
Delivery Time: in stock 2-3days
Packaging Details: 500pcs/bag / box
PN: 39288040
type: Mini-Fit Jr. Power Connectors
Pitch: 4.20mm
series: Mini-Fit Jr 5566
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

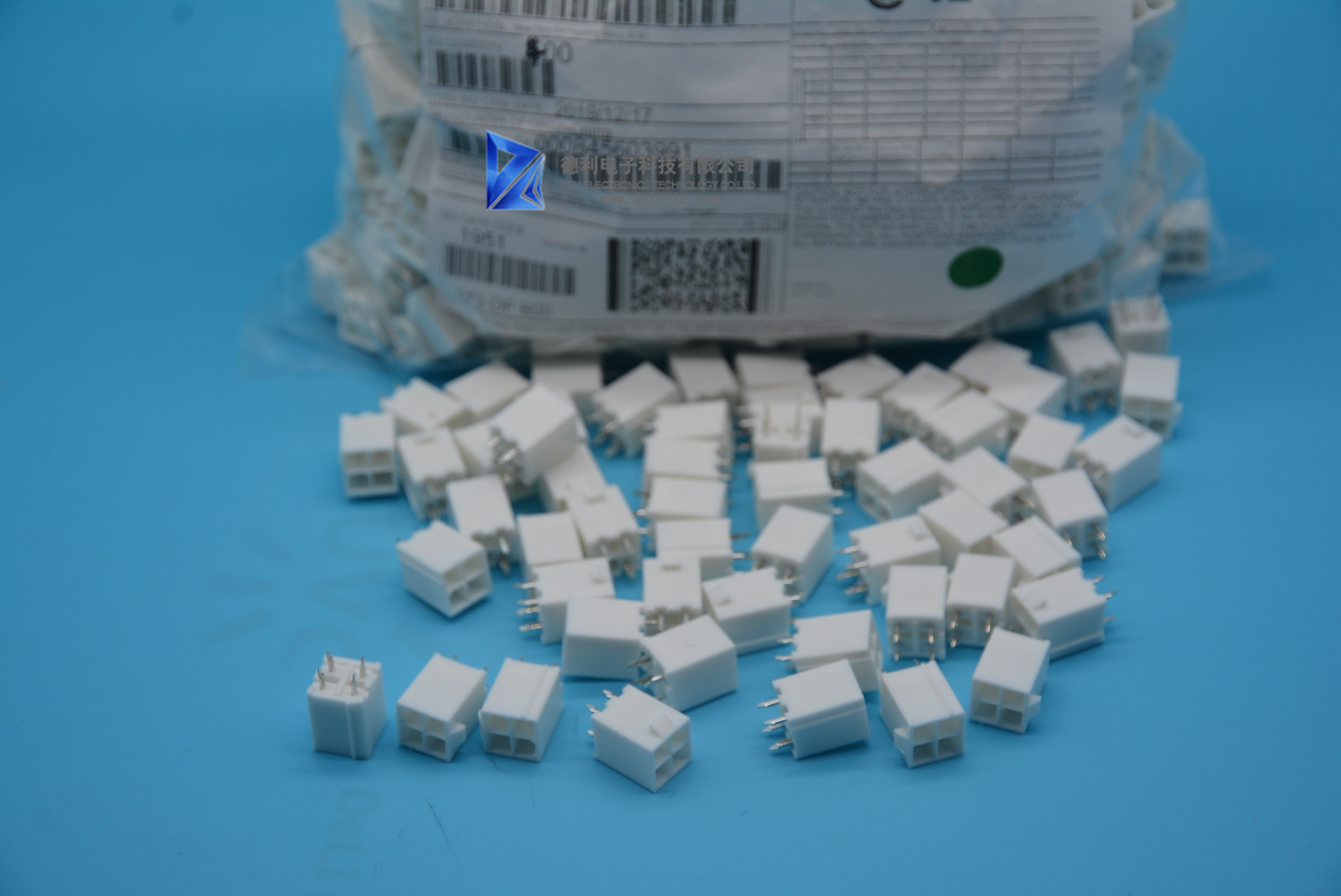

Mini-Fit Jr. Vertical Header 4.20mm Pitch Dual Row 4 Circuits Without Snap-In Plastic Peg PCB Lock

Mini-Fit Jr. 5566 Vertical Header 4.20mm Pitch Dual Row 4 Circuits without Snap-in Plastic Peg PCB Lock Tin Natural

part number


39288040 Molex

Description


CONN HEADER VERT 4POS 4.2MM

packing


in bag /box

series


Mini-Fit Jr 5566

material


new and orginal

Connector type


joint

Contact type


The male form of a pin

Spacing - mating


0.165"(4.20mm)
  • Pin

4

row

2


Line spacing - mating


0.165"(4.20mm)

Number of pins loaded


all

type


Plate to cable/conductor
  • protective guard

With masking - 4 walls


  • Installation Type

through-hole


terminating


soldering

Fastening type


Locking pin chute

Contact length - mating


-

Contact length - terminal


0.138"(3.50mm)

Total contact length


-

Insulation height


0.504"(12.80mm)

Contact shape


square

Contact surface treatment - mating


tin

Contact surface treatment thickness - mating


35.4µin (0.90µm)

Contact surface treatment - column


tin

Contact material


    brass

    insulating material


    Polyamide (PA66), nylon 66
    • FEATURES

    -


    • Operation Temperature

    -


    Intrusion protection

    -


    Flammability grade of materials

    UL94 V-0


    Insulation color

    natural


    rated current

    -


    • Rated Voltage

    -
