3 Axles Lime Powder One Silo 25m3 Dry Bulk Tanker Trailer

Categories Dry Bulk Tanker Trailer
Brand Name: Genron
Model Number: GV04006
Place of Origin: China
MOQ: 1 Unit
Price: USD 21300-USD 21500
Payment Terms: T/T, L/C
Supply Ability: 50 pieces per month
Delivery Time: 5-20work days
Packaging Details: naked packing and polish with wax
Certification: CCC
Product name: dry bulk tanker trailer
Axle: 3 Axles
Suspension: air suspection
Size: 12000mm*2490mm*3990mm
Material: steel
Use: transport lime powder
Type: semi trailer
Max payload: 25m³
Color: customers optional
King pin: JOST 3.5 inch bolt-in king pin
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

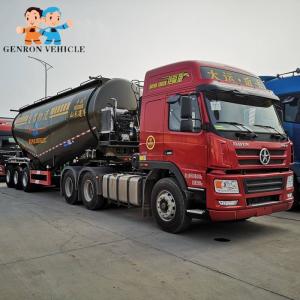

3 Axles Lime Powder One Silo 25m3 Dry Bulk Tanker Trailer

Product Introduction of 3 Axles 25m³ Dry Bulk Tanker Trailer Transport Lime Powder :

Our powder can semi-trailer tank independent research and development, is a patented product, has obtained the Chinese utility model patent certificate!


The V-shaped tank designed by our company has the best reputation in the domestic tank transportation industry because of its light weight, less than 1% discharge surplus rate, reliable performance and the best reputation in the domestic tank transportation industry. Please let us know the nature and particle size, volume or density of the goods you are carrying. Weight, etc., our company designed separately for you to ensure that you will be given satisfactory results in the shortest possible time, welcome to contact us at any time!


Feature of 3 Axles 25m³ Dry Bulk Tanker Trailer Transport Lime Powder :


1 A semi-trailer used to transport cement in bulk. It is mainly used for cement plants, cement warehouses and large construction sites, which can save a lot of packaging materials and loading and unloading labor.


2 We can design separately according to the different needs of customers, or tell us that the media of the goods you carry are different, and we will design corresponding models for you to meet the individual needs of customers.


3 There are many choices of valves, discharges and lids for tank car accessories, which can be purchased according to customer habits.


Main Dimensions
Tank Body
ShapeOptional ( One Silo with V type or Two ,Three Silos Design)
Dimension12000mm*2490mm*3990mm ( Exact size depends on the final design)
Tare weightAbout 7500KGS-15000KGS
Total Volume(m3)25m³
Tanker Body Material5mm or 6mm/ Q235 carbon steel
End Plate5mm or 6mm /Q235 carbon steel
Diesel EngineWEICHAI ,Tianhe 4100/4102 or other brand
CompressorBOHAI 10m³/12 m³or other brand
Manhole CoverCarbon steel or Aluminum∮500mm
Discharging ValveDiameter is 3 or 4 inch (Material: Aluminum )
Discharging Pipe3 or 4 inch rubber hose, 1pcs, 6m/each
Cat WalkWith (Common model or special design)
Chassis
Main BeamsWelding Design ,Q345 carbon steel
Axle3 axles
Landing GearJOST (D200T)or CHINA BRAND 28T
King PinJOST 2.00 or 3.5 inch bolt-in king pin
SuspensionAir Suspension
Leaf Spring90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
Pneumatic Braking System6 relay valves; T30/30+T30 Spring brake chamber; 45L air tanks.
Rim9.00-22.5/8.00-20/8.5-20 China Brand
Tire12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is Optional
ABSOptional
PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
AccessoriesOne standard tool box
Shipping TermsBy Bulk Cargo ,RORO

Detail of 3 Axles 25m³ Dry Bulk Tanker Trailer Transport Lime Powder :

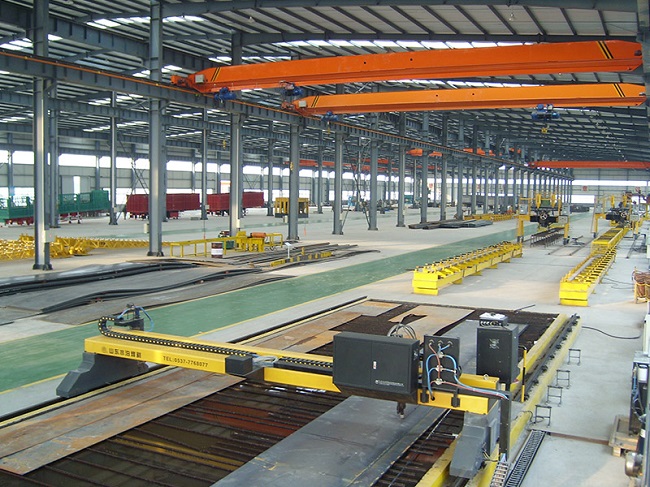

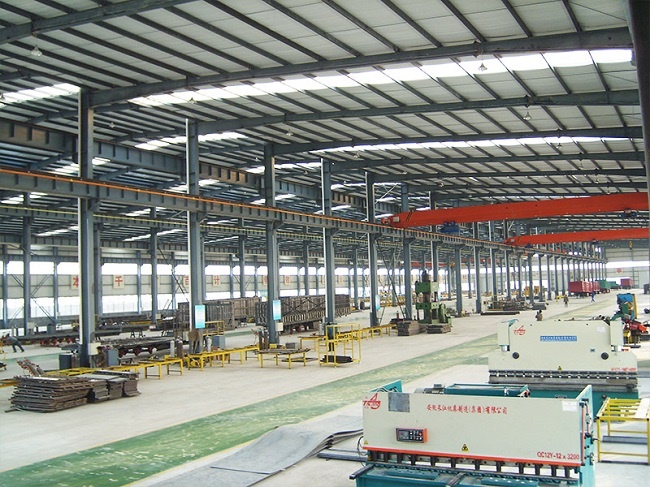

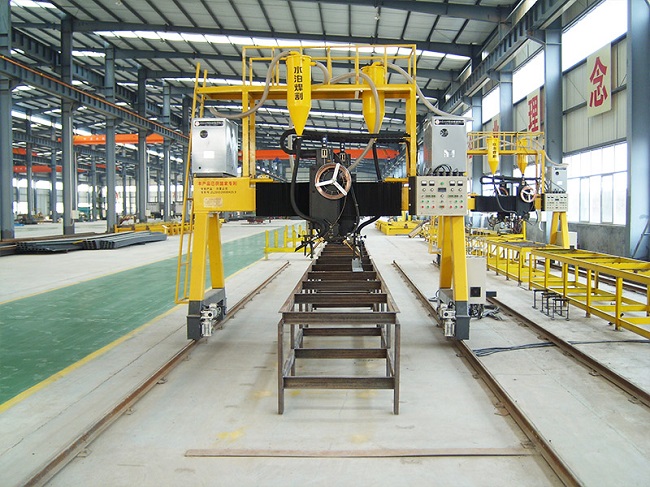

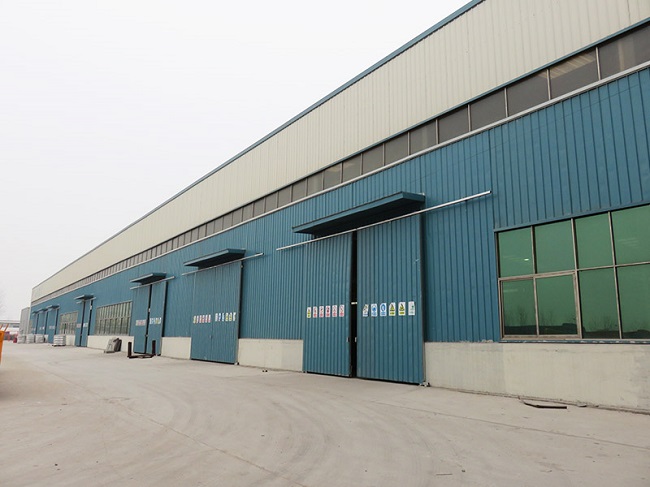

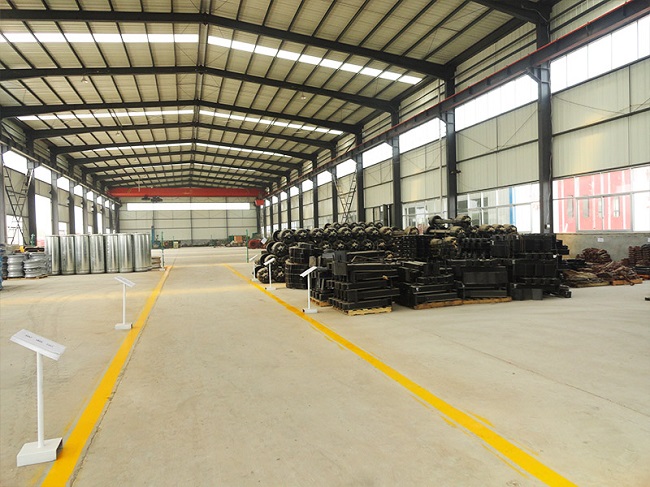

Factory show:

FAQ


Q: Why do you choose Genron?


A:11 years overseas experience:


As our more than 11 years overseas produce and exporting business experience focus on the trailer and truck filed ,We used nine years visited on Ghana, Burkina faso, Cameroon, Mozambique, Zambia, Tanzania, Kenya, Malaysia, Indonesia, Philippine, Vietnam, LAOS, Mayanmar, Algeria, Dubai


Mirror Trading:


We will gave you the best price and quality product .Because we hope our cooperation like mirror,Customer as mirror,one side is factory,inside is Genron.


We Minimize all loses that may arise from the producers.We respond to the demands and requirements of the companies, we work with in the most effective way and as soon as possible.


Professional Technical Team:


The strong advantage of Genron compare with other trading company and company is we have our own professional design team: One engineer Mr.Fanming Bu (working for CIMC company five years,design trailer and production line six years),Five technicalperson:Mr.Wenming Zhao(design tanker trailer for 11 years),Mr. Xianzhen Zhao(design welding machinery four years),Mr.Haifeng Liu(design trailer axles four years). Mr.Zuoliang Yang(design tipper trailer six years).Mr.Jihe Cao(Design tanker trailer five years).


Q: How we can cooperate (Business Partnership)?


A:As your China Purchasing Agent:


You can buy from the factory directly, we can be your exporting agent in China.


You can be Genron Sales Agent: We have our own brand and logo,we have more than three very Steady producer partners of each product which we supply to you in China,if you can be our agent in your country you will have very steady supplier no worried one factory will close down.


Q: What is Genron profit?


A: To be Purchase agent: You buy the product from the factory I help you export off china and shipping to your Country port,you should pay 5% FOB price of the goods for us. You buy from Genron or to be agent of Genron:The factory will pay us export agent fees.

Cheap 3 Axles Lime Powder One Silo 25m3 Dry Bulk Tanker Trailer for sale
