Air Suspension Front Loading Modular 40FT Hydraulic Low Bed Trailer

Categories Heavy Duty Low Bed Trailers
Brand Name: Genron
Model Number: GV060011
Certification: CE
Place of Origin: China
MOQ: 1 unit
Price: USD 15000 - 20000 per unit
Payment Terms: T/T
Supply Ability: 80 units per month
Delivery Time: 15-20 work days
Packaging Details: naked packaging
Axle: 13T FUWA Axle
Suspension: Mechanical Suspension
Valve: WABCO Brand Emergency Brake Valve
Usage: Transport Heavy Machinery
Support Leg: Standard 28 Ton
Name: Lowboy Semi Trailer
Key Word: Heavy Duty Low Bed Trailers
Loading Capacity: 20-150T
Ladder: Manual or Hydraulic Type
Bottom Platform: 3-6mm Thickness Diamond Steel Plate
Side Beam: 16mm -30mm Channel Steel
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

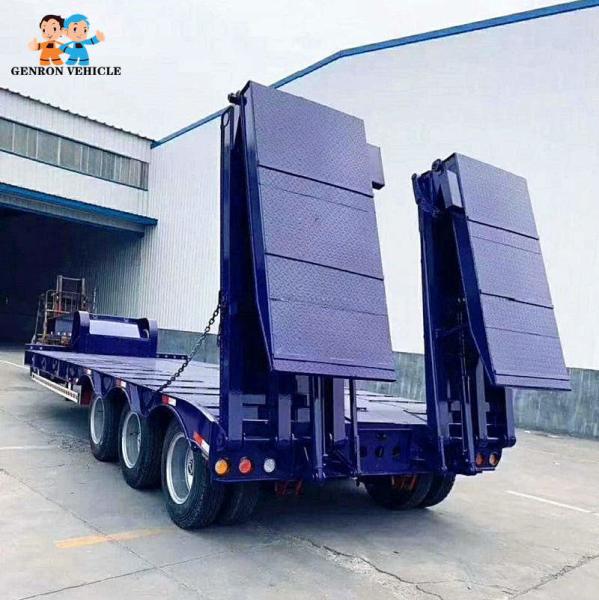

Air Suspension Front Loading Modular 40FT Hydraulic Low Bed Trailer

Cheap Price Lowboy Semi Trailer Sale In Africa Heavy Duty Low Bed Trailers


Low bed semi trailers are suitable for transporting heavy-duty vehicles such as tractors, special vehicles, rail vehicles, mining machinery, forestry machinery, and other heavy goods. This kind of trailer has a low center of gravity, which provides greater ability to transport super-tall loads and to pass through height limit roads.











Product NameCheap Price Lowboy Semi Trailer Sale In Africa Heavy Duty Low Bed Trailers
Key WordHeavy Duty Low Bed Trailers
Tare WeightAbout 8.5-13T

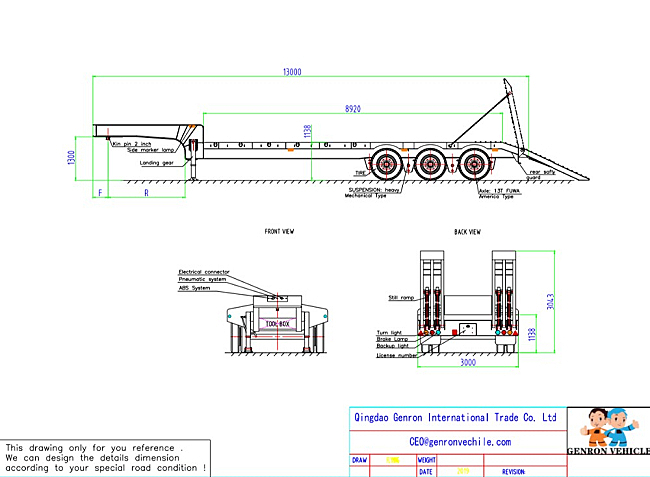

Dimension13000mm*3000mm-3500mm*1650mm (Size can be chosen freely)
Loading Capacity (T)40T-100T
Axle13 T/16T, FUWA /BPW /GV Brand
Rim6.5-20/7.5-20/8.00-20/8.5-20 (Special for export market)
Tire8.25R20/10.00R20/11.00R20/12.00R20
Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW brand ) (Special for export market)

Spring leaf

90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12

(Special for export market)

King pinJOST brand 2.0 or 3.5inch bolts type or Welding type
Support legJOST brand D200T or China brand 28Tons (Double speed)

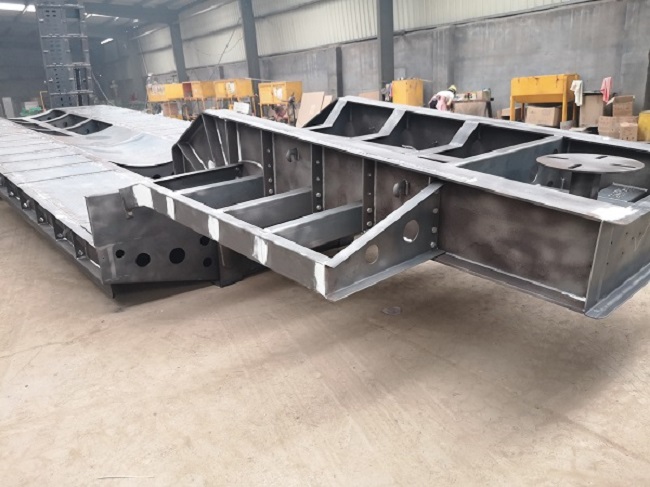

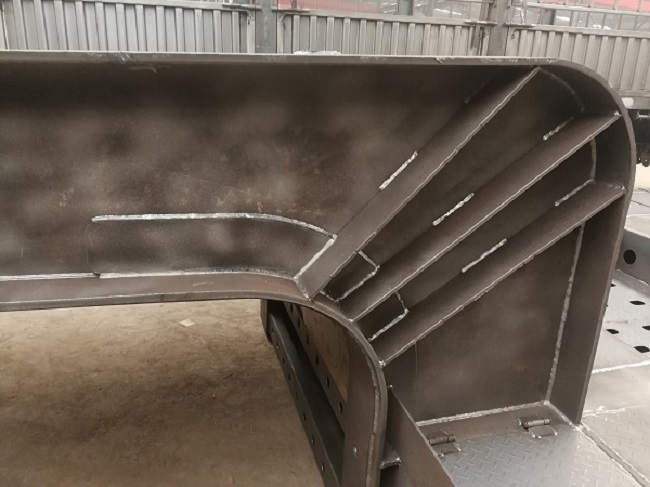

Main beam

Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm,

down plate is 16mm-25mm ; Material is Q345B Steel .

Side beam16mm -30mm channel steel ( Material is Q235steel ).
Bottom Platform3-6mm thickness diamond steel plate

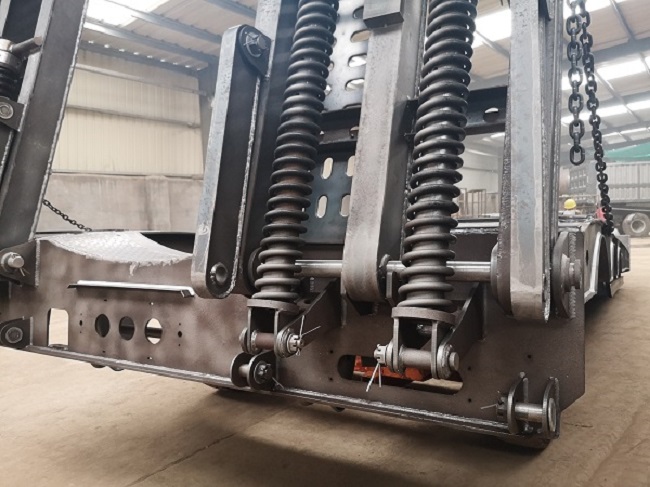

LadderManual or Hydraulic type
GooseneckFor choice
Brake chamber6 relay valves; T30/30+T30 Spring brake chamber; one piece of 45L air tanks
ABSOptional
Twist LocksFour ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
ValveWABCO valve
LightLED light (Special for export market)
Voltage24V
Receptacle7 ways (7 wire harness)
Tool boxOne piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:By bulk cargo carrier, RORO or 40HQ container



Shipping Item : A & B



A:

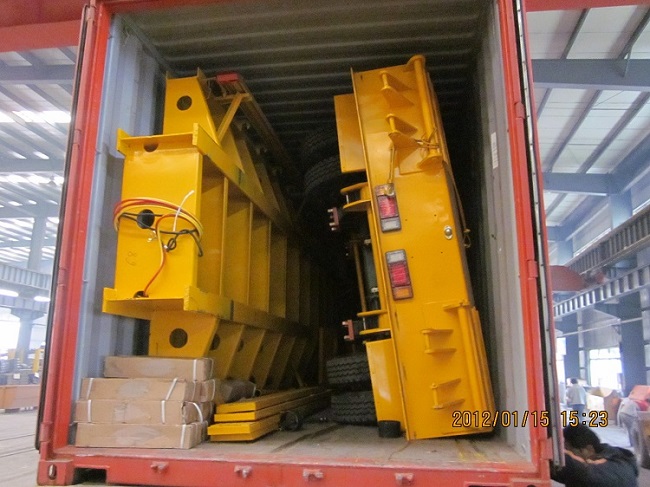

If your order is two units low bed trailer or double pieces ,you can choose put two units into one 40HQ container for shipping , we will design one tail part connected by strong bolts ,after you received the trailer you should connecting them by strong bolts first and then welding the two parts together ,Its easily work for welding man.



B:


This package for roro ship or bulk cargo ship delivery.


If your order is more than three units or 6 or 9 can be package like this .


Pls check your destination port if there is bulk cargo port near to your city.


Disadvantage : the bulk cargo fee is a little expensive than the container fee.


Advantage: no need welding ,can be work directly after you received.


Multifunctional Extendable Flatbed Semi Trailer Container Semi Trailer For Sale 15


Multifunctional Extendable Flatbed Semi Trailer Container Semi Trailer For Sale 16


Multifunctional Extendable Flatbed Semi Trailer Container Semi Trailer For Sale 17


Multifunctional Extendable Flatbed Semi Trailer Container Semi Trailer For Sale 18




Cheap Air Suspension Front Loading Modular 40FT Hydraulic Low Bed Trailer for sale
