| Categories | Dump Semi Trailers |
|---|---|
| Brand Name: | Genron |
| Model Number: | GV08002 |
| Certification: | CCC , CQC , CNAS |
| Place of Origin: | Shandong , China |
| MOQ: | 1 Unit |
| Price: | $32,000.00 - $35,000.00 / Unit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 80 Units per Month |
| Delivery Time: | 5-20 Work Days |
| Packaging Details: | Nude Packing |
| Type: | Semi Trailer |
| Material: | Steel |
| Suspension: | Mechanical suspension/ America type |
| King pin: | JOST 2.00 or 3.5 inch bolt-in king pin |
| Axle: | FUWA/HUAJING brand |
| Color: | Customized |
| Dimension: | 11280*2495*3970mm ( outside) 10500*2300*1700mm (work space ) |
| Landing gear: | JOST (D200T）or China brand 28T |
1. Improve the transportation efficiency of bulk goods transported by loader.
2. The frame and the longitudinal beam of the carriage are welded with high-quality manganese plate, and there are dustpan and rectangular box. It has high strength, strong lifting capacity, strong bearing capacity and no permanent deformation.
3. Hyva hydraulic jacking cylinder is selected, which has stable lifting performance. The longitudinal beam is made of automatic submerged arc welding. The axle and steel spring are accurately assembled by assembly machine.
4. It can be designed separately according to different requirements of customers
Product Description
3 Axles Rear Tipper Semi Trailer -- transport coal, ore, construction materials and other bulk goods
| Main Dimensions | |
| Dimension | 11280*2495*3970mm ( outside) 10500*2300*1700mm (work space ) |
| Tare weight | About 15600KGS |
| Total Volume(m3) | 37 m³ or less than 80tons |
| Side wall thickness(mm) | 6mm Q235 steel |
| Bottom plate thickness(mm) | 8mm /Q235 steel |
| Lifting system | Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder |
| Chassis | |
| Main Beams | Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel |
| Axle | 3 axles, FUWA/HUAJING brand 16tons per axles |
| Landing Gear | JOST (D200T)or CHINA BRAND 28T |
| King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension/ America type / |
| Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer |
| Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber; one piece of 45L air tanks. |
| Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
| Tire | /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
| ABS | Optional |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box |
| Shipping Terms | By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model . |
Product Details
Our Company
Qingdao Genron International Trade Co., Ltd Main Business is Exporting all kinds of trailers, trailer parts
and Man-hand Welding Machinery, Automatic Welding machinery,
Trailer Production Line Etc. We have our own factory which produce
trailers for more than 15 years, we can help you exporting other
machinery and trucks.
China as a global manufacturing center, Genron want to be your first service center in china. Genron composed by and efficient, experienced and reliable team,
has low costs, competitively priced services and reliability
reputation. We have ability to reduce risk and facilitate
procurement in the mirror trade business averment through our
comprehensive system and reliable factories.
The strong advantage of Genron company with other trading company is we have our own professional
technical design team.If you uncertain your products or your own
design,we can go to visit you ,help you checking and analysis your
market and gave you special and right design according to your
country situation. As our more than 11 years overseas visited
record and exporting business experience focus on the trailer and
truck filed ,we can gave you the right product in very short way.

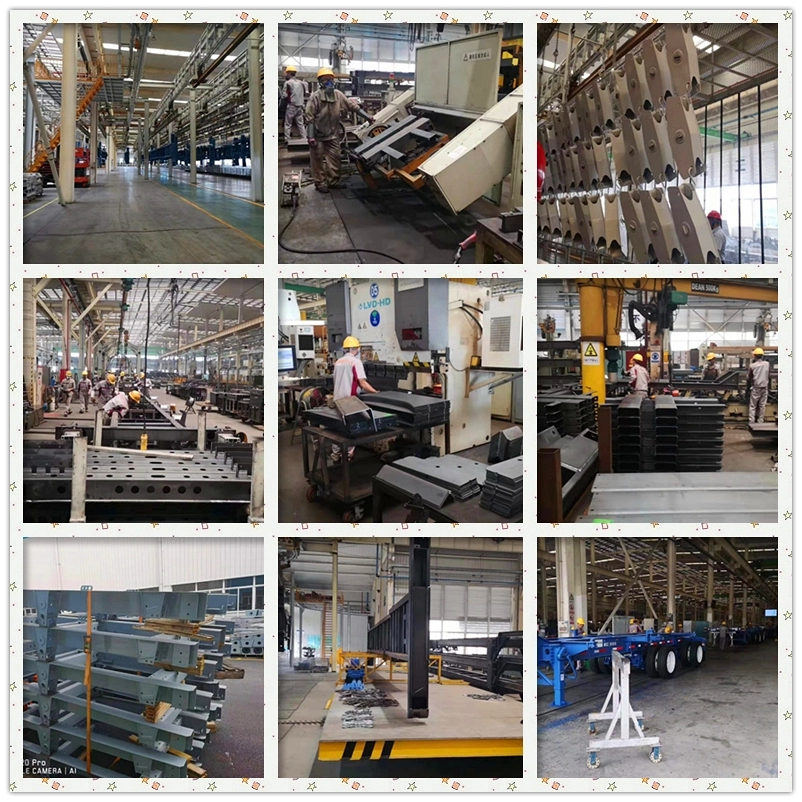

The Workshop
Cetifications
FAQ
Q:Which semi trailer brand is best in China?
A: Genron semi trailer is the top 3 in China market .We can give you a reasonable price according to the trailer quality .The best expensive brand is CIMC ( this is government company ).Genron is private company ,we can supply low price in high quality .
Q: Can you satisfy my special requirement?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q: How can I get your trailer?
A: I will shipping trailer to your port after you pay money .
Q: What’s your payment terms?
A:1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished and inspection .
2.L/C at sight .
Q: Can I paint my logo on trailer?
A: Of course, you can send me your company logo, then we will design it.
Q:How many cities have been exported ?
A:Kenya, Tanzania, Zambia, Ghana, Kazakhstan, Uzbekistan, Malaysia ,and so on.
|
