| Categories | Fedar Sublimation Printer |
|---|---|
| Brand Name: | FEDAR |
| Model Number: | FD5193E-3200 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 sets |
| Payment Terms: | T/T, L/C, D/P, Western Union, D/A |
| Supply Ability: | 50 sets per month |
| Delivery Time: | 7 WORK DAYS |
| Packaging Details: | Wooden case |
| Print head: | eps 4720 printhead |
| Print head quantity: | 3 |
| Application: | Transfer paper (28-100g) |
| Print width: | 1.9m |
| Ink: | Dye sublimation ink/Pigment ink/Water-based indoor ink |
| Ink Color: | CMYK |
| Sublimation printer dimension: | 3070*1090*1610mm |
| Rip software: | Maintop, Photoprint, neoStampa, Ergosoft |
| Top Print speed: | 120 m2/h (2 pass) |
| Warranty: | 12 months |
| Type: | Digital textile printer |
| Printer Model | FD5193E Sublimation Printer For Transper Paper Printing | |
| Printhead | Type | EPS3200 (Epson 4720) |
| Nozzle Qty | 3200 nozzles*3pcs printheads | |
| Height to Platform | 2-5mm | |
| Printing Speed | Production Mode | 2pass 120 sqm/h |
| Average Mode | 3pass 85 sqm/h | |
| High Resolution Mode | 4pass 65 sqm/h | |
| Ink | Color | C M Y K |
| Type | Dye Sublimation | |
| supply method | Siphon | |
| Max Printing Width | 1900mm | |
| Printing Media | Transfer Paper | |
| Media Transfer Method | Dual-drive tension take-up system,Auto air shaft feeding system | |
| Drying Method | External,Intelligent and air-heat Integrated drying system | |
| Moisture Mode | Fully sealed auto moisturing and cleaning | |
| RIP Software | Maintop6.0,Photoprint,Onyx,Wasatch and NeoStampa and etc. | |
| Image Format | JPG,TIF,PDF,BMP and etc. | |
| Computer | System | WIN7 64bit/WIN10 64bit |
| Hardware | Hard disk:500G (system disk more than 100G) GPU:ATI Discrete CD-ROM:DVD ROM Memory:4G or more CPU:Intel i5/i7 processor | |
| Transmit Port | Gigabit LAN | |
| Work Environment | Temperature 20-35 centi degree; Humidity 35-65% | |
| Power | Input Voltage | 210-230VAC 50/60HZ 16A |
| Printing system | 1000W | |
| Drying system | Max power 3500W | |
| Dimension | Printer Dimension | 3066*880*1553mm |
| Packing Dimension | 3070*1090*1610mm | |
| Weight | Net Weight | 380KG |
| Gross Weight | 450KG | |
Features
1. Robust integrated printer body, which is precision machined, makes sure stable movement of carriage.
2. Dual Japan THK guide rails make carriage movement more smooth and provide longer lifes.
3. New generation of high-speed print heads arranged in stagger mode with a resolution up to 3200 dpi
allows the high speed production at the speed of max. 120sqm/h.
4. Platform adopts 8mm aluminimum alloy, which can reduce the shape variables during transportation.
5. Variable dot technology, 3 sizes of dots can be generated for smoother gradation, vivid colors and sharp images.
6. Integrated feeding and take-up unit, max media loading is 1500m.

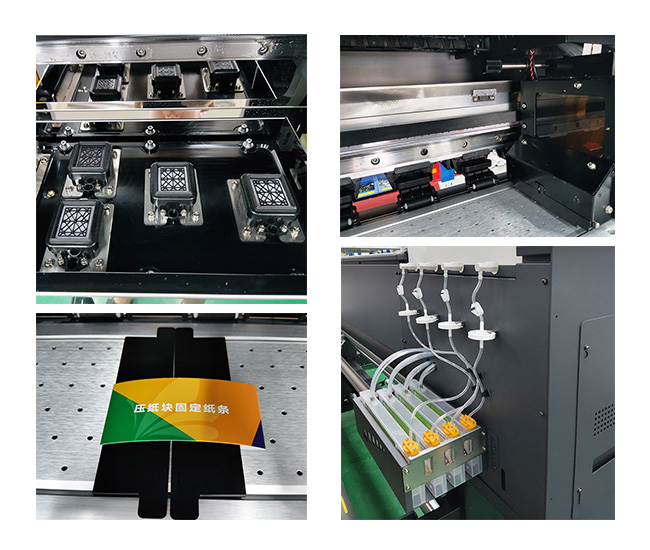

Epson 4720 printhead, adopts micropiezo technology and variable dots technology, providing vivid color output.
Staggered head distribution, giving faster speed and meanwhile convinient head position calibration.
Independant pinch roller, each roller can be lifted seperately. There is mirror plate at left side of printer which is
convinient to observe head surface.
Bulk tanks with 5L capacity providing continious ink supply. level buzzer can give alarm when ink starving.
|
