Fedar FD6198E 2000m Sublimation Paper Printing Machine

Categories Digital Inkjet Printing Machine
Brand Name: Fedar
Model Number: FD6198E
Certification: CE
Place of Origin: China
MOQ: 1 Set
Price: USD13000-15000/SET
Payment Terms: T/T, D/P, D/A, L/C
Supply Ability: 100 sets per months
Delivery Time: 10-15 DAYS
Packaging Details: Standard Wooden Box
Head: I3200 - A1
Head Quantity: 6 or 8
RIP Software: Neostampa, Photoprint, Ergosoft
Print Port: Ethernet WLAN Port
Loading System: 2000m
Ink: CMYK
Ink Type: Sublimation Ink, Water Based Pigment Ink
Print Width: 1.9m
Warranty: 1 Year
Application: Sports wear, home textile, bed sheet printing
Printable Media: Mainly for Transfer Paper
Type: Inkjet Printer Printing machine
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

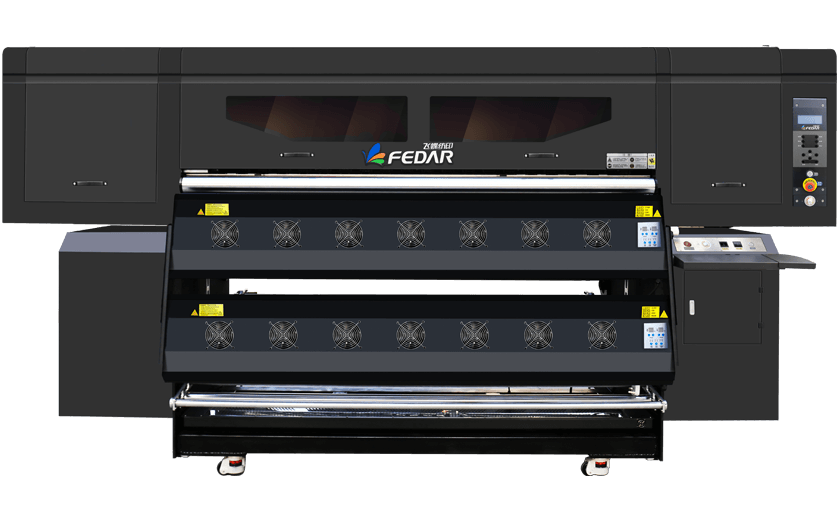

Fedar FD6198E 2000m Sublimation Paper Printing Machine

Fedar Digital Inkjet Printing Machine For Transfer Paper Printing

Core Component: Printhead

1. Orignal I3200 Printhead from Japan


Why I3200 head is widely used on sublimation field rather than DX5?


1. Epson I3200 printhead has 8*400=3200 nozzles / Epson Dx5 head has 8*180=1440 nozzles
More nozzles mean higher speed.

2. Printhead Ignition frequency: Epson I3200--16.7K, Epson Dx5---14.4K

Ignition frequency means the dots sprayed from nozzles on media at unit interval time. Higher ignition

frequency means faster speed.


3. Printhead nozzle dot: Epson I 3200---3.8pl-7pl-12pl, Epson dx5---3.5pl-6pl-12pl
Smaller dots can accumulate and form more different sizes of droplets and generate more
gradation.


4. Electronic board

Electronic boards greatly determine the printing speed and printer stability, AT boards are used on Fedar

printer for many years, excellent stability has won the favor from global customers.


Fedar Digital Inkjet Printing Machine For Transfer Paper Printing
PrintheadEpson i3200Nozzle Quantity3200
Printhead Quantity8(*6 is optical)Print Width1900mm
Ink ColorCMYKPrint Height2-5mm
Resolution360*1200/360*1800/
720*1200/720*1800(DPI)
Media TransferAuto Media Feeding and
Taking-up System, Roll to Roll
Speed
*Tested on linear printing without feather function
2pass300㎡/hDrying MethodExtra Dryer Device
4pass200㎡/hInk Supply MethodSiphon Positive Pressure Ink Supply
6pass150㎡/hHead Moisture
Method
Auto Head Cleaning and Moisturize
*speed is tested on full-size media
without feather function
Print MediaTransfer Paper
Ink TypeSublimation Ink,
Water based Pigment Ink
Transmission
Interface
Gigabit LAN
Computer SystemWin7, Win8, Win10File FormsTIFF, JPG, EPS, PDF, etc.
Operate EnvironmentTemp.:15℃-30℃, Humidity: 35℃-65℃RIP SoftwareNeoStanpa,Ergosoft,
Onyx,Photoprint,Maintop
Package Size3900*1340*1920mmPower Supply210-230V, 50/60HZ, 16A
Print Power: 1500W
Dryer Power: Max.9000W
Computer ConfigurationHard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I5/I7, Gigabit LAN
Standard ConfigurationInk Level Alarm System

Why FD6198E Model is Popular?


1. Max load 2000m tranfer paper with inflatable roller


2. Industrial integrated body design, which looks more robust and keeps the stability of printer during high

speed movement of carriage.


3. Whole integrated body design, providing print resolution and stability.

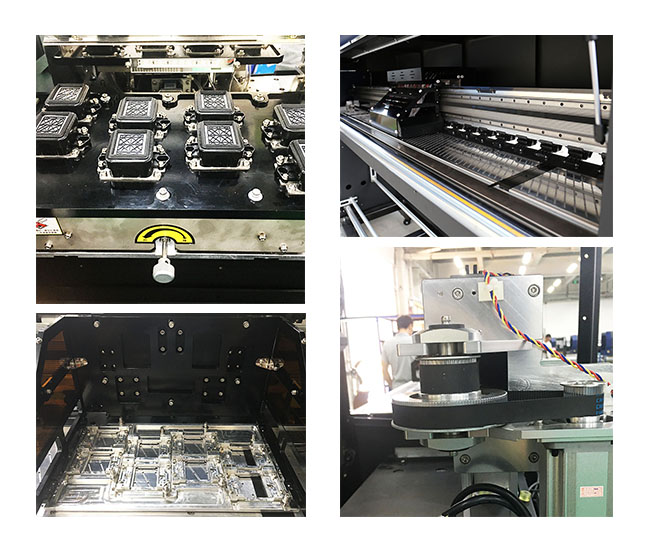

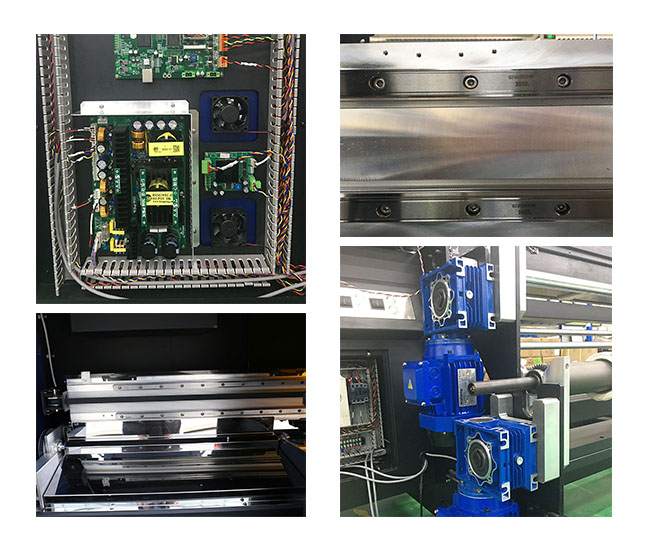

Features


1. Add Anti-Collision system to protect printhead.


2. Industrial taking up media and feeding media motor.


3. Adopt double THK guide rail on transfer paper printing machine


4. Stronger aluminum beam and ensure print resolution.


5. Tidy connect wires design, which is more easier to do maintenance.


6. Support 45 gsm transfer paper printing solution.

Application


This model can support print different gsm transfer paper, 45gsm to 100 gsm, and transfer on polyester

(contton<30%),which is a good choice on home textile, garment printing.
