10A/20A/30A/40A/50A/60A 12V 24V LCD Display Dual USB 5V Output Auto Solar Charge Controller PWM Controllers

Categories Electrical Components
Certification: CE ,Rohs
Place of Origin: China
MOQ: 100pcs
Payment Terms: Paypal ,Western Union or T/T, MoneyGram
Supply Ability: 10000pcs/month
Delivery Time: 3-5 days after confirm your payment for sample order or according to your order quantity
Packaging Details: Color Box
Model Number: RBL-10A
Type: PWM

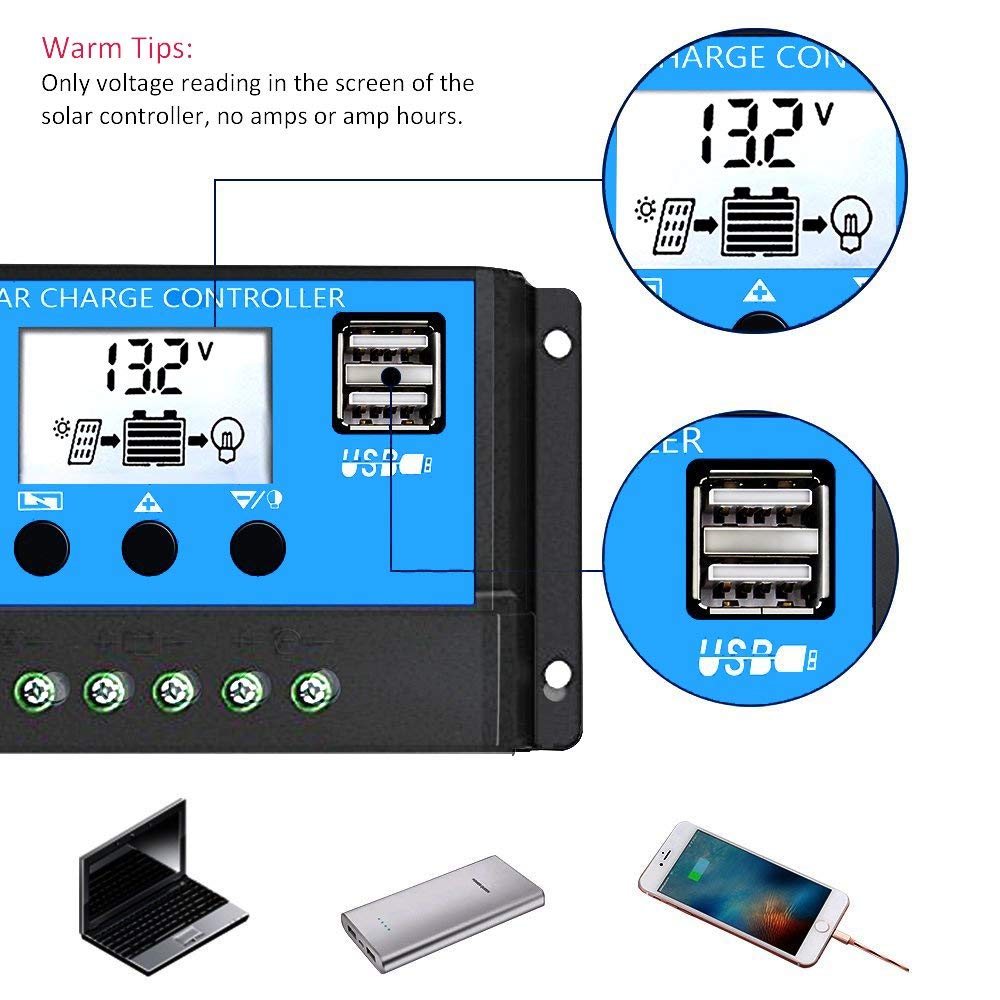

Display: LCD Display
System Volatge: 12V/24V Automatic Recognition
USB output: 5V/3A
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

10A/20A/30A/40A/50A/60A 12V 24V LCD Display Dual USB 5V Output Auto Solar Charge Controller PWM Controllers

Features :

1.Build-in industrial micro controller.

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.
Specification :
RBL-10A , Max Voc : 24V (12V), 48V (24V); Max Power: 120W (12V), 240W (24V)
RBL-20A , Max Voc : 24V (12V), 48V (24V); Max Power: 240W (12V), 480W (24V)
RBL-30A , Max Voc : 24V (12V), 48V (24V); Max Power: 360W (12V), 720W (24V)
RBL-40A , Max Voc : 24V (12V), 48V (24V); Max Power: 520W (12V), 1040W (24V)
RBL-50A , Max Voc : 24V (12V), 48V (24V); Max Power: 650W (12V), 1300W (24V)
RBL-60A , Max Voc : 24V (12V), 48V (24V); Max Power: 780W (12V), 1560W (24V)

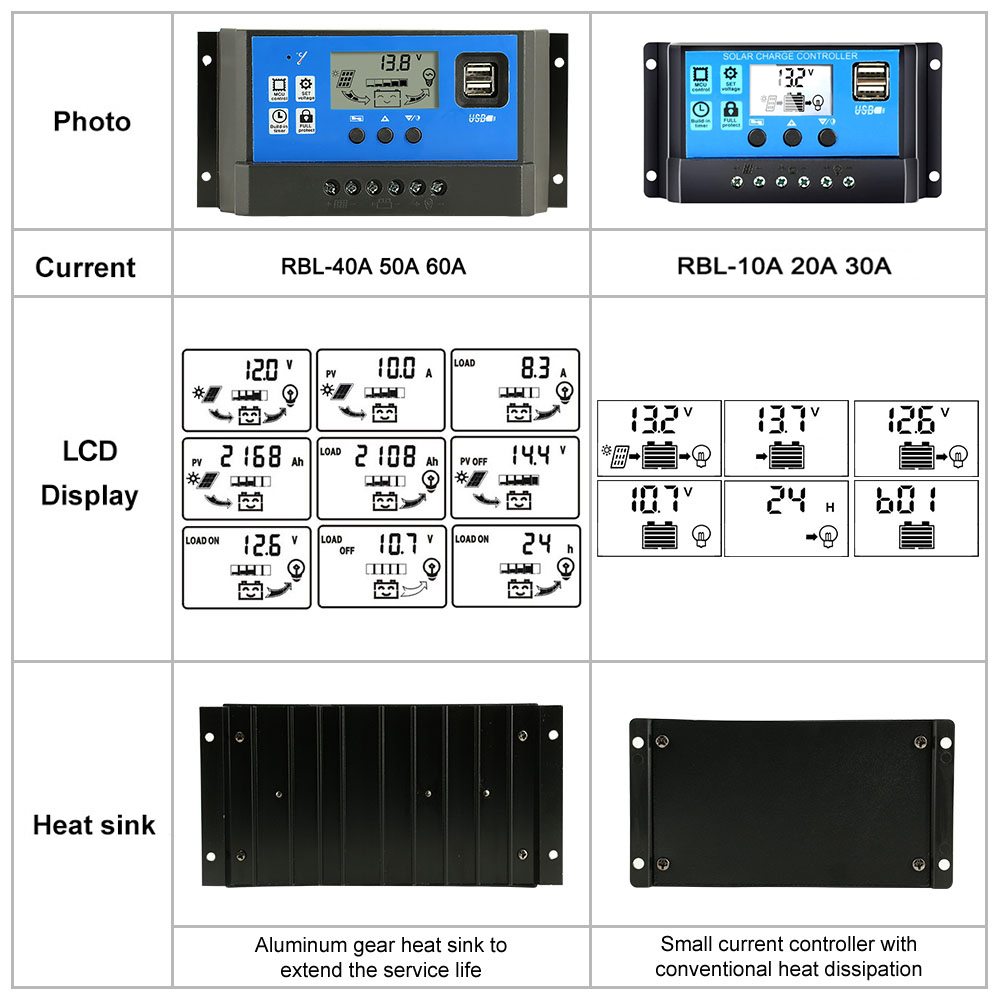

MODELRBL-10ARBL-20ARBL-30ARBL-40ARBL-50ARBL-60A
Battery Voltage12V 24V Auto
Charging Current10A20A30A40A50A60A
Discharging Current10A10A10A20A30A30A
Max Solar input48V(for 24V battery) 24V(for 12V battery)
Equalization14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
Float charge13.7V(defaul,adjustable)
Discharge stop10.7V(defaul,adjustable)
Discharge reconnect12.6V(defaul,adjustable)
Charge reconnect13V
Voltage of open lightSolar Panel 8V(Light lights delay)
Voltage of close lightSolar Panel 8V(Light off delay)
USB output5V/3A
Self-consume<10mA
Operating temperature-35°C~+60°C
Size133.5*70*35mm188*90*47mm

*all red color voltage X2 ,while using 24V system.


Connection :


1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!
