| Categories | Solar Cell Panel |
|---|---|
| Brand Name: | Yingli/Jinko |
| Certification: | ISO9001/CE |
| Place of Origin: | China |
| MOQ: | 50 Pieces |
| Price: | Negotiation |
| Payment Terms: | T/T、L/C、West Union |
| Supply Ability: | 5000000 Watt/Watts per Month |
| Delivery Time: | Shipped in 7 days after payment |
| Packaging Details: | In well protected carton or wooden box with pallets. 26pcs per pallet, 380pcs fill into 20GP, 820pcs fill into 40HQ |
| Output Tolerance: | +-3% |
| Sun Transparency: | 40% |
| Specification: | 60/72pcs |
| Color: | Blue/Black |
| Condition: | New/Used |
| Frame: | Aluminium |
| Warranty: | 25Years |
| Cell size: | 6 inch |

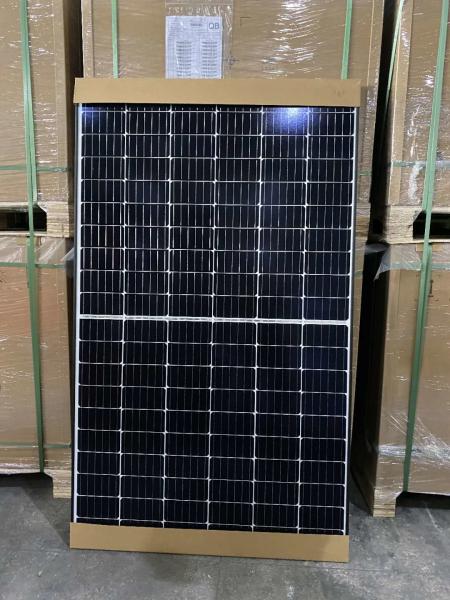

260-360W High Quality Solar Cell Panel for Home Solar Power System
Technical parameter
| Maximum Power(W) | 360W |
| Optimum Power Voltage(Vmp) | 30.3V |
| Optimum Operating Current(Imp) | 8.29A |
| Open Circuit Voltage(Voc) | 36.76V |
| Short Circuit Current(Isc) | 8.91A |
Mechanical Characteristics
| Cell Type Monocrystalline | 156x156mm (6 inch) |
| No of Cell | 60 (6x10pcs) |
| Dimensions | 1640x992x45mm |
| Weight | 18.6KGS |
| Front Glass | 3.2mm,High Transmission, Low Iron,Tempered Glass |
| Junction box | IP65 Rated |
| Output Cable | TUV 1x4.0mm2/UL12AWG,Length:900mm |
Temperature and Coefficients
| Operating Temperature(°C) | -40°C ~ + 85°C |
| Maximum System Voltage | 600V(UL)/1000V(IEC) DC |
| Maximum Rated Current Series | 15A |
| Temperature Coefficients of Pmax | -0.47% |
| Temperature Coefficients of Voc | -0.389% |
| Temperature Coefficients of Isc | 0.057% |
| Nominal Operationg Cell Temperature (NOCT) | 47+/-2°C |
Materials of solar panel
1).Solar Cell------Mono-crystalline solar cell 156*156mm
2).Front Glass-------3.2mm, high transmission, low iron, tempered glass
3).EVA-------excellent anti-aging EVA
4).TPT-------TPT hot seal made of flame resistance
5).Frame------anodized aluminum profile
6).Junction Box-------IP65 rated, high quality, with diode protection
Superiority: high quality anodized aluminum frame, high efficiency long life,
easy installation, strong wind resistance, strong hail resistance.
Quality assurance testing
Thermal cycling test
Thermal shock test
Thermal/Freezing and high humidity cycling test
Electrical isolation test
Hail impact test
Mechanical, wind and twist loading test
Salt mist test
Light and water-exposure test
Moist carbon dioxide/sulphur dioxide
|
