Single Arm NC 5 Axis Rotary Table For Precision Parts Machining

Single Arm NC 5 Axis Rotary Table For Precision Small Parts Machining T100

Product Description

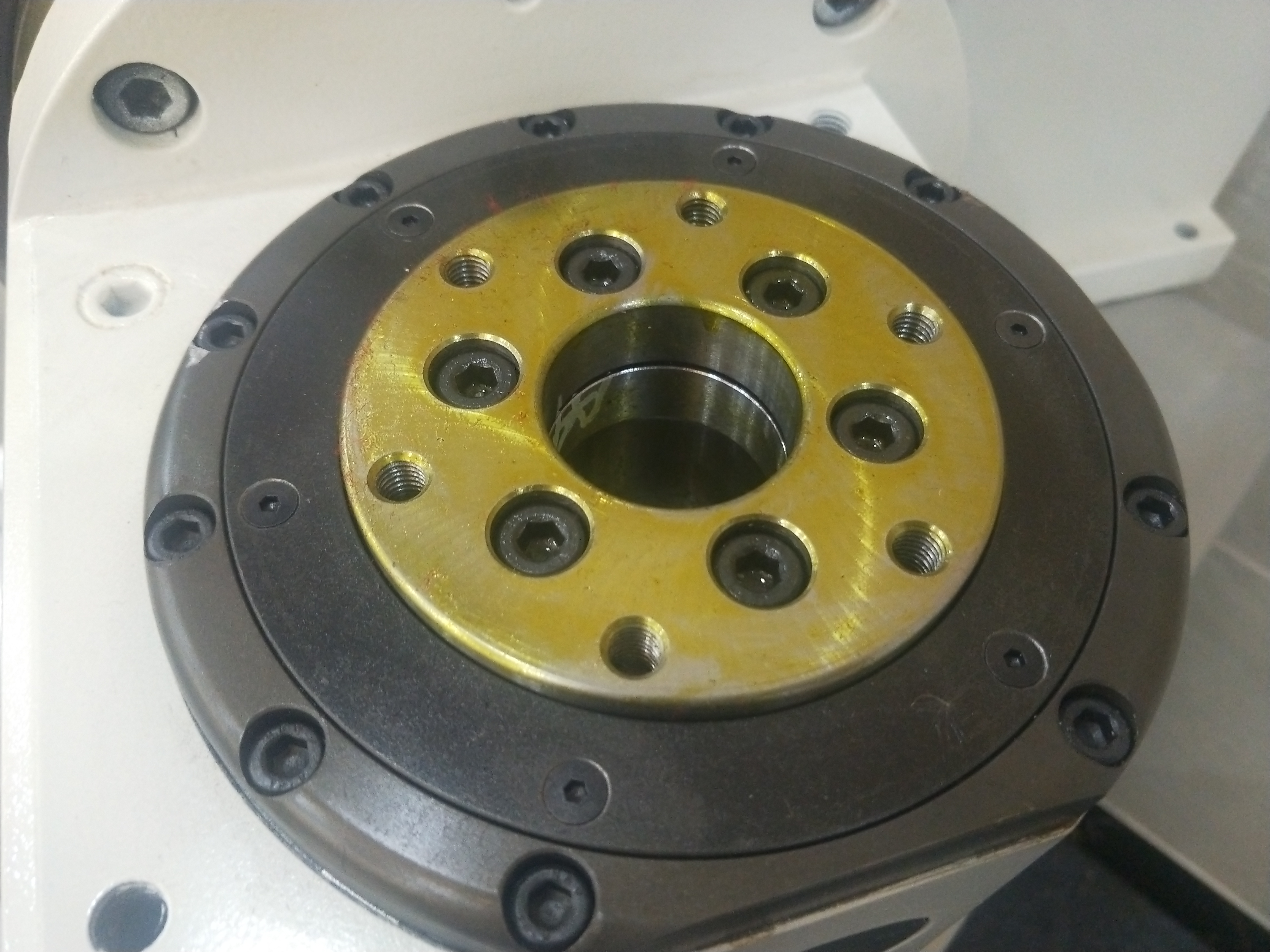

Silvercnc single arm T100 five axis rotary table, using double roller CAM deceleration structure, The Roller Driver uses the roller gear mechanism,oneof the finest motion control mechanisms available.

The unit is constructed from an input shaft(the roller gearcam) and a turret(output shaft)fited with roller folowers. The roller followers are preloaded against a screw-like input shaft to completely eliminate backlash. Our proprietary adjustment mechanism provides optimum preload. The roller folowers planted in the turrt use internal roler bearings to transfer torque whle rotating. This ensures zero backlash, outstanding precision, and excellent efficiency without causing wear, while providing long-term consistent accuracy.

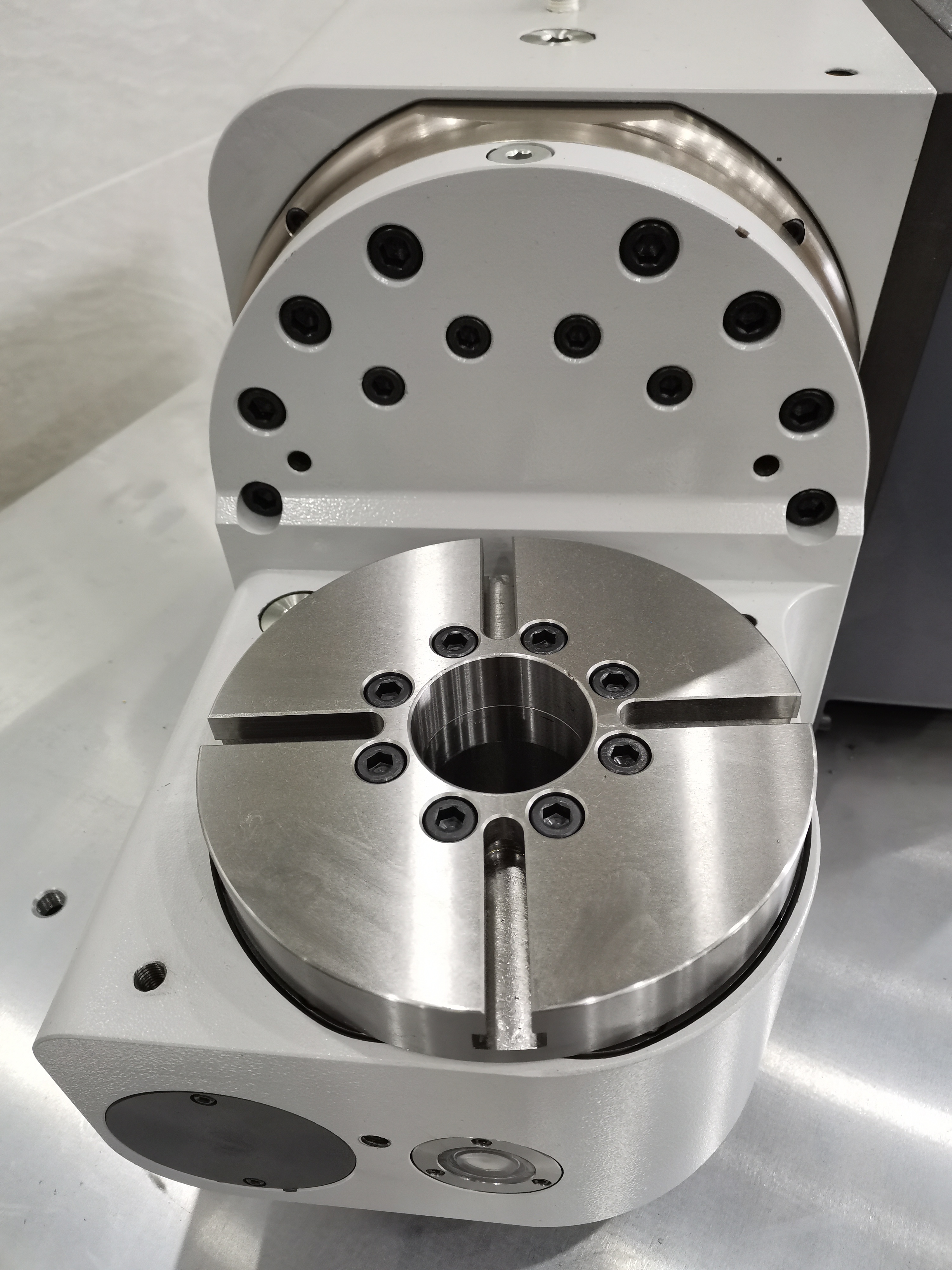

the 5 aixs rotary table have small volume, good rigidity, with excellent precision and excellent durability.The product can cooperate with the customer's machine tool design, save space, and can provide 20°~-120° tilt Angle, show the multi-axis tool machine surface processing application.

Product Parameters

Description		unit	SILVER-T100
Table Diameter		mm	100
Center Height (Vertical)		mm	202
Diameter of Table Central Hole		mm	40H7
T-Slot		mm	/
Allowable Workpiece Load	Vertical	kg	20
	Horizontal	kg	30
Net Weight (servo motor excluded)		kg	120
Axis		/	Rotary axis	Tilt axis
Cooling System		/	Free Colling
Transmission Mechanism		/	Roller Gear Cam
Angle range		/	360°	20°~-120°
Min. Increment		deg.	0.001	0.001
Speed Reduction Ratio		/	1/48	1/60
Rated / Max. Speed		rpm.	60	50
Indexing Precision		sec.	±30	±40
Repeatability		sec.	±4	±4
Clamping System(Hydraulic)		Mpa	/	/
Clamping Torque		N.m	/	/
Servo Motor Model	FANUC	Taper / Straight	αis2 /βis2	αiF4 /βis4
	MITSUBISHI	Straight	KP43	KP73
	BROTHER	Straight	R2AA08075	R2AA08100
	YASKAWA	Straight	SGMGV-04A	SGMGV-08A

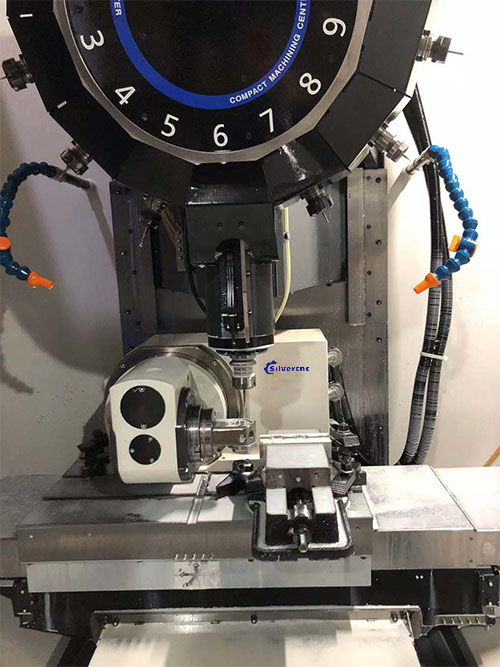

Product Application
Widly used in military, aerospace and medical products machining which have the characteristics of complex shape, small batch, different parts specifications, high reliability requirements, tool machine manufacturers must provide equipment and components that can reduce the process, reduce the cost and rapid processing, this small five-axis is the first choice

FAQ:

Q1. Can you provide training for Installation and commissioning?

A. Yes, free training in our factory is available.

Q2. How about your price?

A. Send me details about what you need, pease do tell me the model of the machine control system, you will get the best price. The price is

competitive over the world.

Q3. What's your warranty terms?
A. We will supply a replacement for parts that prove to be defective for a period of 12 months,

starting on the machine’s bill of lading date. Extended warranty is available at the time of

purchase. Please contact your sales representative for details
