API Solids Control System ZJ Rig Drilling Fluid System

AIPU fluids system for ZJ seires oil rig during oil and gas drilling or exploration

General information on drilling fluids system for ZJ rig

The main equipment and configuration is same with all complete solids control system. Including shale shaker, degasser, mud cleaner, decanter centrifuge, centrifugal pumps, mixing hopper and the shearing pump, mud agitators, mud guns. mud tanks, the electrical control system, lighting system. Among the equipment, the shale shaker is the first equipment in the whole fluids system. The degasser can be vacuum degasser or the centrifugal degasser. Regards the mud cleaner we suggest the 3 in 1 design or the separated desander and desilter mounted on large bottom shaker fit with 4 panels of screen. Considering the large flow rate requested in drilling fluids system we design large size mud tanks so we'd better select APMA11 mud agiator or APMA15 mud agitator. Mud centrifuge including middle speed APLW centrifuge and the high speed APGLW centrifuge. The feeding pumps for centrifuges can be submersible or the screw pump.

Oil drilling rig ZJ means the rig can drill the well for oil and gas field to explore the energy source. It can be used to explore deep energy source under ground. Nowadays, we find the oil well depths is higher and higher. That is a reflect on our advanced technology and the development after decades.AIPU Solids control manufacture high quality solids control system for ZJ90 drilling rig. We are professional manufacturer on solids control related products. ZJ90 is presently the land rig requesting most drilling mud flow rate.

The centrifugal pump for mud cealner and the mixing hopper are all mechanical sealed and durable type. The pumps are high quality and interchangeable with famous brand for easy outsource in the future maintenance and repair. The mixing hopper is Venturi hopper to eliminate the fish eye for better compounding result.

Shearing pump can be also combined with Venturi hopper together as the jet shearing pump. The mud guns will be NJQ80-3 for better jet mixing result for whole drilling mud system. For mud tanks and equipment detail please find below contents.

Aipu Solids Control is one of the earliest manufacturers in solids control equipment in China. As it focuses on the solid control industry and has a professional technical team, its solid control system soon received good feedback from the end customers and was widely applied to the oil field

Oil well drilling mud solids control system is very important for drilling efficiency enhance and cost-save. Whole drilling mud system including the shale shaker, degasser, mud cleaner, centrifugal pump, decanter centrifuge, mud agitator, mud gun, jet mud mixer, and etc.

AIPU Solids Control manufacture ZJ and ZJDB series rig mud solids control system with standard solids control equipment, but also customized mud tanks layout for your drilling application.

Detail information of drilling rig mud system

To buy the ZJ90 rig drilling fluids solids control system from AIPU,the solids control equipment manufacturer directly you’ll save at least 20% cost for the total mud system package,we also provide services for training clients' staffs for commissioning and operating of the whole mud system.

The complete line mud system for drilling rig usually have the following main solids control equipment.

• Hunter-D4 or Hunter-MG4 Linear Motion Shale Shaker
• HunterMud cleaner
• APSB Centrifugal Pump used as cleaner feeding pump, the mixing pump, the charge pump
• APSB Trip pump
• APSLH150-50 Jet Mud Mixer
• Mud Tanks. Including the processing tank, intermediate tank, mixing tank, reserve tank, water tank, diesel tank, and so on
• APMA series Mud Agitator and NJQ80-3 Mud Gun etc.
• Mud gas separator/poor boy degasser
• Flare ignition device

For a large complete mud system there should be processing tank, active tank, reserve tanks, water tanks, diesel tank, and so on. These tanks will be the support platform for all of equipment listed above. It doesn't matter what and how do you like to configure the system AIPU Solids will help you get the optimal proposal very soon

We not only keep innovating the leading drilling mud purification technology, but also we put them into production. In the manufacture of products: we are strict with the process and technology based on the quality management system standard. We have various production equipment to ensure product quality stability according to the product requirements. In testing the product: We use advanced detection equipment for product testing with the provisions of the international industry standards, and serious tests to ensure that all products are qualified before leaving the factory. Moreover,our drilling mud purification system technology is oilfield projects proved. Many of our customers repeat their solids control service from us.

In case you need a complete mud system can be used in the well drilling fluids process, please find below file as a reference when you select equipment for oil drilling ZJ rig fluids solids control

In the field of oil and gas drilling, As a domestic professional manufacturing company of drilling solid control equipment, AIPU can manufacture the solids control system or equipment forZJ90, ZJ70, ZJ50, ZJ40, ZJ20 work over rig. And there are a number of successful application cases at home and abroad. Just feel free to contact us get more useful information about AIPU

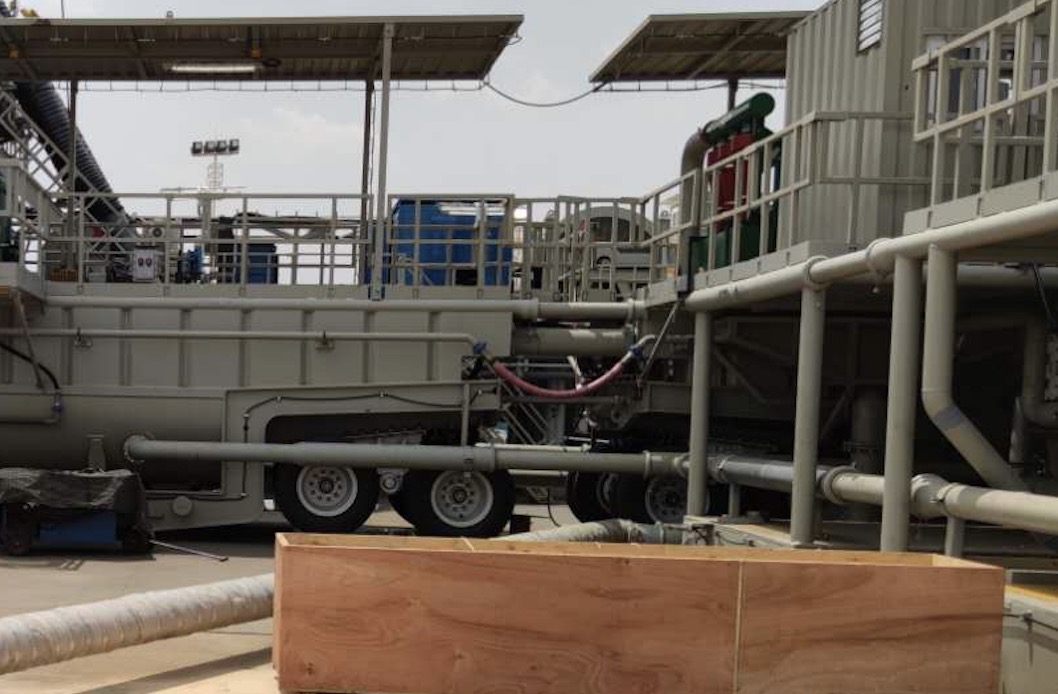

No matter for onshore or offshore drilling and no matter for oil and gas exploration, the solids control for drilling fluids is important to control the cost and get more reasonable profits. Please come to AIPU for any question or interest. Attached pictures for your reference. These are trailer mounted tanks we fabricated for a drilling rig manufacturer and finally delivered overseas last year.

AIPU Solids control is professional manufacturer on solids control equipment and system. The solution for drilling mud process as well as the drilling waste management, and the oli sludge treatment system.

All items can be used in oil and gas drilling, the oil sludge treatment, the HDD mud recycling, the civil construction micro tunnelling, the piling and so on. The main equipment inlcuding solids control system, shale shaker, mud cleaner, centrifgue decanter, degassers, agitator, mud gun, centrifugal pumps, mud tank, cuttings dryer, the mud cooling system and so on.

Pleased to say AIPU products have been delivered to many regions and conturies around the world. Including Germany, Russia, USA, UK, Kuwait,  UAE, India, Indonesia, Malaysia, Singapore, Taiwan, and so on.

Our hot sales product Hunter series shale shaker is rather popular with all of our clients. The Hunter-MG and Hunter-D shale shakers can be configured as linear motion, BEM or the dual motion. For the decks, they can be double deck. For the base, they can be dual tandem or triple tandem

Another hot sales products Hunter seires mud cleaner is maintained all the good features of Hunter series shaker. And the hydrocylones are all made of high quality polyurethane. Another feature is the cones are interchangeable with famous brand ones.

Besides the shale shaker and mud cleaner, there are centrifugal pumps, mud agitators and so on equipment appreciated by our clients. New innovated mud cooling system for land oil drilling is a patented products used in SINOPEC drilling site. The performance surprised end users.

Why clients select AIPU?

It's because of high qualty and the reasonable cost happened during our cooperation. We are professional on solids control, mud process, sludge treatment. Among all the orders there are over 80% orders are repeat orders from our regular clients or recommned by them

Are you in the demand of solids control or other mud treatment-related items now? Please come to us freely. Trust you will be surprised by AIPU products and servcies. All the solutions will be optimal and soonest one.
