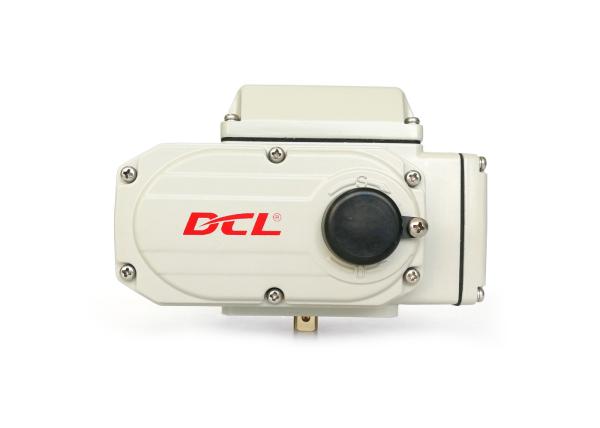

Position Transmitter Dampers 140W 3 Phase Electric Actuator

3 phase electric actuator with position transmitter / 4-20mA full range output for valve

Description

DCL F model electric actuator is equipped with self-developed position transmitter to output 4-20mA analog signal of valve position. It can be widely used in 3-point floating control system to drive quarter turn butterfly valves, ball valves or dampers. This kind of control system can obtain continuous analog signal of valve position signal to decide when to cut off power or reverse power direction.

The duty cycle of actuator is 70% or higher, For on-off type, actuator can keep working for 20mins without stop. For modulating type, actuator can start 1200times/hour. Whole full range open & close life cycle is over 10000 times and 200000 times start up.

Actuator has been rigorous tested by CSA per UL and CSA standard. The duty rate can be over 70% for all series. The EPS system is self-calibrating which virtually eliminates "hunting" and provides an output position monitoring signal as standard.

Features

• Self-developed position transmitter to output 4-20mA signal of valve position
• High quality alloy steel sleeve and ball bearings, all metal gear drive
• World leading anti-interference ability, control accuracy and sensitivity
• Heavy duty motor with thermal overload protection
• Heavy duty motor with 70% duty cycle for severe applications
• Weather proof aluminum alloy enclosure with thermally bonded polyester coating
• Self-calibrating and problem self-checking function
• Manual override
• Standard ISO5211 multi-flange valve mounting
• CSA listed per UL standard/CE marked/RoHS 3.0

Founded in 2001, Dynamic Corporation Limited(DCL) is a national high-tech enterprise, which is engaged in R&D, manufacturing and sale of Electric Actuator, Electric Valve and its Automation Control System. The main leading product, DCL Series Electric Actuator is featuring the compact construction, exquisite appearance, smart control, remarkable performance,easy operation and so on.

DCL series electric actuators are widely used in various industrial field, such as HVAC, refrigeration, petroleum, chemical, electric power, smelting, energy, pharmaceutical, paper-making, water treatment, food, brewage, shipbuilding and combustion system etc. DCL has estabilished stable partnership with lots of world leading companies in each industry to provide best flow control solutions. Every year, DCL also exports over 10000 units self-produced electric actuators and electric valves to USA and Germany.

In the past 19 years, DCL has winned high trust-worthy from customers. Many customers with many years practices confirm that our products are outstanding in stable quality, reliability, durability and after-sale service.

1. Manufacture per ISO9001:2015 standard with certification

2. Products are CE marked/ATEX marked with QAN by SGS group

3. Products are certificated per UL and CSA standard by CSA group

DCL does not only provide good quality products, but also present responsibility to the society and community. All our employees regard quality first. Quality control has a long uninterrupted way to go. Quality first is our management culture and the foundation of our company.
