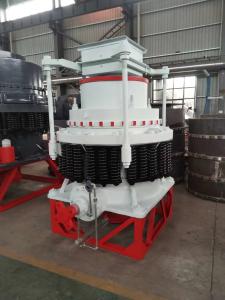

Iron Ore Stone Compound Cone Crusher

Granite river stone hard rock cone crusher machine

Cone crusher is a type of crushing machine suitable for raw materials in the metallurgy, construction, road construction, chemical, and silicate industries. According to different crushing principle and particle sizes of different products, the cone crusher is divided into many models. The cone crusher is widely used in many industries such as mining, smelting, building materials, roads, railways, water conservancy, and chemical industries.The cone stone crusher has a large crushing ratio, high efficiency, low energy consumption and uniform product size. It is suitable for medium and fine and rocks crushing.

Working principle

The motor drives the eccentric shaft and sleeve rotating through the V-belt, the large pulley, the transmission shaft, the bevel gear, and the large bevel gear.

The eccentric force of the eccentric shaft and sleeve will cause the movable bowl liner move up and down againt the fixed bowl liner. Then the stone will be squzzed and crushed into small particles between the gap between mantle and concave.

Features and advantages of Symons cone crusher

• 1. Large Production Capacity and High Crushing Efficiency

• 2. Laminated Crushing Cavity, Uniform-sized, and Cubic Product, Low Energy Consumption.

• 3. A Variety of Cavity Types to Meet Various Demands in Granularity Types.

• 4. Simple Structure, Easy to Maintain, Low Running Cost.

• 5. Fully Automatic Control to Ensure Safe Operation of Equipment.

•

• The maintenance and application tips

• Lubrication oil station should be turned on and make sure that the system has been already lubricated and then turn on main engine. After crusher idling normally, switch on feeding machine.
• The crusher should stop feeding before stopping, and the mine should be all crushed and discharged, and then the circular vibrating and screening locomotive can be stopped, and finally closing the oil pump of the lubrication oil station.
• Before turning on pump of lubrication oil station, open the oil and water valve and turn on pressure gauge lubrication oil station.
• Adjust the pressure regulator so that the oil supply pressure is within the range of 0.08 to 0.2 MPa, and the oil temperature should be within the range of 30℃to 45℃. If the oil temperature is too low, turn the resistance heater to heat the oil.
• For the function of each electrical switch, please refer to the circuit description, and all the switches should be kept in the appropriate place.

Cone crusher Spare parts

Product specifications

Customer working site

Henan Ascend Machinery & Equipment Co., Ltd. （Pingdingshan Xingyang Resource Recycling Co.LTD）was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.

The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 60 countries and regions.

Focused on product quality and after-sales service, Ascend has won widespread praise and trust of international customers. The company has a professional engineer team responsible for the pre-sales technical consultation, technical solutions in the process of sales, installation, commissioning and after-sales service to ensure that customers can purchase and use equipment with peace of mind.
