| Categories | Insulation Anchor Pins |
|---|---|
| Brand Name: | Huihao |
| Model Number: | lacing anchor |
| Certification: | ISO9001-2015 |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 500000 pcs per 15 days |
| Delivery Time: | 15 days after the payment |
| Packaging Details: | paper carton + wood pallet |
| Material: | stainless steel 304 |
| Head: | 7/8" as standard |
| Spindle Dia: | 12ga or 14ga As Standard |
| length: | 2-1/2" or 4-1/2" as standard |
| Head thickness: | 1mm |
| application: | fixing insulation blankets, thermal covers |
| Company Info. |
| Huihao Hardware Mesh Product Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
Materials: stainless steel 304

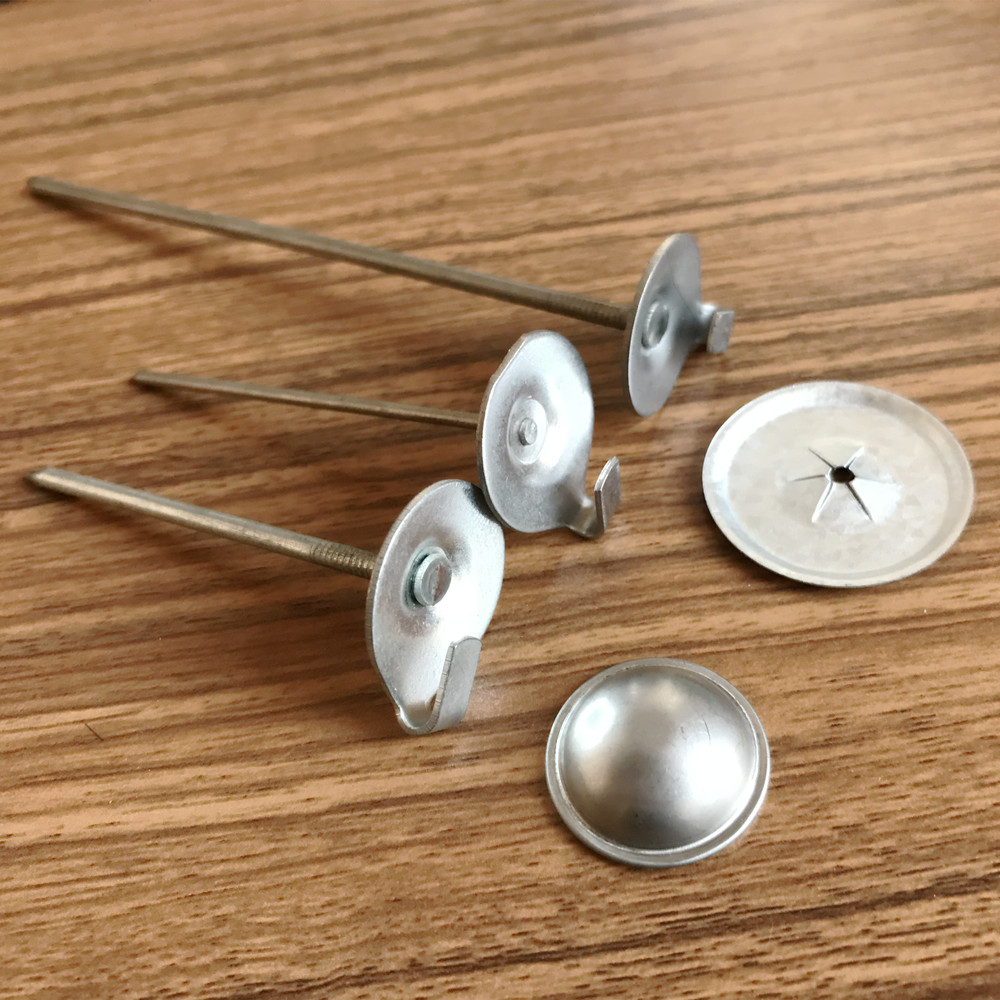

fixing parts Washers: Self-locking washers , speed clips and dome
cap washers. they are available in a variety of sizes,
shapes, and materials.
| pin diameter | head diameter | head material thickness | hook length | length of the lacing anchor |
| 14 ga (.080) | 7/8" | 1mm | 11mm | 1"-4-7/8" |
| 12 ga (.106) | 7/8" | 1mm | 11mm | 1"-4-7/8" |
| US Standard | EU standard | Australia standard |
The head diameter is 1", | The head diameter is 30mm, | People in Australia will need the US standard or EU standard weld
pins, someone will need the 14Ga pin. |

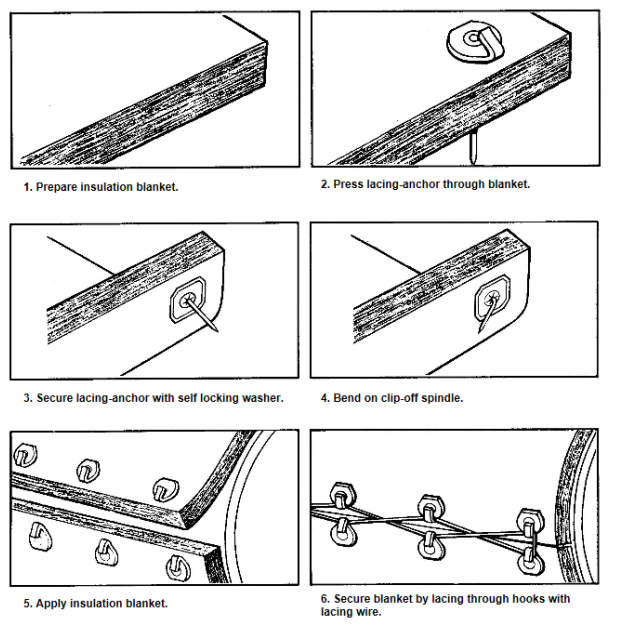

1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the
insulation
4: bend over or clip off the pin
5: install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
stainless steel material lacing anchors are wildy used for fixing:
|
