| Categories | Stretched Lcd Display |
|---|---|
| Brand Name: | GENEVISION |
| Model Number: | MG-190 |
| Certification: | CE, FCC, ROHS, CCC |
| Place of Origin: | CHINA |
| MOQ: | 1PC |
| Price: | USD200-USD300/PC |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 set /month |
| Delivery Time: | 15 working days |
| Packaging Details: | Carton and wooden box |
| Keyword: | Small lcd advertising display |
| Displaying area: | 476.64 × 89.37 (H×V)mm |
| Viewing angle: | 178/178 |
| Brightness: | 300cd/m2 |
| Resolution: | 1920*360 |
| Treatment: | Antiglare (Haze 25%) |
| Panel size: | 491.5(H)*109.4(V)*8.4(B) |
| Company Info. |
| Shenzhen MercedesTechnology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
BOE Original Panel Shelf Digital Signage 19.1 Inch TFT Bar Monitor Stretch LCD Display
Quick details:
1. BOE original LCD bar display
2. Main size is 19.1inch, 21inch, 28inch, 36inch, 42inch and 48inch
3. High brightness from 350cd/m2 to 1000cd/m2
4. Fast delivery time
5. System: Standalone, in, Android, Windows, Linux...
Description:
Ultra-wide stretched bar LCD Advertising display is designed for super market shelf or other part which don't need standard 16:9 screens, with it's super slim and ultra width design, attracted more and more attentions, comparing to LED, it's displaying is more clear and lighter in weight.
Different size meet different installation requirements, pls refer to below main size and spec, for more size, pls contact us so we can quote especially, many of stretched display is installed on the shelf edge in super market, it's used for displaying price and advertising about the product that standing on the shelf, which surely can increase the sales. Also can hang on the ceiling/roof in airport to display airplane filight and landing schedule. Support both vertical and horizontal displaying, customization project is welcome.

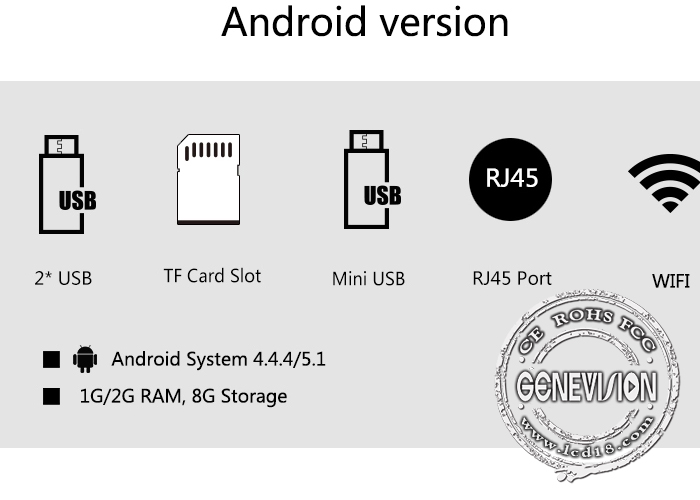

System can be USB plug and play which is the easiest way to display advertising on lcd bar display, also can be with Android with CMS to remotely control advertising via internet, cloud server and IP server both support. LCD stretched digital signage support 7*24h working, power on and off time can be set in the system, also you can monitor each terminal's working status in the CMS.
Specification:
| Size | Model | Brightness (nits), adjustable | Resolution | Displaying area(mm) | Display overall size(mm) |
| 19.5" | Wall mount | 250 ~ 400 | 1920*540 | 476.5*134mm | 521.5*179.5*47.6mm |
| 24" | Wall mount | 200 ~ 400 | 1920*360 | 597.9*111mm | 642*156*46.8mm |
| 28.1" | Wall mount | 200 ~ 400 | 1920*360 | 698*131.5mm | 748*181.4*47.17mm |
| 28.6" | Wall mount | 200 ~ 400 | 1920*540 | 698.4*196.43mm | 748*245.5*45.8mm |
| 34" | Wall mount | 200 ~ 400 | 3440*1440 | 798.5*333.5mm | 848.5*383.5*46mm |
| 35.4" | Wall mount | 200 ~ 400 | 1920*360 | 885.6*166mm | 924*204*50mm |
| 36.2" | Wall mount | 200 ~ 400 | 1920*540 | 885.6*249mm | 924*287*52mm |
| 36.8" | Wall mount | 200 ~ 400 | 1920*360 | 919.29*172mm | 958*210.5*52mm |
| 37.6" | Wall mount | 200 ~ 400 | 1920*540 | 919.29*258.5mm | 979.5*318.5*52mm |
| 43" | Wall mount | 200 ~ 400 | 1920*360 | 1073.78*201mm | 1112*239*52mm |
| 43" | Wall mount | 200 ~ 400 | 3840*720 | 1073.78*201mm | 1112*239*52mm |
| 43.9" | Wall mount | 200 ~ 400 | 1920*540 | 1074*302mm | 1124*352*51mm |
| 43.9" | Wall mount | 200 ~ 400 | 3840*1080 | 1074*302mm | 1124*352*51mm |
| 48.8" | Wall mount | 200 ~ 400 | 1920*360 | 1210.5*226.5mm | 1270*266*51mm |
| 48.8" | Wall mount | 200 ~ 400 | 3840*720 | 1210.5*226.5mm | 1270*266*51mm |
| 49.5" | Wall mount | 200 ~ 400 | 1920*540 | 1209.6*340mm | 1270*400*53mm |
| 49.5" | Wall mount | 200 ~ 400 | 3840*1080 | 1209.6*340mm | 1270*400*53mm |
| 58.4" | Wall mount | 200 ~ 400 | 1920*540 | 1428*401.5mm | 1492*465.5*73.5mm |
| 58.4" | Wall mount | 200 ~ 400 | 3840*1080 | 1428*401.5mm | 1492*465.5*73.5mm |
| 75" | Banner kiosk | 200 ~ 400 | 3840*1250 | 1649.66*535mm | 1712*598*47.3mm |
| 70" | Kiosk | 200 ~ 400 | 3840*1350 | 1538*541mm | 1648.48*601*30mm |
| 69.3" | Wall mount | 300 ~ 400 | 3840*1440 | 1649.5*618mm | 1688.5*657*45.5mm |
| 75" | Kiosk | 300 ~ 400 | 3840*1440 | 1649*617mm | 1787*698*42.5mm |
| 75" | IR touch kiosk | 300 ~ 400 | 3840*1440 | 1649.5*617mm | 1787*697*43mm |
| 80" | Wall mount | 200 ~ 400 | 3840*1440 | 1895*710mm | 1956*771*38mm |
| 75" | Wall mount | 200 ~ 400 | 3840*1440 | 1649.66*535mm | 1712*598*47.3mm |
| 86" | Wall mount | 200 ~ 400 | 3840*1440 | 1895*710mm | 2020*771*75.5mm |
| 86" | Wall mount | 200 ~ 400 | 3840*600 | 2158*337mm | 2200*389*66.5.5mm |
| 88" | Wall mount | 200 ~ 400 | 3840*1080 | 2158*607mm | 2200*649*66.5.5mm |
Application:
Super market, airport, libary, hotel, motel, mesuem
|
