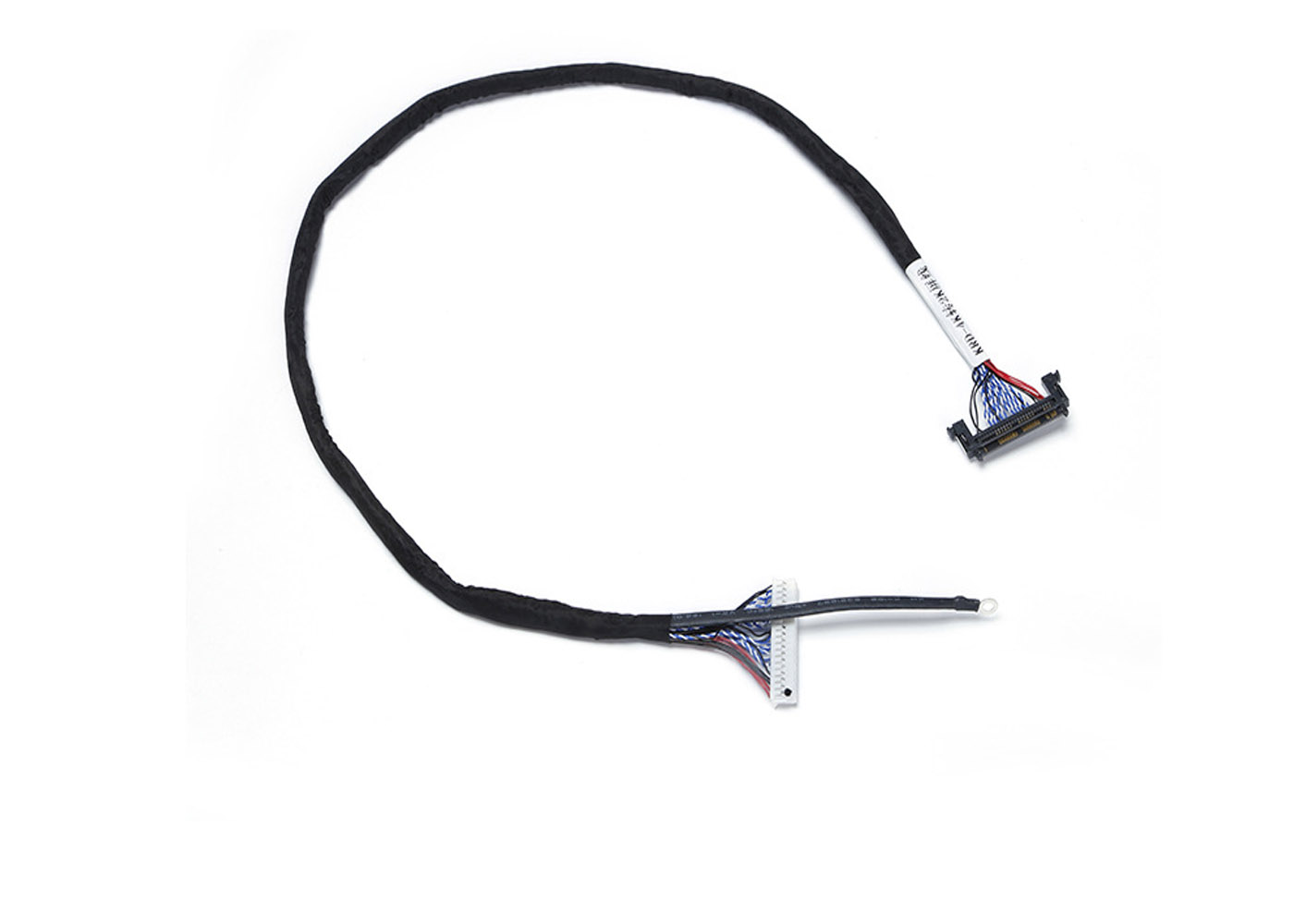

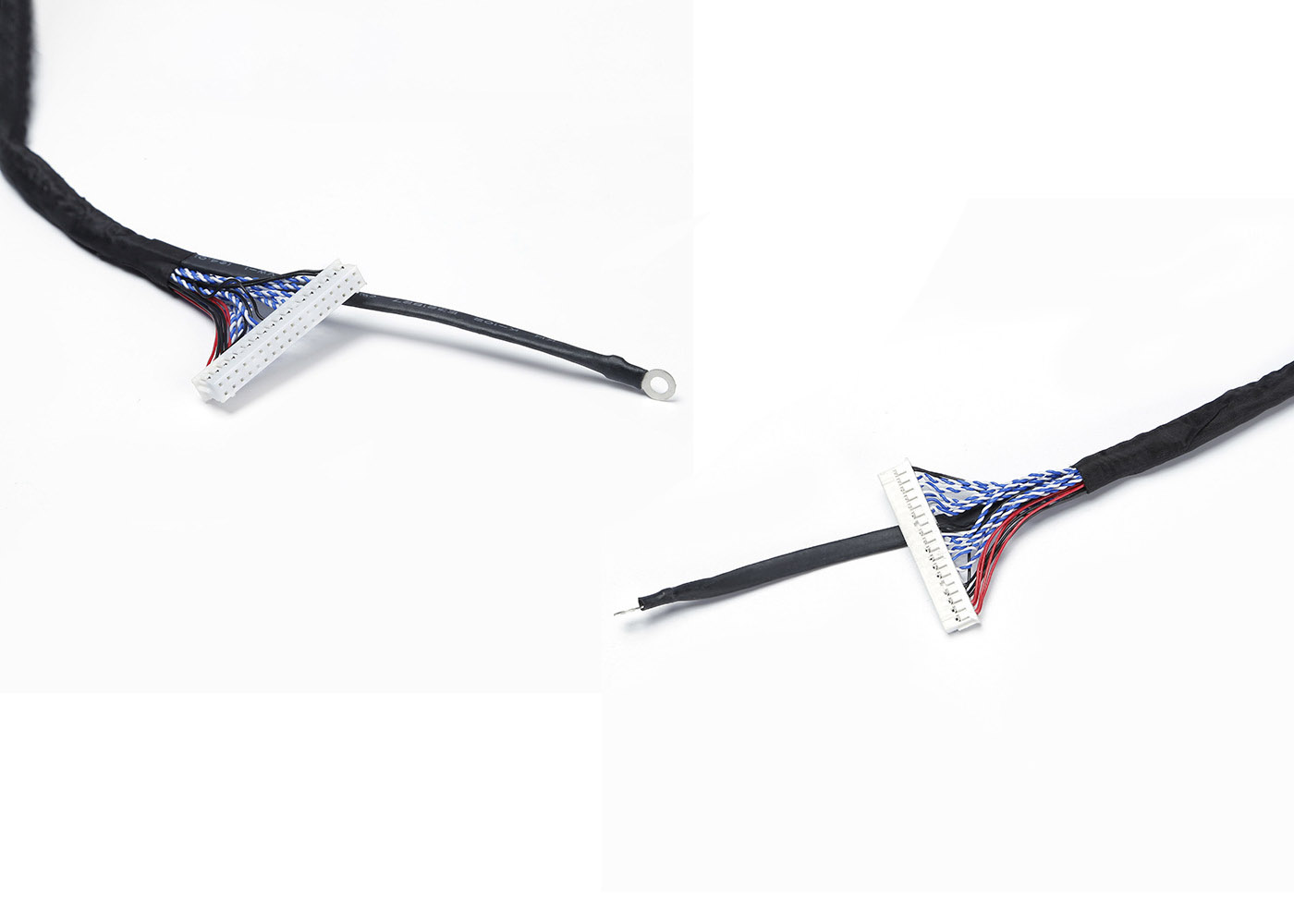

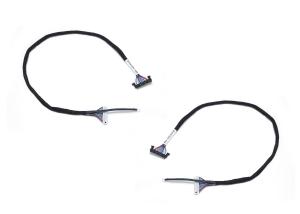

Dual 8 Bit RF51P HD LCD Screen 28 AWG LVDS Cable

RF51P HD LCD Screen LVDS Cable Dual 8-Bit LVDS HD Oxygen-Free Pure Copper Screen Cable

Parameters:

Product introduction

20PIN single 6 definition:
1: Power supply 2: Power supply 3: Ground 4: Ground 5: R0-6: R0+ 7: Ground 8: R1- 9: R1+ 10: Ground 11: R2- 12: R2+ 13: Ground 14: CLK-15: CLK+ 16 Empty 17 empty 18 empty 19 empty 20 empty

The resistance between each set of signal lines is (about 120 ohms for digital watches)

20PIN double 6 definition:

1: Power supply 2: Power supply 3: Ground 4: Ground 5: R0-6: R0+ 7: R1- 8: R1+ 9: R2- 10: R2+ 11: CLK-12: CLK+ 13: RO1- 14: RO1+ 15: RO2 -16: RO2+ 17: RO3- 18: RO3+
19: CLK1- 20: CLK1+

The resistance between each set of signal lines is (about 120 ohms for digital watches)

20PIN single 8 definition:

1: Power supply 2: Power supply 3: Ground 4: Ground 5: R0-6: R0+ 7: Ground 8: R1- 9: R1+ 10: Ground 11: R2- 12: R2+ 13: Ground 14: CLK-15: CLK+ 16 : R3- 17: R3+

The resistance between each set of signal lines is (about 120 ohms for digital watches)

30PIN single 6 definition:

1: empty 2: power supply 3: power supply 4: empty 5: empty 6: empty 7: empty 8: R0-9: R0+ 10: ground 11: R1- 12: R1+ 13: ground 14: R2- 15: R2+ 16: Ground 17: CLK-18: CLK+ 19: Ground 20: Empty-21: Empty 22: Empty 23: Empty 24: Empty 25: Empty 26: Empty 27: Empty 28 Empty 29 Empty 30 Empty

The resistance between each set of signal lines is (about 120 ohms for digital watches)

30PIN single 8 definition:

1: empty 2: power supply 3: power supply 4: empty 5: empty 6: empty 7: empty 8: R0-9: R0+ 10: ground 11: R1- 12: R1+ 13: ground 14: R2- 15: R2+ 16: Ground 17: CLK-18: CLK+ 19: Ground 20: R3- 21: R3+ 22: Ground 23: Empty 24: Empty 25: Empty 26: Empty 27: Empty 28 Empty 29 Empty 30 Empty

The resistance between each set of signal lines is (about 120 ohms for digital watches)

30PIN double 6 definition:

1: Power supply 2: Power supply 3: Ground 4: Ground 5: R0-6: R0+ 7: Ground 8: R1- 9: R1+ 10: Ground 11: R2- 12: R2+ 13: Ground 14: CLK-15: CLK+ 16 : Ground 17: RS0-18: RS0+19: Ground 20: RS1- 21: RS1+ 22: Ground 23: RS2- 24: RS2+ 25: Ground 26: CLK2- 27: CLK2+
The resistance between each set of signal lines is (about 120 ohms for digital watches)

30PIN double 8 definition:

1: Power supply 2: Power supply 3: Power supply 4: Empty 5: Empty 6: Empty 7: Ground 8: R0-9: R0+ 10: R1- 11: R1+ 12: R2- 13: R2+ 14: Ground 15: CLK-16 : CLK+ 17: Ground 18: R3- 19: R3+ 20: RB0-21: RB0+ 22: RB1- 23: RB1+ 24: Ground 25: RB2- 26: RB2+ 27: CLK2- 28: CLK2+ 29: RB3- 30: RB3+

The resistance between each set of signal lines is (about 120 ohms for digital watches)

Generally, 14PIN, 20PIN and 30PIN are LVDS interfaces.

☀ We have IPEX LVDS CABLE, KEL LVDS CABLE, HIROSE LVDS CABLE, ACES LVDS CABLE,JAE LVDS CABLE, MOLEX LVDS CABLE, STARCONN LVDS CABLE,FFC LVDS CABLE, JST LVDS CABLE etc.

☀ Our Lvds cables can be made in different connector/length/pitch/pins etc., if you need, we can accept customized.

☀ We can produce Lvds cable,LED cable,Flat IDC cable,FFC,Waterproof cable,Wire harness and so on.

☀ If you require a special Lvds cable not found here, you can create your own Lvds cable by calling our sales department.
