| Categories | ELCB Circuit Breaker |
|---|---|
| Brand Name: | SONTUOEC ,WZSTEC |
| Model Number: | STC |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 500pcs |
| Price: | Negotiable |
| Supply Ability: | 5000pcs/day |
| Delivery Time: | 15DAYS |
| Standard: | IEC61009,NFC62411.NFC61450 |
| Coil voltage: | 230/400V |
| In: | 5~15A(5,10,15)A;10~30A(10,15,20,25,30,)A;30~60A(30,45,60)A |
| I△n: | 300，500（mA） |
| Install: | Fixed |
| Color: | PA66 |

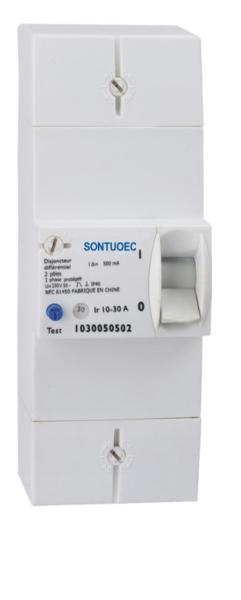

2 Pole adjustable Circuit Breaker , single phase up 60A Operated ELCB,thermal magnetic circuit breaker
GENERAL
STG series adjustable residual current circuit breaker is suitable
for AC 50/60Hz,230/400V circuit,prevents from
overloading,short-circuit etc.On the occasion of shock hazard or
earth leakage,it will trip immediately.At the same time,the rated
current of overload protection can be adjustable.
Specification:
| Type | STC230 | STC420 |
| Rated Current(A) | 10A,15A,20A,25A,32A,40A,50A,60A | 10A,15A,20A,25A,32A,40A,50A,60A |
| Pole Number | 2Pole | 4Pole |
| Leakage acting current(mA) | 300mA,500mA | 300mA ,500mA |
| Range of break-off | 0.5~1.0X IΔn | 0.5~1.0X IΔn |
| Rated Voltage(V) | 220V-250VAC | 240V/415VAC |
| Tripping time | 100ms | 100mS |
| Life | 100000 times | 100000 times |
| Ambient Temperature | -5°C ~ +55 °C | -5°C ~ +55 °C |
Our Advantages
1. We have competitively price,
2. we can provide after sale service,
3. our products are of high quality, they are durable and have long life
