Brand Name: | AISRY |
Model Number: | ASR-XJJ-22 |
Certification: | ISO |
Place of Origin: | China |
MOQ: | 1 set |
Price: | Negotiable |
Payment Terms: | T/T, Western Union |
Supply Ability: | 200 sets per month |
Delivery Time: | 15 work days |
Packaging Details: | Standard export wooden case |
Edge fillet radius: | R(1.5±0.1)mm |
Standard: | ISO3036 ,GB26797 |
Size: | 800 *500 * 750 mm |
Net weight: | 145kg |
Measurement range(J): | 0-48 four files |
Finger friction: | <0.25J |
Power: | Electronic |
Warranty: | 1 Year |

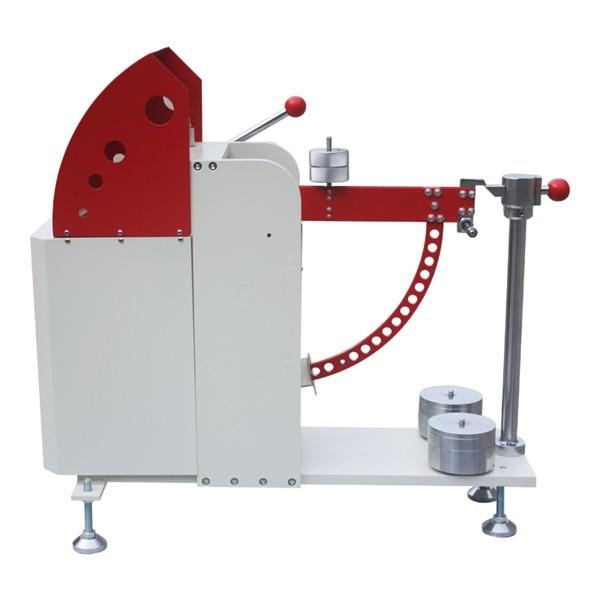

Hot Sales Paper Board Puncture Resistance Tester With Cheap Price
Application :
Microcomputer intelligent corrugated board puncture strength tester Apply for puncturing strength test for corrugated cardboard and cartons.
Features:
1.Operation knob with self-reset function;
2.Safe protection;
3.LCD displayer.
Specification :
Model | ASR-XJJ-22 |
Capacity (optional) | 1~48J |
Resolution deviation | Rule A: ±0.05J, Rule B: ±0.1J, Rule C: ±0.2J, Rule D: ±0.5J, (20~80% for limitation) |
Friction of pointer | <0.25J |
Resistance of swing axis and air | >120times |
Cone size | 60x60x60mm |
Measurement circle R | (1.5±0.1)mm |
![]() |
