Brand Name: | Sanjin |
Model Number: | LXS-1000 |
Certification: | CE |
Place of Origin: | China |
MOQ: | 1set |
Price: | USD17500-43500/set |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 5set per month |
Delivery Time: | 10-15 workign days |
Packaging Details: | export standard |
After-sales Service Provided: | Engineers available to service machinery overseas |
Type: | LTJ-1000 |
Total Power: | 23.5kw |
Capacity: | 500-1000kg/h |
Raw material: | rice husk, sawdust ,bamboo husk and so on |
Color: | customer required |
Name: | Wood Sawdust Continuous Carbonization Furnace |
Usage: | Charcoal Maker |

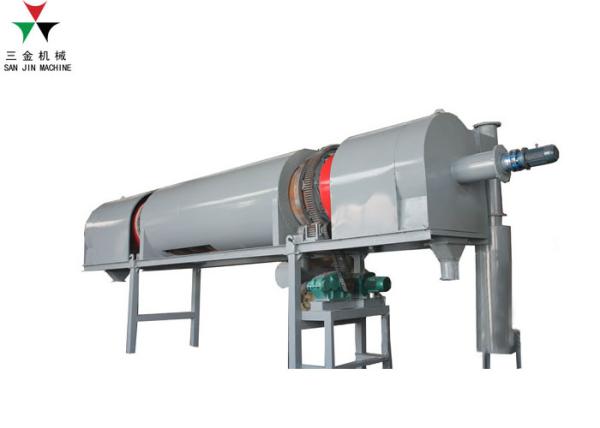

Coconut Shell Kiln Drum Screw Continuous Carbonization Furnace
Product Application
The continuous carbonization furnace is the newest high production
equipment in my company, at present,thecarbonization equipment on
the market has small production,but
the area is larger, therefore, after several experts of research
and development,my company
has designed horizontal high-throughput coking equipment,the
production is high, high utilization rate of thermal
efficiency,energy saving,environmental protection, smokeless,
real implementation of smoke-free type production.
Coal carbonization furnace is the newest type charcoal making furnace in China. And it is specially designed for fine biomass powder, such as wood sawdust powder, fruit shell powder, etc. It is used to carbonize fine biomass powder into charcoal powder in a short time for only 35-45 minutes. Its fuel can be Gas, Coal, etc. And its smoke can be recycled. Rotary continuous coal carbonization furnace consists of six main parts:
1> Inputting conveyor. This conveyor is screw conveyor, it is used to convey fine biomass powder into rotary drum.
2> Rotary drum. This is the main part of rotary charcoal making machine. Fine biomass powder will be carbonized in this drum.
3> Ignation cable switch and pipes. They are used to convey burning energy for rotary drum and then provide high temperature for charcoal making machine.
4> PLC. it is used to operate the whole set coal carbonization furnace automatically.
5> Motors.
6> Outputting conveyor.
Technical parameters:
Model | LXT-800 | LXT-1000 | LXT-1200 |
Power(KW) | 3+3+7.5+3 | 3+3+7.5+3 | 3+3+15+3 |
diameter*length (MM) | 800*1000 | 1000*1000 | 1200*1000 |
Capacity | 400-600kg/h | 700-1000kg/h | 1000-1300kg/h |
Primary heating unit | 12 | 12 | 14 |
The host base | 10*1.25*1 | 10*1.45*1 | 10*1.64*1 |
Cooling discharging dimension (MM) | 1200*2900 | 1200*2900 | 1500*2900 |
The feed temperature | 350-450℃ | ||
The raw material size | ≤3cm | ||
The raw material moisture | ≤15 |
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine
Detailed Images
Related Products
Final product
Our Company
Gongyi city sanjin charcoal factory was built in 1988, is located
in gongyi city in henan province.Is a technology leading
enterprises, the People's Republic of China import and export
enterprises, charcoal machine won the national patents 10.Company
main products: charcoal, charcoal machine automation equipment,
series of straw gasifier, straw gasification, carbon powder molding
machine, grinder, sawdust dryer, stick machine, such as coking
furnace large biomass equipment production line.
In nearly 20 years of development, our factory together industry
elite, professional and technical, fall in love."Sanjin machinery"
from a single charcoal machine equipment development to the series
of power plant equipment, have three series more than 30 varieties
of mechanical products.I plant strong technical force, advanced
production technology and equipment, perfect testing and test
methods, excellent technical and after-sales service, continuous
new product technology improvement, make our products always in the
leading level at home and abroad, and won the national patents
10.Has been exported to Britain, Russia, Malaysia, Indonesia,
Vietnam and other countries and regions, favored by customers at
home and abroad and praise, has a higher market share in domestic
and foreign markets.
