SMD 3535 Advertisement P8 625nm LED Display Screen

Categories Small Pitch LED Display
Brand Name: Vegoo
Model Number: VG-P8-DH
Certification: CE
Place of Origin: China
MOQ: 1sqm
Price: 600USD/Sqm
Payment Terms: T/T
Supply Ability: 5000 Sqm/month
Delivery Time: 10-20 days
Packaging Details: Plywood case / Flight case / Carton box
Pixel Pitch: 8mm
LED Specification: SMD 3535
Working Voltage: DC 5V
color: full color
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SMD 3535 Advertisement P8 625nm LED Display Screen

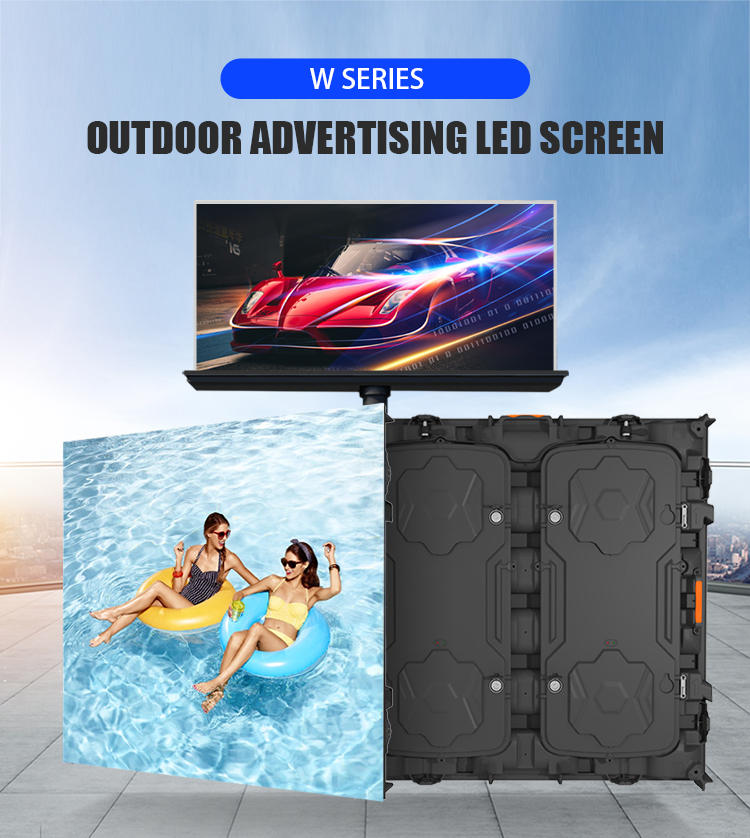

Wholesale High Brightness P8 Outdoor Big Advertisement LED Display Screen


P8 Outdoor Full Color LED Display Parameter
(1)Parameter of Pixel
NumberItemParameter
1Pixel Pitch8mm
2Pixel composition1R1G1B
(2)Parameter of Chip
NumberItemWave lengthBrightnessSpecification
1Red Chip621-625nm550-688mcdSMD 3535 Lamp
2Green Chip520-524nm1050-1312mcd
3Blue Chip466-470nm160-200mcd
(3)Display Technical Parameters
LampLED SpecificationSMD 3535
ModuleModule SizeW256mm*H128mm
Module ResolutionW32 Dots*H16 Dots/40Dots*H20Dots
Scanning Mode1/4
Working VoltageDC 5V
Module Power30W

Cabinet


Standard Size1024*1024mm
Ingress ProtectionIP65 (Front) /IP65 ( Rear)
Cabinet Resolution128*128 Dots
Cabinet MaterialDiecast Cabinet/Simple Iron Cabinet
4LED DriverConstant Current
5Pixel/ M215625 Dots/ M2
7Display BrightnessMaximum 7200cd/ M2
8Viewing AngleHorizontal 16Vertical 14
9Best Viewing Distance8m
10Grey LevelRed,Green,Blue each 256 Levels of Grey
11Display Color16.7M
12Color Quality32 Bits
13Frame Changing Frequency >60(Frames)/s
14Refresh Rate>1920HZ
