Rack Mounted Benchtop 48CH 1x1 Optical Switch Equipment

48CH-1×1 Rack-Mounted Optical Switch Equipment 48pcs 1x1 Fiberoptic Switches

GEZHI's 48CH-1×1 Rack-Mounted Optical Switch Equipment 48pcs of 1x1 Fiberoptic Switches is a kind of light path control device. plays a control light path and convert the light path. This 48CH-1x1 rack-mounted optical switch is composed of 48 1x1 optical switch combinations,Controllable light path on / off,It can through RS232 serial port and Ethernet port (RJ45) control switch, In the optical fiber transmission system , it is used for multi-channel fiber monitoring , multi light source/ detector selection , and optical fiber path protection etc. Besides, it is also used in optical fiber testing system , outdoor cable testing and multi-spot optical sensors monitoring system.

Features

Low insertion loss, Fast switching
SerialNet, High Reliability, High Stability

RS232 Control and Ethernet Remote Management
Transparent transmission signal. High stability and reliability.

Applications

Cable Monitoring and Maintaining system

FITL
Automatic Measurement

Optical Network Remote Monitoring

Specification

Panel to Explain:

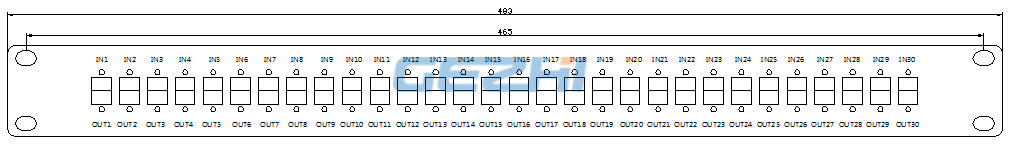

Front Panel

◆IN1~IN30: Optical input.

◆OUT1~OUT30: Optical output.

Back Panel

◆IN31~IN48: Optical input.

◆OUT31~OUT48: Optical output.

◆ RJ45: Communications network management interface.

◆RS-232: Rs- serial interface , RS232 serial communication interface.

◆ON/OFF: Power ON/OFF.

◆AC: 100~240V: Power cord interface.

Default Setting

◆RS-232: Baud rate:9600, Data bits: 8 bit, Stop bit: 1 bit, Parity bit: NONE.

◆RJ45: IP:192.168.1.100 , PORT:5000, TCP/IP: TCP Server and UDP.

(Fixed port: 18888)
