(SART)ESR-06 good EMC mature technology and reliable performance Lower power consumption GMDSS

Categories Global Maritime Distress And Safety System
Brand Name: THUNDSEA
Model Number: (SART)ESR-06
Certification: CCS
Place of Origin: Qingdao
MOQ: one set
Payment Terms: L/C, T/T
Supply Ability: 30 set per month
Delivery Time: 15 Days
Packaging Details: carton box
Frequency range: 9200MHz~6500MHz
Polarization mode: Horizontal polarization
Antenna: Horizontal beam(omni-directional)<±2dB vertical beam ±12.5°
Scanning rate: 7.5±1μs(forward oblique rise), 0.4±0.1μs(reverse recovery)
Radiation power: ≥27dBm
Response delay: ≤0.5μs
Effective sensitivity: ≤-52dBm
Recovery time: ≤10μs
Battery level: Standby time is not less than 96 hours and continuous operating time is 8 hours
Operating temperature: -20℃~55℃
Overall dimension: φ120mm×345mm
Weight: ≤1kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

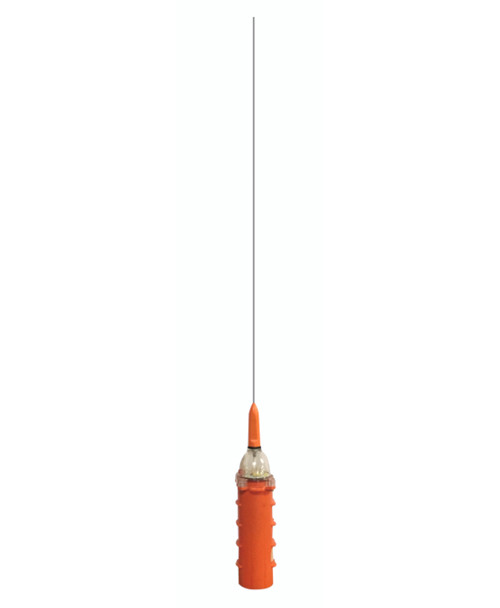

(SART)ESR-06 good EMC mature technology and reliable performance Lower power consumption GMDSS

(SART)ESR-06 good EMC mature technology and reliable performance Lower power consumption


Main functions


● It is capable of detecting the pulse action through the navigation radar installed on a search and rescue vessel or a helicopter. The signal from SART can indicate the exact position V of the SART on the fluorescent screen of the navigation radar of the search and rescue vessel or the helicopter;

● The survior who holds an SART or a vessel or boat in distress where an SART is equipped can discover the search and rescue vessel or the helicopter that is approaching them.


Features

● Lower power consumption due to X-band small-signal detection technique, waveform generation technique and high efficient power conversion technique;

● Characterized by good EMC, mature technology and reliable performance.


Indicators

Frequency range9200MHz~6500MHz
Polarization modeHorizontal polarization
AntennaHorizontal beam(omni-directional)<±2dB
vertical beam ±12.5°
Scanning rate7.5±1μs(forward oblique rise),
0.4±0.1μs(reverse recovery)
Radiation power≥27dBm
Response delay≤0.5μs
Effective sensitivity≤-52dBm
Recovery time≤10μs
Battery levelStandby time is not less than 96 hours and
continuous operating time is 8 hours
Operating temperature-20℃~55℃
Overall dimensionφ120mm×345mm
Weight≤1kg

Applications

This product applies to the safe rescue system for marine use.
