Dual Fiber Plug In 2CH CWDM Add Drop OADM Modular

Categories Optical Add Drop Multiplexer
Brand Name: GEZHI or OEM
Model Number: 2CH-OADM-C-WE-D-4749-LGX
Certification: CE RoHS ,ISO9001
Place of Origin: China
MOQ: 1pc
Price: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Delivery Time: 5-8 work days
Packaging Details: Paper box
Product Name: 2-OADM-C-WE-D-4749-LGX
Wavelength: 1470&1490nm
Line Type: West and East Dual Fiber
Connector: LC/UPC
Package: LGX Cassette
Application: Optical Add and Drop
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Dual Fiber Plug In 2CH CWDM Add Drop OADM Modular


Plug-in Type 2CH CWDM Add Drop OADM Modular Dual Fiber


GEZHI's Plug-in Type 2CH CWDM Add Drop OADM Modular Dual Fiber with CWDM wavelength1470nm and 1490nm. The Plug-in Type 2CH CWDM Add Drop OADM Modular Dual Fiber combines wavelength channels onto an optical transmission fiber. Gezhi's Plug-in Type 2CH CWDM Add Drop OADM Modular Dual Fiber are used in WDM systems for multiplexing or demultiplexing and routing fiber optic signals, selectively adding and dropping individual or sets of wavelength channels from a CWDM stream. This 2-OADM-C-WE-D-4749-LGX are available in dual-sided (East and West) configurations supporting up to two wavelengths on dual fiber.



Features

  • Dual Fiber working
  • High Stable & Reliable
  • No electric power required
  • Dual-sided East and West
  • Low Insertion Loss


Applications

  • Optical Add and Drop
  • Telecommunication
  • Long Haul Networks
  • Acess Network
  • WDM Network


Specification

Parameter


Unit

2-OADM-C-WE-D-4749-LGX
AddDrop
Channel Wavelengthnm1470 and 1490nm

Center wavelength

Accuracy

nm±0.5
Channel Spacingnm20

Channel Passband

(@-0.5dB bandwidth

nm>15
Insertion LossdB<0.9<0.9
Channel RippledB0.3

Isolation

AdjacentdB>30
Non-adjacentdB>40

Inertion Loss Temperature

Sensitivity

dB/℃

<0.005

Wavelength Temperature

Shifting

nm/

<0.002

Polarization Dependent

Loss

dB<0.1

Polarization Mode

Dispersion

dB<0.1
DirectivitydB>50
Return LossdB>45
Maximum Power HandlingmW300
Opterating Temperature-20~+70
Storage Temperature-40~85
Package dimensionmmLGX cassette

Note: 1. Customization is available.

2. Specified with connector


Plug-in Type 2CH CWDM Add Drop OADM Modular Dual Fiber

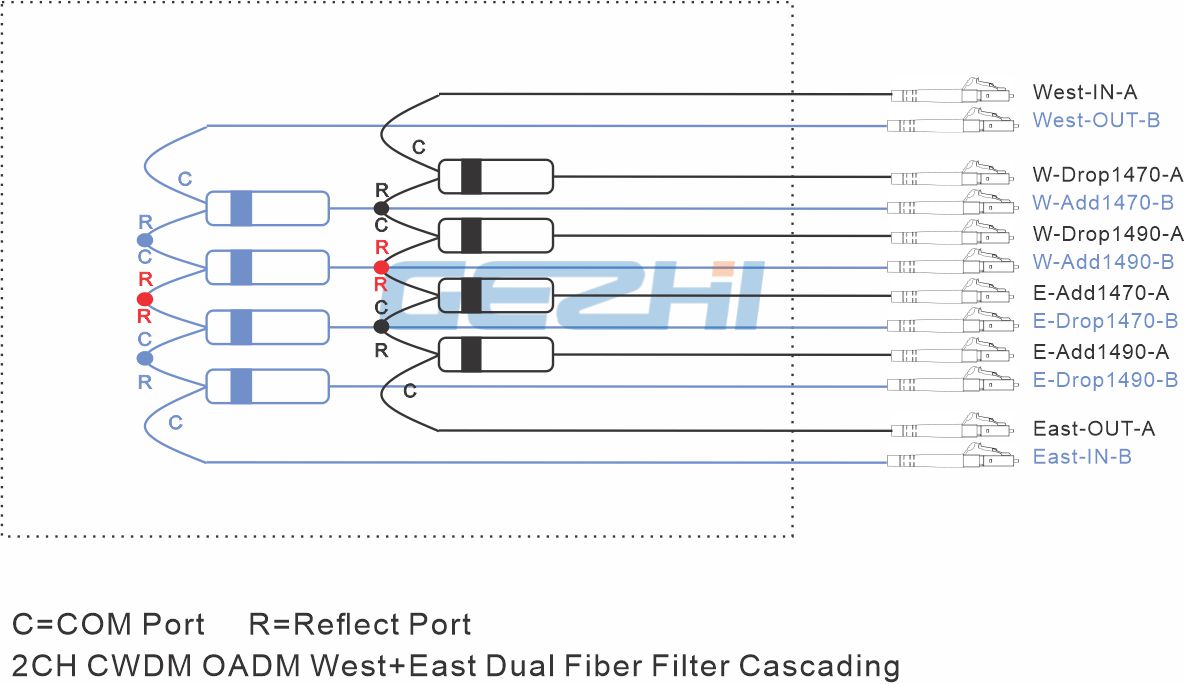

Drawing

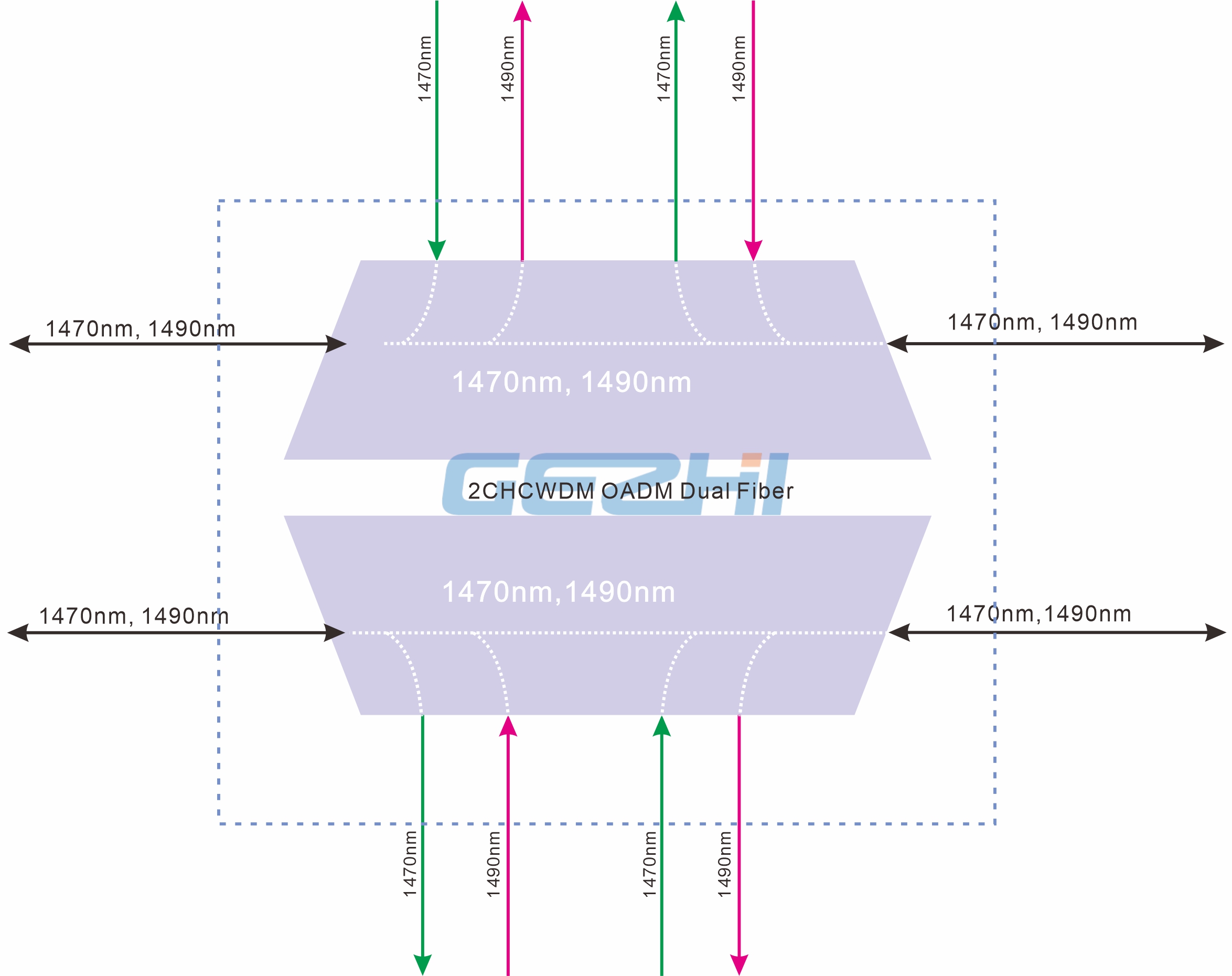

Dual Fiber 2 Channel OADM CWDM Mux Add-Drop Module


It drops the individual channel and adds that same channel back onto the network fiber in dual-sided transmission.



2 channel 1470nm and 1490nm CWDM add & drop multiplexer for EAST and WEST for bi-directional data transmission over dual fibers.


Plug-in Type 2CH CWDM Add Drop OADM Modular Dual Fiber​ Solution
