High Quality Heat Insulation Silicone CPU thermal pad with different thickness

Categories CPU Thermal Pad
Brand Name: Ziitek
Model Number: TIF100-01US
Certification: UL
Place of Origin: China
MOQ: 1000 pcs
Price: 0.1-10 USD/PCS
Payment Terms: T/T
Supply Ability: 100000pcs/month
Delivery Time: 3-8 work days
Packaging Details: 25*24*13cm canton
Products name: High Quality Heat Insulation Silicone CPU thermal pad with different thickness
thermal conductivity: 1.5 W/mK
Keywords: CPU thermal pads
Color: Drak Gray
Hardness: 20±5 Shore 00
Material: Ceramic filled silicon elastomer
Specific Gravity: 1.9g/cm³
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

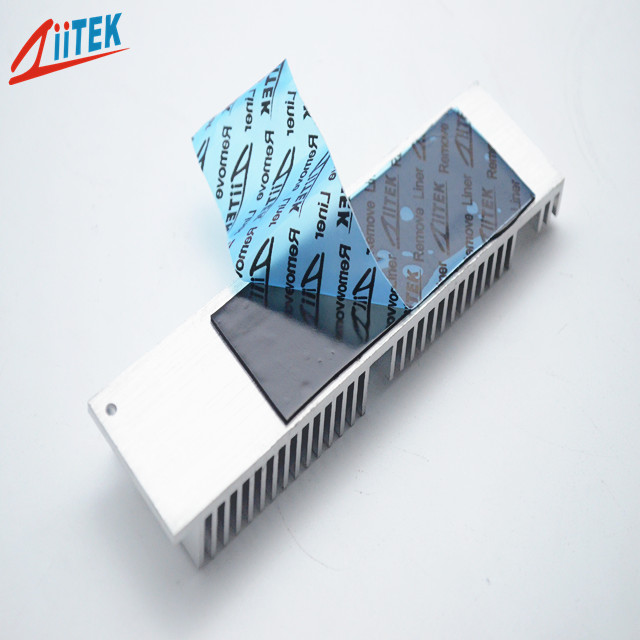

High Quality Heat Insulation Silicone CPU thermal pad with different thickness

High Quality Heat Insulation Silicone CPU thermal pad with different thickness


Company Profile


Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.


Product introduction


The TIF™100-01US Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.
Features
> Outstanding thermal performance 1.5 W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
Applications
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
Typical Properties of TIF 100-01US
Product Name
TIF100-01US Series
Color
Drak Gray
Construction & Compostion
Ceramic filled silicone elastomer
Specific Gravity
1.9g/cc
Hardness
20±5 Shore 00
Continuos Use Temp
-40 to 160℃
Dielectric Breakdown Voltage(T=1.0mm,Vac)
≥5500 VAC
Dielectric constant @1MHz2.9
Volume Resistivity≥1.0x10¹²Ohm-cm
Thermal conductivity
1.5 W/mK
Thickness
0.25mm to 5.0mmT
Flame Rating94-V0

Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
