Intelligent digital label cutting/sliting and rewinding machine

Categories Thermal Paper Slitting Rewinding Machine
Brand Name: ECOOGRAPHIX
Model Number: VD3350
Certification: ISO, SGS, CE
Place of Origin: China
MOQ: 1 unit
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 1000 unit per year
Delivery Time: 30-60 days
Packaging Details: standard package, 4656mm x 2304mm x 2277mm
Model: VD3350
description: digital label due cutting machine
cutting Width: 40mm-350 mm
Max. speed: 30 m/min, depends on material and blade quantity
Application: label printing
cutting length: 10mm-600mm
Slitting blades: (standard 4 pcs ) max.15pcs
Optional function: cold laminating, stripping, sheet cutting
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

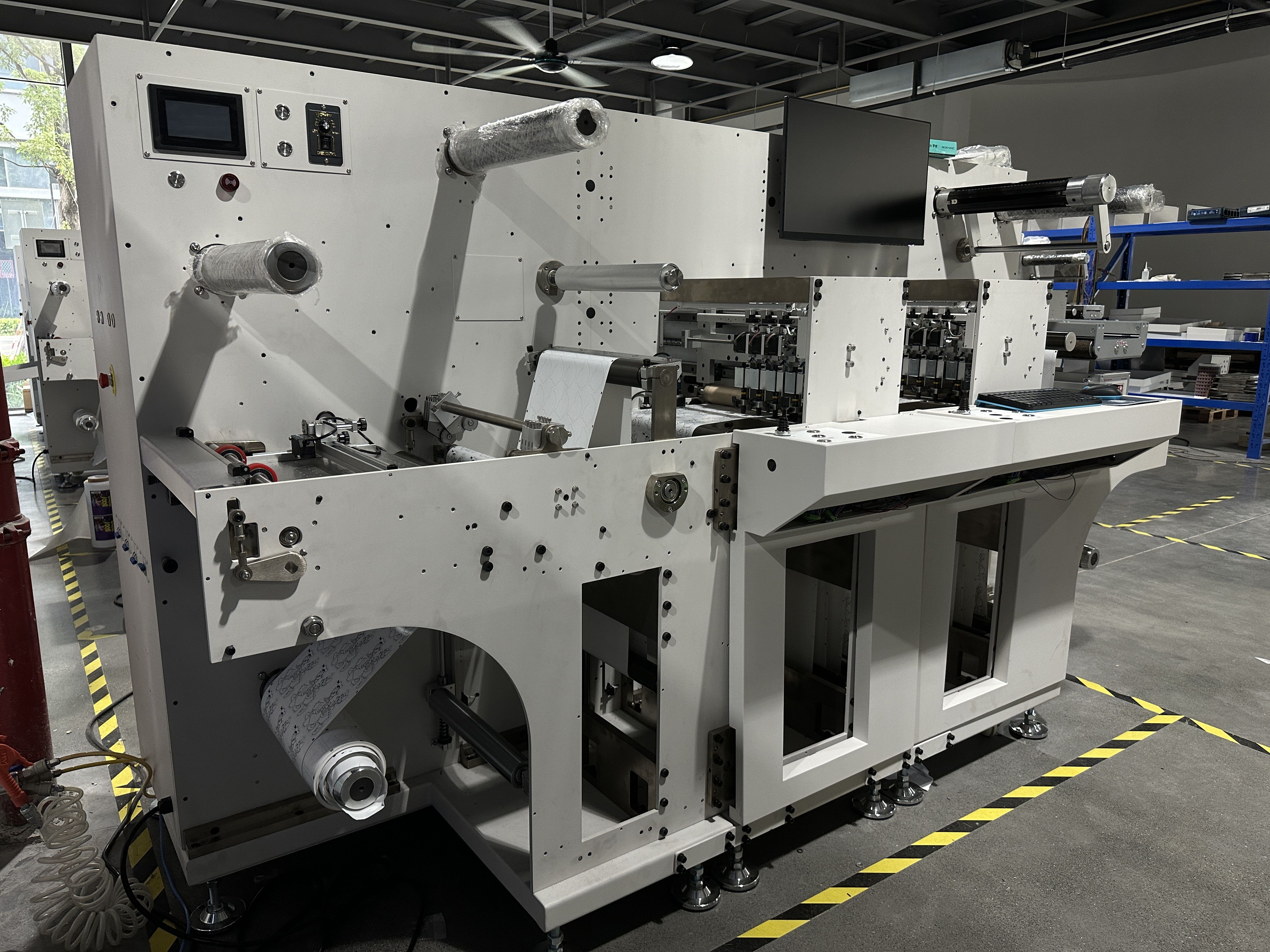

Intelligent digital label cutting/sliting and rewinding machine

Brief introduction and application


VD3350 is designed to work with digital label printing machines. It is fully computer-controlled and can cut any sizes or curves. It does not require cutting die or mould. It can deal with variable data and can do tailer made or complicated designs.



Technical data


ModelEcoo-VD3350
Max. media rollerdiameter 450mm
Cutting media width40-350mm
Max.label width330mm
Min.label length10mm
Max.label length600mm
Cutting speedmax.9m per minute (depend on label shape and size)
Cutting blades(standard) 4 pcs
Slitting blades(standard 4 pcs ) max.15pcs
Cutting trackingCCD camera
Die-cutting technologywith tungsten steel rotary blades
Cutting precision0.1mm (duplicate)
Slitting speedMax. 100m per minute
Slitting width10-330mm
Slitting precision0.1mm
Machine size (W*D*H)2100*1195*1575CM
Machine weight1200kg
Power110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS
Warranty1year (besides high consumable parts)
OptionsCutting head/Slitting unit/Film back liner removal/Sheet paper cutter

RFQ

1. what is the lead time?

The production time for this model is around days.


2. How about the consumables for this cutting machine?

The main consumables are the blades, which should be replaced each week.


3. how many blades does this model have?

It depends on the customer's inquiry for speed. The standard configuration is one group of 4 pcs of blades. The max speed 30 m/min will require 3 groups of blades.


4. is it flatbed or roll cutting?

Actually, it is not flatbed cutting nor roll cutting. It is digital cutting. The blades look like needles and cut in any curves. It is totally computerized.
