Positive Displacement Triplex Cylinders Mud Pump Horizontal triplex reciprocating mud pump

Categories Mud Pump
Brand Name: SINOVO
Model Number: BW160/10
Certification: CE/GOST/ISO9001
Place of Origin: China
MOQ: 1 set
Price: Negotiation
Supply Ability: 30 sets per month
Delivery Time: 7-10 work days

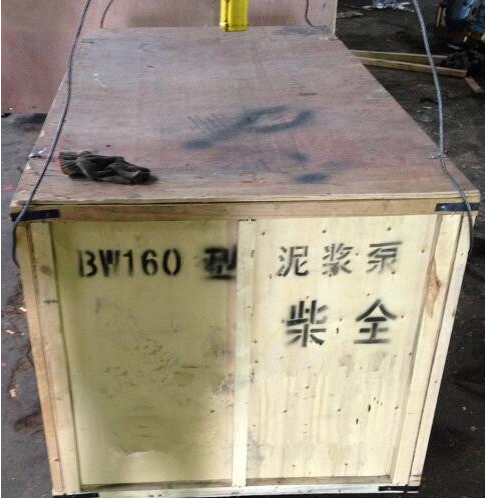

Packaging Details: International Export Carton Case Package
Model: BW160/10
Max Head: <10m
Start Up: Electric Pump
Type: Positive-Displacement Pump
Dia. of piston: 70mm
Specification: 1400*860*950mm, 380kg
Stroke: 70mm
Overall size: 1400*860*950mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Positive Displacement Triplex Cylinders Mud Pump Horizontal triplex reciprocating mud pump

Model BW160 / 10 Piston Pump Triplex Cylinders Mud Pump Overall Size 1400*860*950mm
BW 160/10 Mud pump

Basic Information:


BW-160/10 mud pump is a horizontal, triplex, single acting reciprocation piston pump. It's function is to supply the drilling hole with flushing liquor in order to cool bit. It is used matching drill rigs. It is applied to geological and engineering prospecting such as the railway, the water conservancy, the met-al lurgy, the build and the geology etc industry whose hole deep is within 1000m. Also it can be used to deliver water to high mountains or in the execution domain of middle and low pressure grouting and non excavating matching.


This pump has advantages such as small cubage, light mass, long life, simple operation and reliable per-formance, etc.


Technical Parameters:


Model numberBW160/10
Typehorizontal, triplex. single acting reciprocation piston pump
Stroke(mm)70
Dia. of piston(mm)70
Pump speed(min)200 132 83 55
Output volume(1/min)160 107 67 44
Pressure(Mpa)2.5 46.5 10
Overall efficiency(%)75
Input hose diameter(mm)51
Output hose diameter(mm)32
Power of dynamic force(Kw)11 13.24

Rotate speed of dynamics force(r/min)

1460 2200
Overall size(length' width*height)1400*860*950
Mass(kg)380mm

Contact Information:

Beijing Sinovo International Corp & Sinovo Heavy Industry Co.Ltd
Contact Person:Nancy Fan
Office: (86)-10-5190 9163
Web:www.sinovogroup.com / www.chinadrillingequipment.com
