| Categories | Seamless Stainless Tubes |
|---|---|
| Brand Name: | FRANK STEEL |
| Model Number: | ASTM A213 TP347 |
| Certification: | DNV / LR / BV |
| Place of Origin: | P.R.CHINA |
| MOQ: | 2 Tons |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 1000 Ton per 30 days |
| Delivery Time: | about 30 work days |
| Packaging Details: | Simple packing in hexagon shape per bunch or plywooden boxes |
| Steel grade: | A213 TP347 |
| Application: | Industry,Fluid Pipe |
| Type: | Seamless,round |
| Standard: | ASTM A213 TP347 |
| Thickness: | 1.0～6.0mm |
| Outer diameter: | 10.0～88.9mm |
| Length: | Negotiation between 4-12M |
| Package: | Plywood wooden box for export |
| Company Info. |
| SUZHOU FRANK STEEL CO.,LTD. |
| View Contact Details |
| Product List |
ASTM A213 TP347 Stainless Steel Tubes For High-Temperature And High-Pressure
Superheaters and Reheaters
1. Description
A213 TP347 is a very mature steel in stainless steel seamless steel
pipe.
Recently, the thermal power industry has been developed in various
countries. A213 TP347 stainless steel seamless steel pipe will be
used in the boiler of power station, and the demand for this brand
of stainless steel seamless steel pipe is growing. A213 TP347
belongs to Cr Ni austenitic stainless steel containing niobium.
Because of its stable element Nb, it has good intergranular
corrosion resistance, high endurance strength and oxidation
resistance. In addition, it has good bending and welding
properties.
Allowable use temperature: This grade stainless steel seamless
steel pipe can be used in high temperature and high pressure
environment. For pressure parts, the maximum working temperature
can reach 650 ℃, and for anti-oxidation parts, the maximum
anti-oxidation service temperature can reach 850 ℃.
Applicable industry: A213 TP347 stainless steel seamless steel pipe
is mainly used to make high temperature reheater, high temperature
superheater, high temperature section of platen superheater and
various pipe fittings with high temperature and high pressure
resistance on large power generation boiler with subcritical and
supercritical pressure parameters.
2. Chemical Composition
| Element List | ||||||||||
| America standard | European standard | C % max | Mn % max | P % max | S % max | Si % max | Cr % | Ni % | Mo% | Others |
| TP316 | 1.4401 | 0.080 | 2.0 | 0.045 | 0.03 | 1.00 | 16.00-18.00 | 11.00-14.00 | 2.00-3.00 | - |
| TP316L | 1.4404 | 0.035 | 2.0 | 0.045 | 0.03 | 1.00 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | - |
| TP316Ti | 1.4571 | 0.080 | 2.0 | 0.045 | 0.03 | 0.75 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | Ti:5X(C+N)-0.70 |
| TP317 | / | 0.080 | 2.0 | 0.045 | 0.03 | 1.00 | 18.00-20.00 | 11.00-15.00 | 3.00-4.00 | - |
| TP317L | 1.4438 | 0.035 | 2.0 | 0.045 | 0.03 | 1.00 | 18.00-20.00 | 11.00-15.00 | 3.00-4.00 | - |
| TP321 | 1.4541 | 0.080 | 2.0 | 0.045 | 0.03 | 1.00 | 17.00-19.00 | 9.00-12.00 | - | Ti:5X(C+N)-0.70 |
| TP321H | / | 0.04-0.10 | 2.0 | 0.045 | 0.03 | 1.00 | 17.00-19.00 | 9.00-12.00 | - | Ti:4X(C+N)-0.70 |
| TP347 | 1.4550 | 0.080 | 2.0 | 0.045 | 0.03 | 1.00 | 17.00-19.00 | 9.00-13.00 | - | Nb:10XC-1.1 |
| TP347H | / | 0.04-0.10 | 2.0 | 0.045 | 0.03 | 1.00 | 17.00-19.00 | 9.00-13.00 | - | Nb:8XC-1.1 |
3. Physical Properties
| Grade of steel | |||||
| China(GB) | China(GB) | America AISI(ASTM) | JIS | (Germany) | |
| Old Grade | New Grade | (Japan) | DIN17006 | DIN17007 | |
| 0Cr17Ni12Mo2 | TP316/ 06Cr17Ni12Mo2 | 316/S31600 | SUS316 | X5CrNiMo17-12-2 | |
| 00Cr17Ni14Mo2 | TP316L/ 022Cr17Ni12Mo2 | 316L/S31603 | SUS316L | X2CrNiMo18-14-3 | |
| 0Cr19Ni13Mo3 | TP317/ 06Cr19Ni13Mo3 | 317/S31700 | SUS317 | X5CrNiMo11-13-3 | |
| 00Cr19Ni13Mo3 | TP317L/ 022Cr19Ni13Mo3 | 317L/S31703 | SUS317L | X2CrNiMo18-16-4 | |
| 0Cr18Ni10Ti | TP321/ 06Cr18Ni11Ti | 321/S32100 | SUS321 | X6CrNiTi18-10 | |
| 0Cr18Ni11Nb | TP347/ 06Cr18Ni11Nb | 347/S34700 | SUS347 | X12CrNiNb18-10 | |

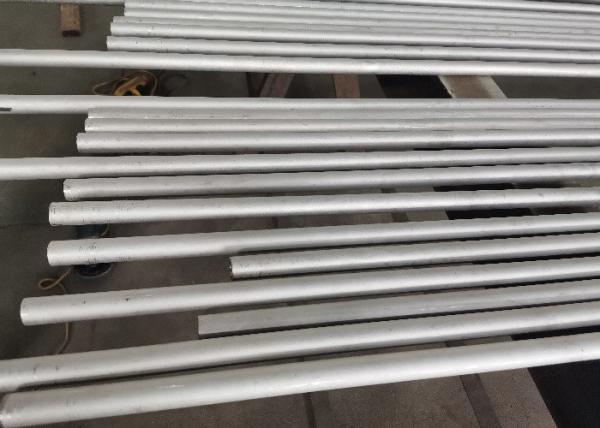

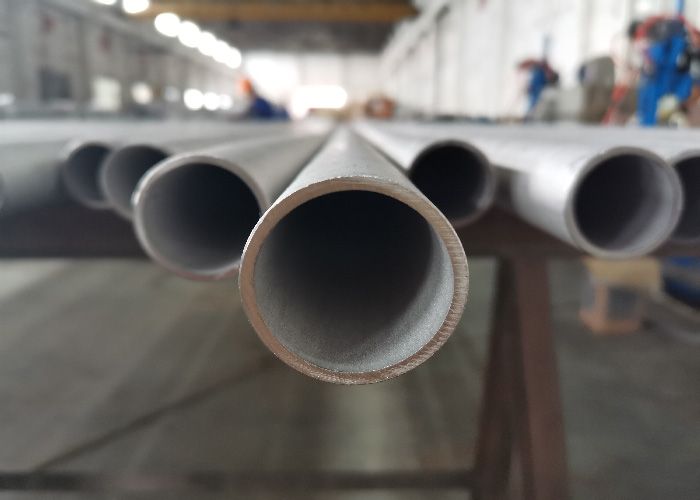

4. Details Picture
|
