Touch Screen 400 Series 18 Zones Walk Through Temperature Scanner

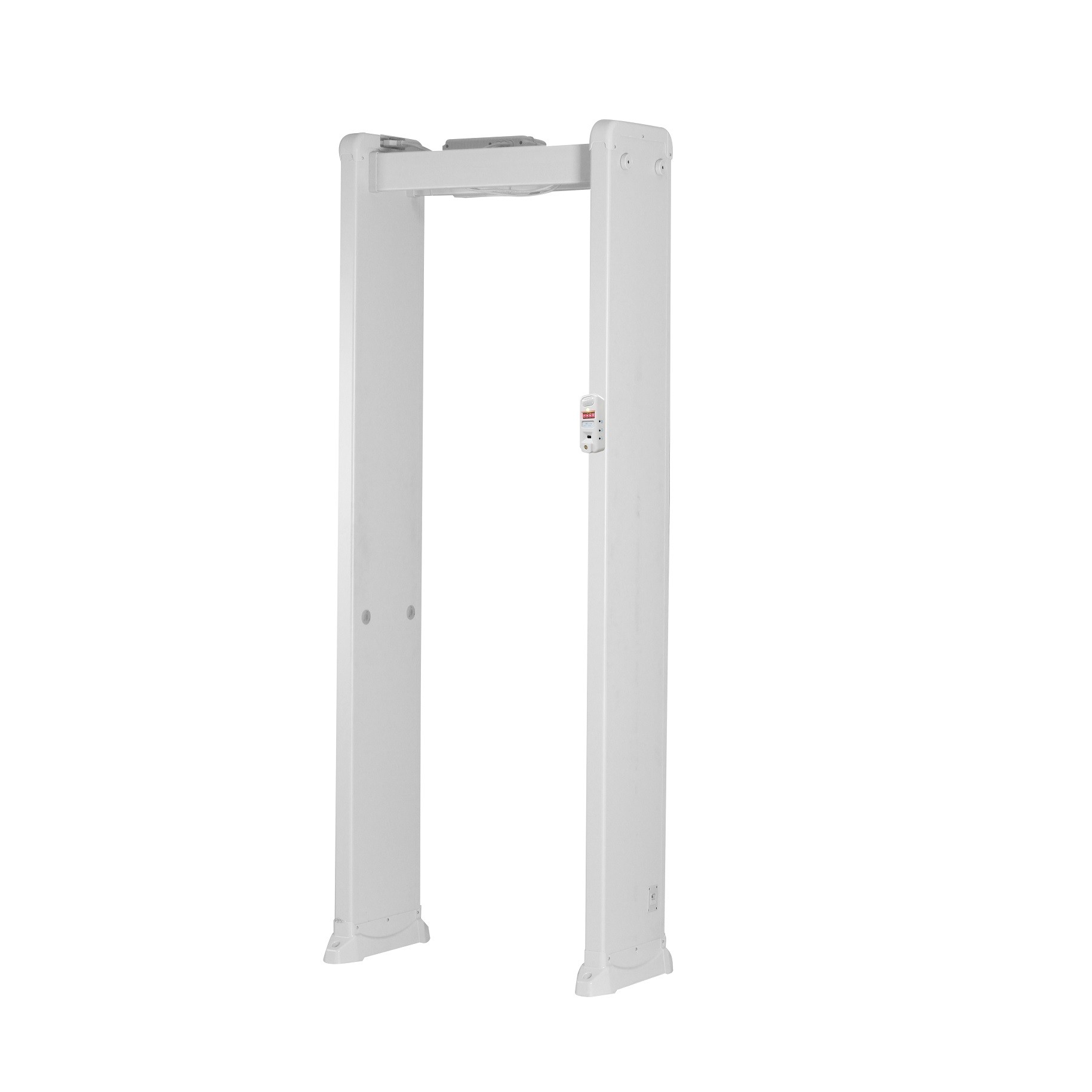

400 Series 18 Zones Touch Screen Walk-through Metal Detector with Infrared Human Body Temperature Measurement

Temperature Measurement Box

Specification:
Product Model Number: Smart - Z - 52020
Input Voltage: 12V 0.5A
Speaker Power: 2W
Maximum temperature: 32ºC-43ºC
Temperature Measuring Distance: 1cm-5cm
Temperature Measurement Accuracy: ±0.2ºC (The ambient
temperature is 15-32ºC)
Display: 0.36 Inch four red digital tube
LED: RGB
Language: Chinese, English, Russian, Arabic
Communication Mode: RS485

Function Set:
1. In the standby interface, press once to display the measurement times, and then press once to display the abnormal times
2. In standby mode, press for 8 seconds to enter the setting state.
C is for setting the compensation value, which can be set with the addition and subtraction keys, ranging from -19.9 to 99.9
Short press once more, F stands for setting temperature unit, F-01 is Celsius, F-02 is Fahrenheit
Short press 'L' again to set the broadcast language. L-01 is in Chinese and L-02 is in English.L-03 is Russian and L-04 is Arabic. Return the temperature measurement without doing anything for 5 seconds
3. In the standby interface, press the button to set the volume
4. Indicator lights:
Yellow - standby.
Green - normal body temperature.
Red - abnormal body temperature.
Note: thermopile should be kept away from heat sources

HOW TO USE:
The temperature can be detected on the Forehead/Back of the hand/Wrist, and the test distance should be between 1 and 5cm
