Brand Name: | Eternal Bliss |
Model Number: | EB9071 |
Certification: | ISO9001-2008 |
Place of Origin: | China |
MOQ: | 5 Kilograms |
Price: | USD 55 ~ 102/Kilograms |
Payment Terms: | by T/T or L/C, Western Union |
Supply Ability: | 100,000.00 |
Delivery Time: | It depends on the quantity to be ordered. |
Packaging Details: | Plywood Case: 1500 x 1000 x 1000mm (Max.) 20 feet container: 25 tons (Max.) |
Product Name: | Welding Rod |
Material: | Cobalt |
Size: | Customer's Drawings |
Welding Current: | 80A-130A |
Operating Current: | 80A-130A |
Operating Temperature: | 30℃ |
Reference Standard: | AWSA.5.21 ERCoCr-A |
Company Info. |
Eternal Bliss Alloy Casting & Forging Co.,LTD. |
Verified Supplier |
View Contact Details |
Product List |
Cobalt Base Alloy Welding Rod Welding Rod
1. Cobalt Alloy Welding Rod is supplied in the following forms:
As-Cast: Meets most hardfacing requirements.
Densified: Hipped to eliminate centerline porosity.
Ground/Finished: Eliminates surface imperfections.
2. Applicable Processes:
Oxy-Acetylen Tungsten Inert Arc (TIG)
Continuous cast solid rod is supplied in standard 1m (36″ for North America) lengths. (Other lengths are available.)
3. Standard rod diameters include:
2.6 mm (3/32″)
3.2 mm (1/8″)
4.0 mm (5/32″)
5.0 mm (3/16″)
6.4 mm (1/4″)
8.0 mm (5/16″)
4. Note: Additional diameters, rod lengths, and packaging available upon request.
5. Chemical Composition:
Composition(%) | C | Cr | Si | W | Fe | Mo | Ni | Mn | Co | Hardness |
1.20 | 29.00 | 1.20 | 4.50 | 3.00 | 1.00 | 3.00 | 1.00 | Bal | 43.0 |

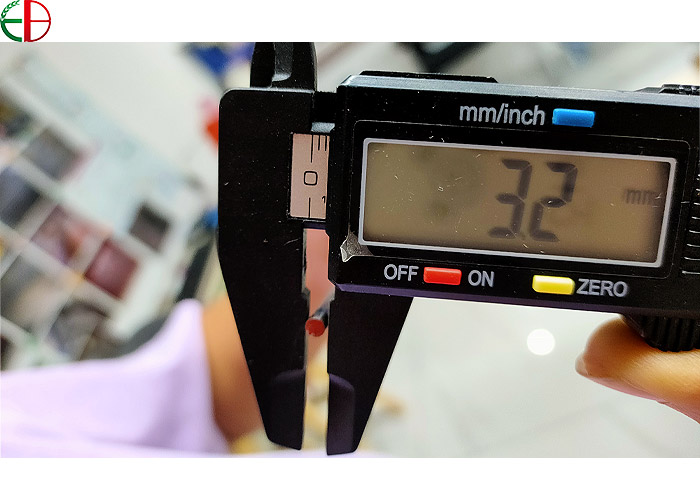

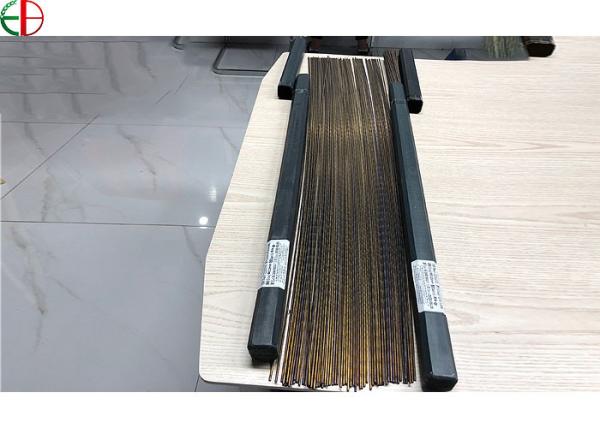

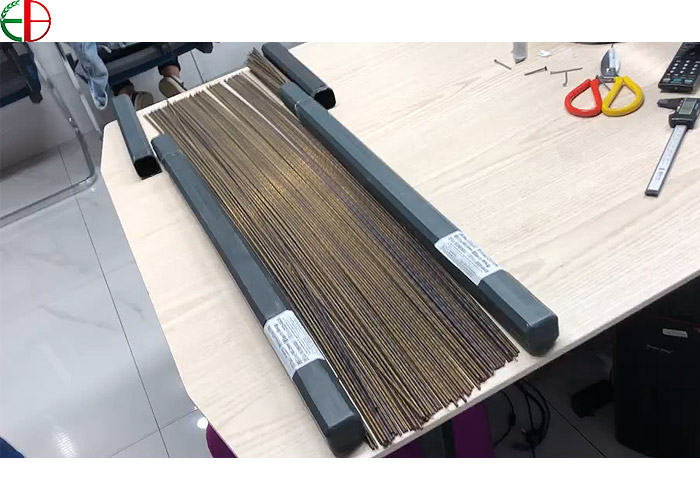

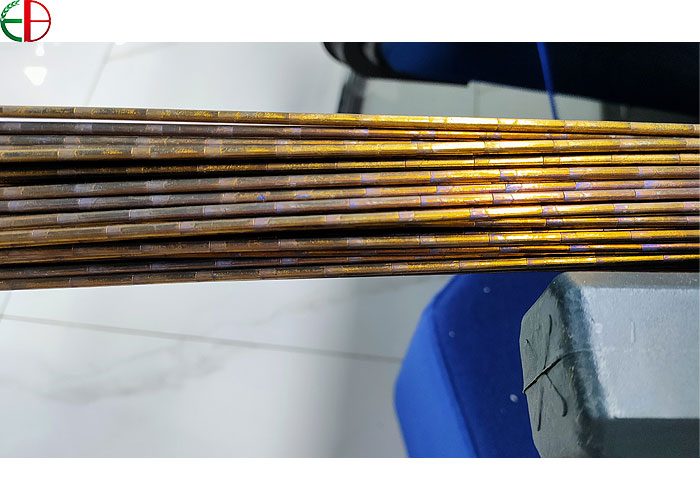

6. Product Details Picture:
![]() |
