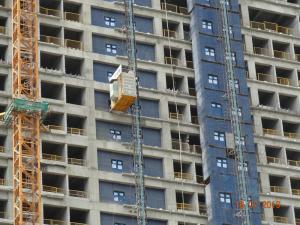

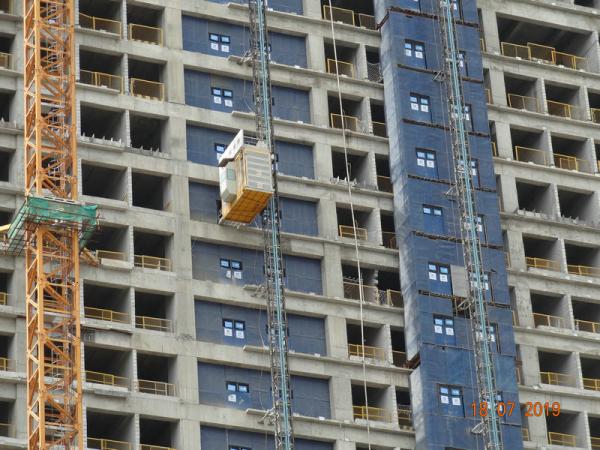

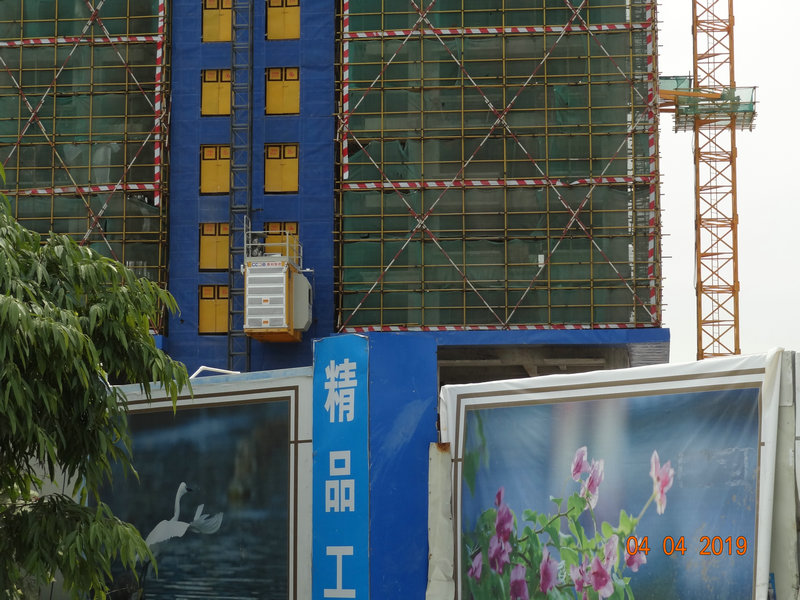

High Safety Guide Rail Rack Pinion Building Construction Lift

High Safety Guide Rail Building Construction Lift

Building Construction Lift Introduction

1. Guide rail system
The construction elevator is equipped with the guide rail system made of 20# steel that is 4.5mm thick.

2. Gear rack
The gear rack is made of 55# steel and its service life is about 10 years.

3. Power system
Same as the engine of a car, the elevating conveyor is the core part of an elevator. The housing is made of 104# GB aluminum to
avoid any cracking. The 94# tin bronze is used to produce the worm gear. Other parts like the worm and fluted disc are made of 38#
chrome green aluminum. Except the bronze worm gear, all other parts aforementioned should experience heat treatment, blackening
and nitride coating. The operating time of the construction hoist is 10 to 15 years.

4. Safety devices
a. Fall arrest device
b. Loading capacity limiter
c. Limit switch
d. Upper limit protection device
e. Lower limit protection device
f. Door limit protection device
g. Escaping window limit protection device
h. Bell warning device
i. Emergency stop protection device
j. Buffering protection device
k. Motor overload protector
l. Transformer short-circuit protection device
m. Phase sequence protection device

5. Cable
We employ genuine GB cable that is guaranteed on quality.

6. Electrical system
The main devices in the electrical system are all imported.
a. The fan installed helps dissipate the heat effectively.
b. With a time delay relay, the construction lift can stop smoothly and steadily.
c. Alarm bell informs users of the starting of the fall arrest device.
d. Failure warning light will send light signals when there is a failure of the motor or electrical system.

7. Protection fence
The outside fence and fence gate are built with plastic-sprayed perforated plate which is one time more expensive than the
expanded plate mesh.

8. Additional scaling ladder
For each construction hoist, two scaling ladders are added to the drive system to ensure more convenient and flexible
installation.

9. Frequency conversion system (optional)
a. Floor selecting function
b. Precise distance for stopping at a layer
c. Protection of gears and racks
d. Gear shifts can be settled to control the lifting speed
e. The passenger hoist can start and stop stably at constant speed with little noise.

Building Construction Lift Specification

Xiamen KANGBO Machinery Group Co., Ltd., has been specializing in manufacturing Construction Hoists and Hoist Spare Parts for more than 20 years.

Products: Construction Hoists and Spare Parts

Capacity: Annual sales quantity is more than 3500 units Construction Hoist.

With experianced mechanical and electrical engineers, skillful technicians, and the most advanced equipments, it is the leading manufacturer of Construction Hoist and its Spare Parts in China.

Most of the welding of the construction lifts are finished by welding robots.
Parts of the construction elevators are finely processed by Computer Numerical Control machine tools.
Sand blasting and baking paint for finishing.

KANGBO produces its own patented helical gearbox and safety device and, has its own test centre for safety devices. There are test platforms for testing and improving all its vertical transportation equipment.
KANGBO construction lifts are TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009, and also obtained CCC certificate for domestic market.
The company has obtained ISO 9001:2000 international quality management system certifications.
The products have been supplied to domestic and overseas markets, and enjoy a prestigious reputation.

Products exported by: Xiamen Comwinning Import and Export Company, Ltd.
