| Categories | Alloy Tool Steel |
|---|---|
| Brand Name: | DZSICO |
| Model Number: | 15-5ph ams 5659 |
| Certification: | SGS / ROHS / ISO9001:2008 / ISO900014001:2004 |
| Place of Origin: | CHINA |
| MOQ: | 200 Kilogram/Kilograms (Min. Order) |
| Price: | $1.50 - $3.50 / Kilogram |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 Ton / Tons per Month ams 5659 15-5ph Stainless Steel Bars |
| Delivery Time: | 7 Days |
| Packaging Details: | Standard Export Packing Or As Requirement, Pack With Woven Belt Or Plywooden Case |
| Standard: | JIS, AiSi, ASTM, GB, DIN, EN |
| Product Name: | 15 5 Cold Rolled Stainless Bar |
| Grade: | 200 Series, 300 Series, 400 Series |
| Type: | Round Bar, Angle Bar, Channel Bar, Square Bar, Flat Bar, I / H Bar, Hexagonal Bar And Profiles |
| Application: | Construction decoration industry |
| Shape: | Round, Round, Square, Rectangle |
| Special Use: | Valve Steels |
| Tolerance: | ±1% |
| Processing Service: | Bending, Welding, Decoiling, Punching, Cutting |
| Surface: | Polished |
| keywords: | Steel bars |
| Technique: | Cold Finished |
| Company Info. |
| DZ Iron Steel Group |
| View Contact Details |
| Product List |

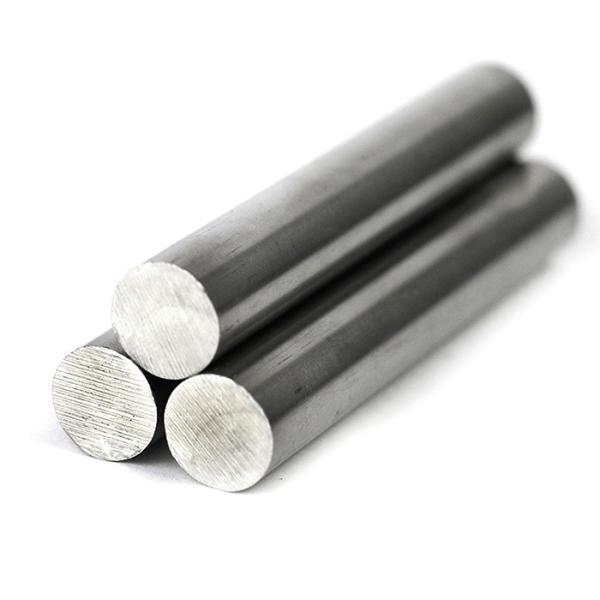

Ams5659 15 5ph H1025 Cold Drawn Stainless Steel Bar Stock Suppliers Price For Sale, Sizes And Weight
| 15-5 Cold Drawn Stainless Steel Bar is a martensitic, precipitation-hardening material with chromium, nickel and copper. It is often a first choice in the aerospace industry for fasteners and structural components. Its unique structure provides increased toughness and better corrosion resistance than its predecessor, 17-4 PH. Both inclusion control and a minimized amount of delta ferrite as compared to 17-4 stainless steel contribute to the greater toughness of 15-5. The alloy is further strengthened by a low temperature heat treatment which precipitates a copper containing phase in the alloy. 15-5 PH is able to meet the stringent mechanical properties required in the aerospace and nuclear industries. |
15 5ph Cold Drawn Stainless Steel Bar Standard Inventory Specifications
# ams 5659
# astm a 564
# 15 5 ph ams 5659
# uns s15500
# sae ams 5659
# ams 5659 spec
15 5ph Cold Drawn Stainless Steel Bar Chemical Composition
| Element | Percent by Weight | |
| C | Carbon | 0.07 maximum |
| Cr | Chromium | 14 - 15.5 |
Cu | Copper | 2.5 - 4.5 |
| Fe | Iron | Balance |
| Si | Silicon | 1.00 maximum |
| S | Sulfur | 0.03 maximum |
| Ni | Nickel | 3.5 - 5.5 |
| Mn | Manganese | 1.0 maximum |
| P | Phosphorus | 0.04 maximum |
| Nb | Niobium plus Tantalum | 0.15 - 0.45 |
15 5ph Cold Drawn Stainless Steel Bar Physical Properties
Condition | A | H900 | H 1075 | H1150 |
Density g/cm (3) | 7.75 | 7.81 | 7.83 | 7.86 |
Density lb/in (3) | 0.280 | 0.282 | 0.283 | 0.284 |
Thermal Conductivity 70-212° | 10.6 | 10.3 | ||
Thermal Conductivity 70-932° | 13.1 | 13.1 | ||
Electrical Resistivity | 98 | 77 | 80 | 86 |
15 5ph Cold Drawn Stainless Steel Bar Mechanical Properties
Condition | Ultimate Tensile Strenght | Yield Strength | Elongation | Reduction of Area | Hardness Brinell | Hardness Rockwell |
| H900 | 190,000 | 170,000 | 6 | 15 | 388 | C40 |
| H1025 | 155,000 | 125,000 | 8 | 27 | 331 | C35 |
| H1075 | 145,000 | 125,000 | 9 | 28 | 311 | C32 |
H1150 | 135,000 | 105,000 | 11 | 30 | 277 | C28 |
H1150-M | 115,000 | 75,000 | 14 | 35 | 255 |
Q: How can you assure your quality? A:1.We can provide you certificate of quality accordingly. 2.We are willing to accept the third party inspection, such as SGS,BV,CE and so on. Q: Can you accept customization? A:Yes. If you have special requirements on products or packages, we can do customization for you. Q: Can you accept trail orders? A:Gemerally our MOQ is 1 ton. But if you want to place a trail order as the beginning of our cooperation, we can accept smaller quantity at frist. Surely we will have further and longer partnership after the beginning. Q: Can you provide samples for checking before order? A: Free samples can be provided as you required. You need only to bear the freight cost. |
|
