36V DC Three Phase 140W Low Noise 0.33N.M BLDC Brushless Motor

Categories Brushless Motors
Brand Name: Prostepper
Model Number: BL60FB36-40-001
Certification: CE/ISO/ROHS
Place of Origin: CHINA
MOQ: 10pcs
Price: Negotiable
Payment Terms: T/T, Western Union, L/C
Supply Ability: 250000pcs per month
Delivery Time: 7-25 work days
Packaging Details: 32.5*30.5*14.5cm
Type: Brushless DC Motor
Temperature Rise: 80°Cmax
Motor length: 85mm
Phase: 3
Color: Black
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

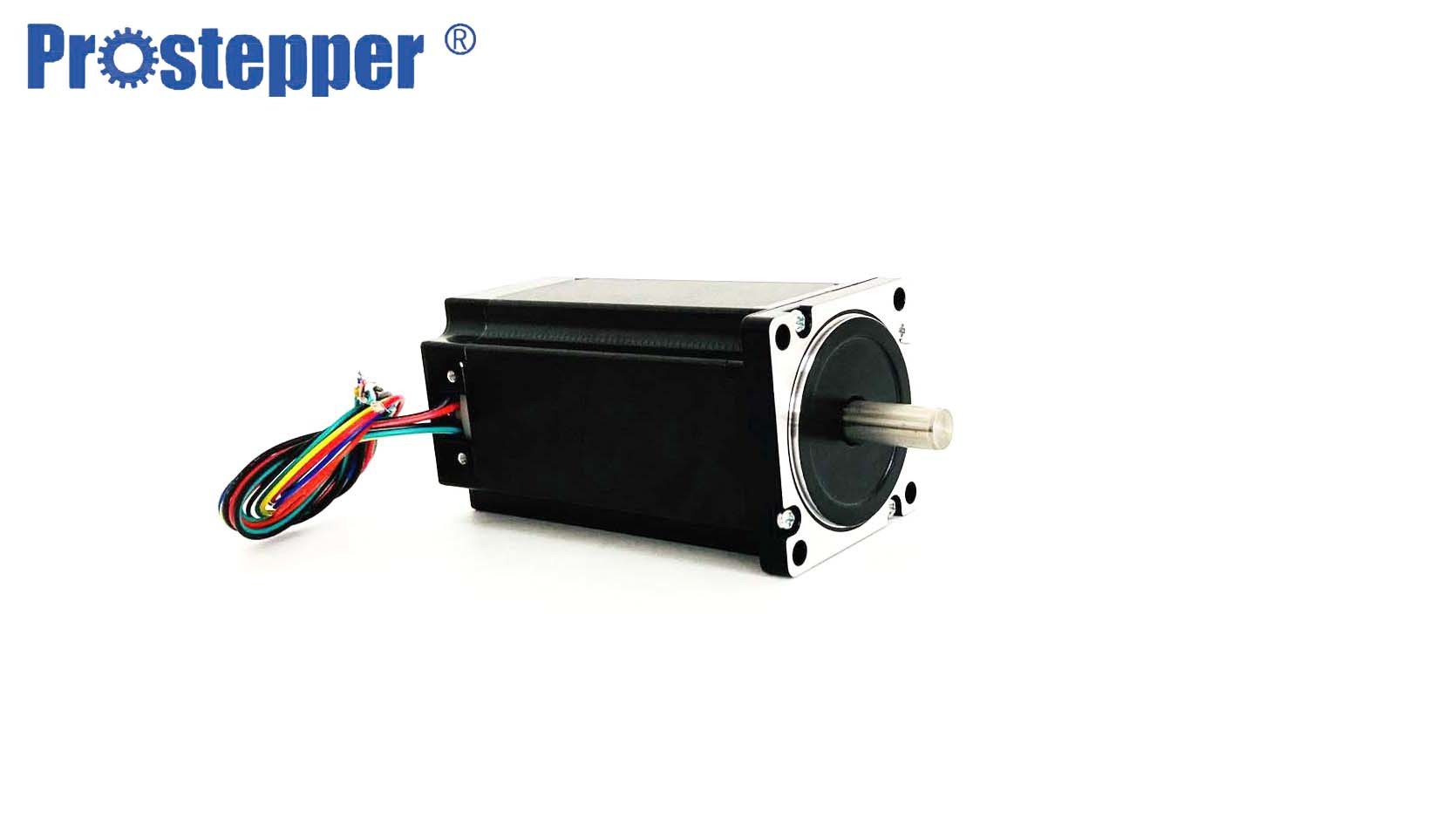

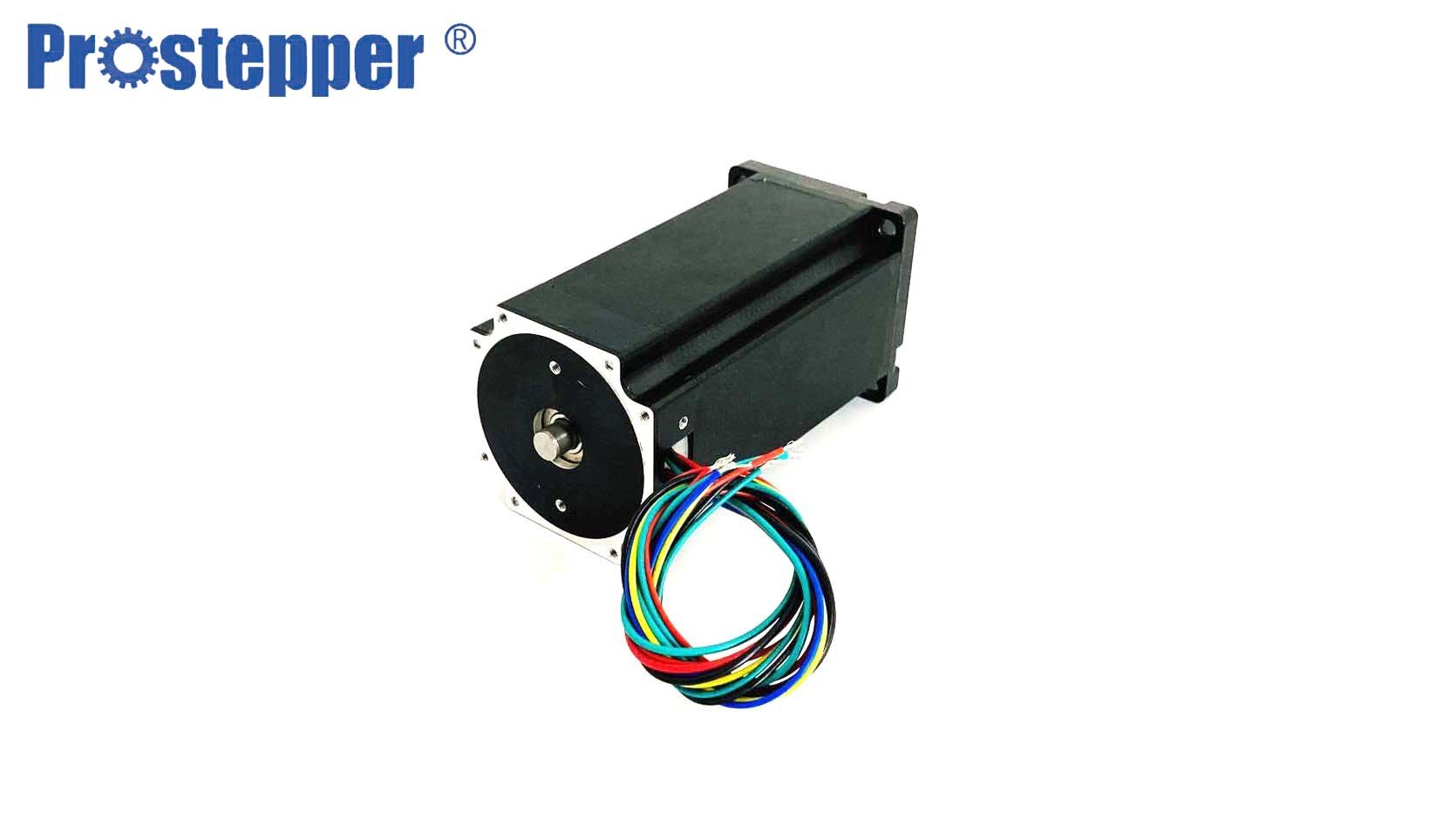

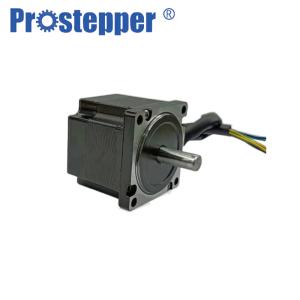

36V DC Three Phase 140W Low Noise 0.33N.M BLDC Brushless Motor


3 phase 140W low noise BLDC motor Black for automatic equipment of the car



Product description


Are brushless motors waterproof?


There are two types of brushless motors—sensored and sensorless.


While there are some sensorless motors labeled as waterproof, it is highly advised that you do no submerge these motors or even subject them


to extremely wet conditions unless you are prepared for and know how to perform motor disassembly and maintenance.


Specifications of brushless motor


SensorHall sensor
Insulation GradeClass B (130 degree)
IP RateIP40
Operating Temperature-10 degree to +50 degree(Non condensing)
Operating Humidity85% RH Max(Non condensing)
Operating Environment

No corrosive gas or dust
No directly contact with water, oil, etc


ModelBL60FB36-40-001
Length mm84±1
Voltage VDC36
Rated Power Watts140
Rated Speed RPM4000
Rated Torque N.m0.33
Rated winding Current A5.0
Resistance OhmTBD
Inductance mHTBD
Maximum Speed5200
Moment of inertia480g.cm2
Motor Mass1.2kgs
Phase3
Pole8







How does a brushless motor work?

In a brushed DC motor, the rotor spins 180-degrees when an electric current is run to the armature. ... In brushless DC motors, the permanent magnets are on the rotor, and the electromagnets are on the stator. A computer then charges the electromagnets in the stator to rotate the rotor a full 360-degrees


What are Brushless DC Motors Used For?

Brushless DC motors typically have an efficiency of 85-90%, while brushed motors are usually only 75-80% efficient.


Brushes eventually wear out, sometimes causing dangerous sparking, limiting the lifespan of a brushed motor. Brushless DC motors are quiet,


lighter and have much longer lifespans. Because computers control the electrical current, brushless DC motors can achieve much more precise


motion control.


Because of all these advantages, brushless DC motors are often used in modern devices where low noise and low heat are required,


especially in devices that run continuously. This may include washing machines, air conditioners and other consumer electronics.


They may even be the main power source for service robots, which will require very careful control of force for safety reasons.


Brushless DC motors provide several distinct advantages over other types of electric motors, which is why they’ve made their way into so many household items and may be a major factor in the growth of service robots inside and outside of the industrial sector.



Can you provide us the following information of brushless motor ?

There are serveral important items: size, length of motor, torque, voltage, current etc.

After confirm some them and told us, we can send you the suitable one.
You can send us the model you are using, we can hep you find out the most suitable one.

Our Customer service about brushless dc motor

1. Before sign an offical contract with our customer , we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.

2. Your inquiry related to our products or price will be replied within 24 hours.

3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.

4. One-year warranty to our display and one year waranty to spare parts.
