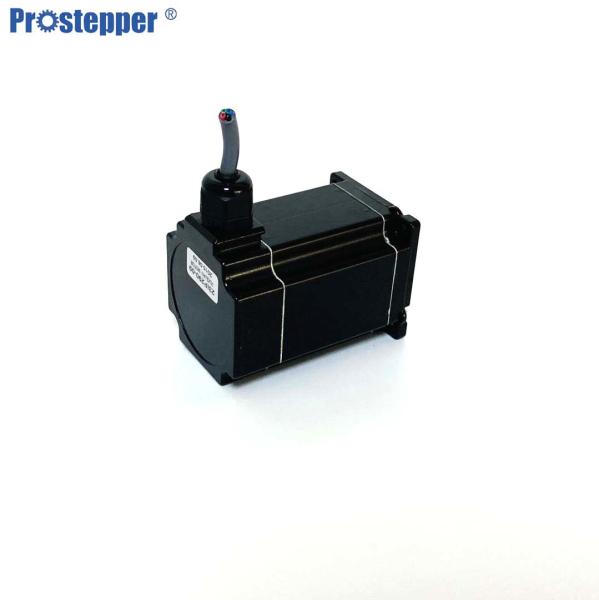

NEMA23 2-Phase Waterproof Type IP65 Stepper Motor with encoder
What is waterproof motor, what requirements does motor waterproof have?
Product description of Waterproof type motor
Stepper motors are economical, accurate, and easy to control, and they can operate reliably in a variety of environments (depending on the level of protection IP chosen) preferably in machines with additional enclosures or in clean environments
High reliability, easy maintenance.Motor rotor structure accurate, no loss of step.Rotor special material, not stuck machine
Specifications
IP Rating :IP65
Holding Torque | 1.2N.m |
Related Current | 4A/Phase |
Resistance | 0.45Ω/Phase |
Inductance | 1.4MH/Phase |
Inertia | 280g.cm² |
Index | × |
Output | Differental |
IP Rating | IP65 |
Weight | 1.6Kg |
Holding Torque | 2N.m |
Related Current | 5A/Phase |
Resistance | 0.37Ω/Phase |
Inductance | 1.8MH/Phase |
Inertia | 480g.cm² |
Index | × |
Output | Differental |
IP Rating | IP65 |
Weight | 2.5Kg |

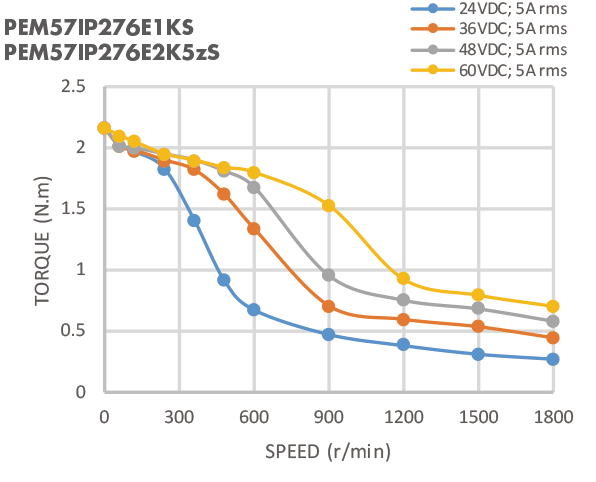

Speed/Torque Characteristics(Reference Value)
Why can't ordinary motors meet this waterproof requirement?
![]() |
