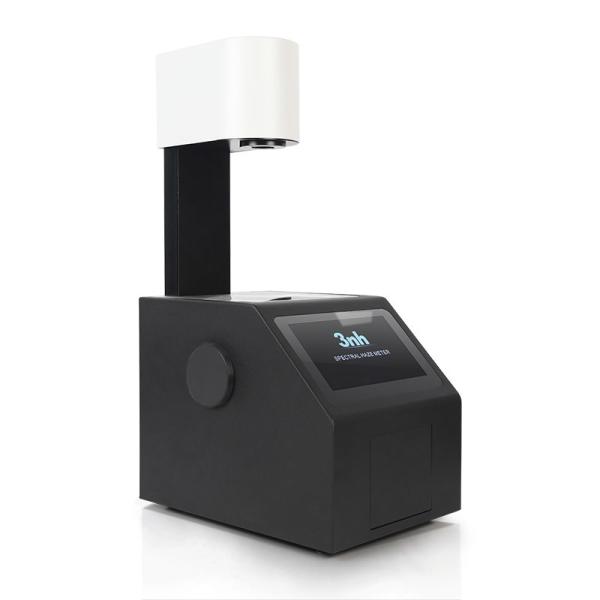

YH1200 haze meter can easily achieve ASTM D1003 non-compensation
method, ISO 13468 compensation method, full light
transmittance,haze test.Open sample bin can be vertically and
horizontally tested to accommodate more samples to be tested.The
YH1200 haze meter uses a PDF array detector to meet the CIE V(λ)2
degree visual response. The compensation method can be used to
measure the light transmittance and haze with high precision and
repeatability.
Technical Advantage
1.Double standard ISO & ASTM
Able to meet the test standard requirements of different users, in
accordance with ASTM D1003/1044,ISO 13468,ISO 14782,GB/T 2410,JJF
1303-2011,CIE 15.2,GB/T 3978,ASTM E308,JIS K7105,JIS K7361,JIS K
7136
2.Easy to operate, faster and more accurate measurement
The YH1200 haze meter is equipped with a large-size touch screen
for easy operation.With a PD array detector, CIE V(λ)2 degree
visual response enables high precision and repeatable transmittance
and fog measurements.USB data output device for docking with
laboratory system.
3.Dynamic measurement
Independent light source detector and temperature sensor,
constantly monitor light source and environmental change, ensure
the reliability of test data.
4.With compensation port, so that the measurement data more
accurate
Meet ASTM D1003 non-compensation method, ISO 13468 compensation
method, full light transmittance, fog test, provide more accurate
test results.
5.Easy to measure and widely applicable to samples
Open measuring area, vertical and horizontal testing, suitable for
more samples to be tested.
6.Quality control software
It provides powerful software for measuring and analyzing fog and
light transmittance, which is suitable for quality monitoring and
tabulated management of fog and light transmittance data in various
industries.The management of users will be digitized at the PC end,
the difference of fog and light transmittance will be compared, and
the test report form will be generated to facilitate customer
customization and management.
Application
YH1200 haze meter is widely used in glass processing, plastic
processing, film processing, screen processing, packaging industry,
liquid pharmaceutical analysis and other aspects.
| Product Model | YH1200 Haze Meter |
| Optical Geometry | Transmittance:0/D(Parallel light illumination, diffuse viewing)
Conforms to:ASTM D1003/1044,ISO 14782,GB/T 2410,JJF 1303-2011,CIE
15.2,GB/T 3978,ASTM E308,JIS K7105,JIS K7361,JIS K 7136 |
| Character | The instrument can easily achieve ASTM D1003 non-compensation
method, full light transmittance,haze test. Open measuring area for
vertical and horizontal testing. In glass processing, plastic
processing, film, screen processing, packaging and other industries
are widely used in transmittance,haze detection. |
| Integrating Sphere Size | Φ154mm |
| Light Source | 400nm to 700nm, combined LED light |
| Specular Component | / |
| Sensor | The PD array detector satisfies CIE V(λ)2 degree visual response |
| Wavelength Range | / |
| Wavelength Interval | / |
| Semiband Width | / |
| Transmittance measurement range | 0~100% |
| Measuring Aperture | Φ20mm/Φ15mm/Φ8mm/Φ4mm(Select a single aperture) |
| Sample Size | Thickness <170mm |
| Color Space | / |
| Color Difference Formula | / |
| Other Colorimetric Index | Haze(ASTM D1003/1044,ISO13468),Transmittance T(ISO),Transmittance
T(ASTM) |
| Observer Angle | 2° |
| Illuminant | D65,A,C |
| Displayed Data | PASS/FAIL Result |
| Measuring Time | About1.5s |
| Haze resolution | 0.01unit |
| Haze repeatability | Φ20mm,within 0.1(After preheating and calibration of the
instrument, standard deviation values of standard haze tablets with
a test haze of about 40 for 30 times were taken at intervals of
5s.) |
| Inter-instrument Error | Φ20mm,with 0.4(After the instrument is preheated and calibrated,
the standard deviation between the standard haze tablet and the
reference value is tested at an interval of 5s.) |
| Dimension | L*W*H=290X211X511mm |
| Weight | About7.6kg |
| Power | AC 24V, 3A Power adapter power supply |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB & Print serial port |
| Data Storage | Standard 1000 pcs,sample 20000 pcs |
| Language | Simplified Chinese,Traditional Chinese,English |
| Operating Environment | 0~40℃(32~104°F) |
| Storage Environment | -20~50℃(-4~122°F) |
| Standard Accessory | Power Adapter, User Guide,Quality Management Software (download
from the official website),USB cable,0% calibration box,Aperture. |
| Optional Accessory | Micro-printer,Test fixture, standard haze sheet, foot switch |
| Note: | The specifications are subject to change without notice. |
