SS304 Powerful 5 bars 7 bars N35 Industrial hopper Magnets

SS304 Powerful 5 bars 7 bars N35 Industrial hopper Magnets

SS304 Powerful 5 bars 7 bars N35 Industrial hopper Magnets
SS304 Powerful 5 bars 7 bars N35 Industrial hopper Magnets
Categories Industrial Bar Magnets
Brand Name: YYMAG
Model Number: Magnetic filters
Certification: ISO / REACH / SGS
Place of Origin: China
MOQ: 2pcs
Price: US$10-30/pc
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs per month
Delivery Time: 25 days
Packaging Details: Standard export packing according to your requirement
Name: SS304 / SS316 Ferrite Ceramic Magnetic Tube Filter Powerful Rod Permanent Magnet Filters
Application: Food industry
Shape: custom size
Surface gauss: 3000-12000gauss
Working temperature: 80 degree
Material: SUS304
Grade: N35
Lead time: 25 days
Contact Now
Company Info.
Hangzhou Yangyi Magnetics Co., Ltd.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

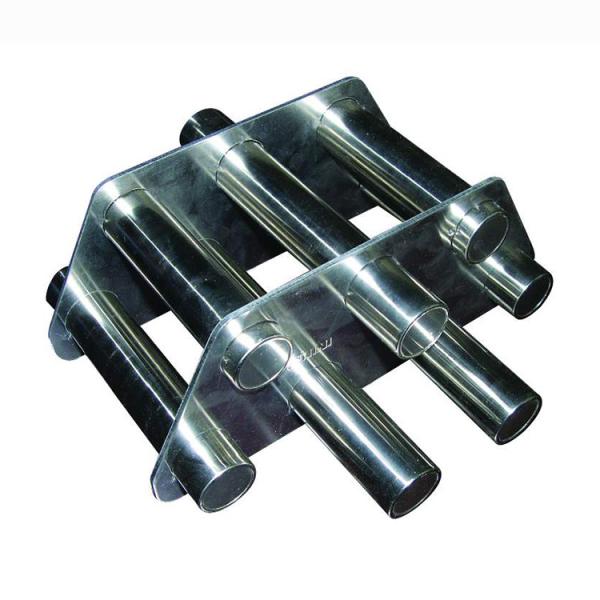

SS304 Powerful 5 bars 7 bars N35 Industrial hopper Magnets

SS304 / SS316 Ferrite Ceramic Magnetic Tube Filter Powerful Rod Permanent Magnet Filters

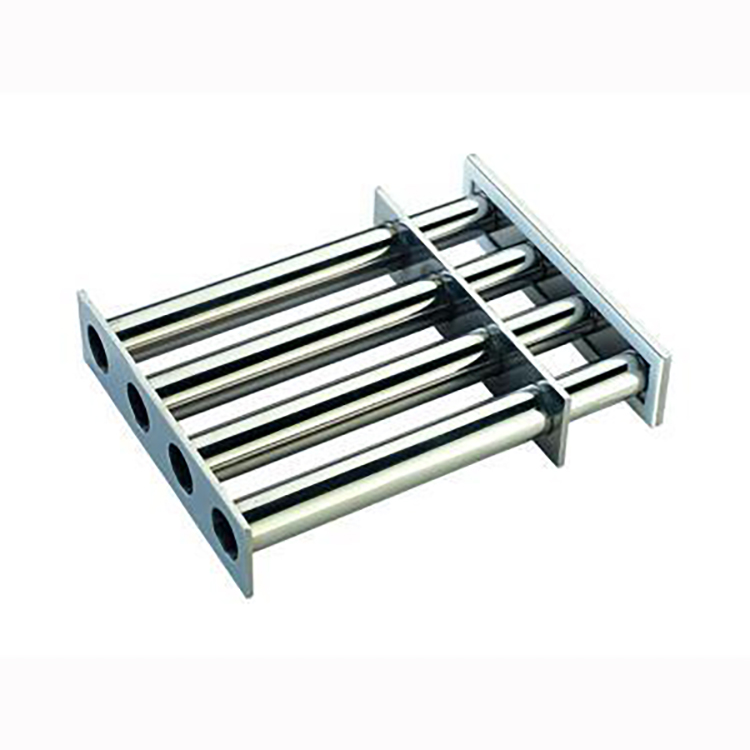

1. Magnetic filter bars, Magnetic Rods, Magnetic Filter tube (Magnetic Separator) is extremely efficient at removing fine iron contamination from free-flowing products such as sugar, grain, tea, flour, Plastic, liquid, granulate and any other type of powder with low moisture content. As a result, it will protect your equipment and facilities safe and sound, and your products will be safe to sell customers. This item can be supplied with any shape frame or studded end for easy installation.
2. Magnetic filter bars are particularly useful for those engineers who wish to build their own separator units or have severe room restrictions and are not able to accommodate a conventional unit. All product contact parts are made by food-grade 304 or 316 stainless steel tube.
3. The magnetic filter rods with special welding at both ends without leak forever. Welding energy concentrate on the welding line and do not hurt the magnet, maximal protect the magnetic field. The available magnetic area can be expanded to the limited rod surface and without adding any extra magnet. Once welded the rods are finish machined and highly polished.
Dimension, Construction, and Features
1. For round magnetic filter bars & rods, we have Diameter 0.5″, 0.75″, 0.875″, 1″, 1.25″, 1.5″, 1.75″, 2″, 3″, 4″ for your choice. But the most common diameter is 1″. Standard tube lengths range from 3″ to 60″ long. Square magnetic bars can be provided on request.
2. Constructed of SUS304 & SUS316 pipe tube, it is equipped with high-density Ferrite magnets and high-performance neodymium magnets to suit your applications. You can build or modify your own magnetic separation equipment with an individual magnetic filter bar or rod.
3. Magnetic strength from 1500-12000gauss can be asked as per your requirements. For a normal magnetic bar equipped with ferrite magnets, the magnetic force will be more than 3,000 Gauss on the surfaces and could be used in the temperatures of 150°C. For the magnetic bar equipped with strong neodymium magnets, the magnetic value can reach 12,000 Gauss on the surfaces.
4. Fully seal welded with either plain end plugs or tapped end plugs can meet your different requirements.
5. All of the magnetic bars are waterproof.
6. Condition: Well polished.

Magnetic Filters
SizeD12/D16/D19/D22/D25/D25.4/D28/D32mm
Surface gauss3000gauss-12000gauss
SampleAvalible
Lead time20 days

Product Show

Packaging


Standard export package for air and sea shipping.
usually inner carton -→ outer box (single layer and double layer) -→ pallet and can be packaged per your requests.

+By Air: all the magnetic should be degaussed and we will use Iron sheet to shield.
+By Sea: we will place a pallet on the bottom of cartons.


Shipping


Express (TNT, DHL, FedEx, UPS, etc), Air, Ocean.
a: The weight is under 40Kgs, we recommend to send them in shielding boxes to you by Express.
b: The weight is between 40Kgs-100Kgs, it can be sent by Express or Air.
c: The weight is over 100Kgs, we recommend to send them by Ocean.

Notice to Buyers

In order to effectively provide you with high-quality magnetic products and quote you the best price, we need to know the following information before you place an order: 1) Material? Grade? Shape? Size? Tolerance? Order quantity? 2) Surface treatment? Zinc plated? Nickel plated? Ni-Cu-Ni plated? 3) Is it magnetized? If magnetized, what is the magnetization direction? 4) The maximum temperature of the working environment of the magnet? 5) Please let us know if you have any question or request.
