OD 36inch Low Fin Tubes

Categories Low Fin Tube
Brand Name: DELLOK
Model Number: Low Finned Tubes
Certification: CE. ISO,EN10204. 3.1 Cert.
Place of Origin: China
MOQ: N/A Contact us for details
Price: N/A Contact us for details
Payment Terms: L/C, T/T Contact us for details
Supply Ability: 60000 meters month
Delivery Time: Ex-work with 5 weeks after order.
Packaging Details: (1) All integral low fin tubes are packed in hexagonal bundles. (2) Steel frame case sealed by plywoods; 3: Solid fumigated seaworthy wooden box.
Fin Tube Type: Low Fin Tubes
Fin Thickness: ~0.33mm
OD: 12.7 mm~25.4mm
Length: No Limit
Height: 1.2 mm ~2.77mm
Pitch: 30 FPI /28 FPI/ 26 FPI/ 36 FPI /43 FPI
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

OD 36inch Low Fin Tubes

OD 36inch Low Fin Tubes

Seamless SB338 G.2 titanium integral low finned tube with fin pitch of 30FPI / 36FPI / 43FPI


Description:
Manufacturing process: The fins are rolled out of outer wall of the plain tubes by a pass roller. Tubes and fins are in same piece tube. We call it “N” fin type.

Product Details
Material:Carbon Steel,Stainless Steel, Brass,copper Etc…
Fin thickness:appr. 0.3mm
Fin Height:1.2 mm ~2.77mm
Tube Length:No Limit
Fin Pitch:30 FPI /28 FPI/ 26 FPI/ 36 FPI /43 FPI
Tube OD:12.7 mm~25.4mm
Production Capacity:Daily capacity up to 3000 meters;
Packing:Steel frame with plywoods or seaworthy wooden box.

Two Types

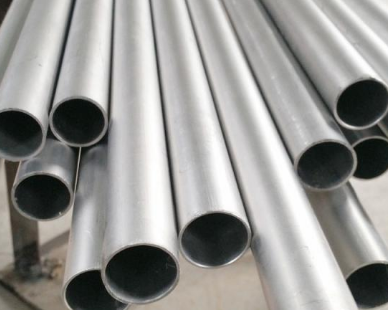

Titanium welded pipe / tubingASTM B338,
ASTM B862
Gr1 GR2 GR7 GR12OD (10.3~914) = (1/8~36)Inch
WT (0.5~30.96) = (0.049~1.219) Inch Length

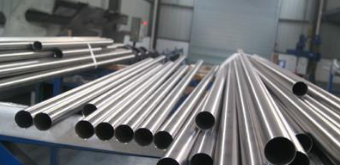

Titanium seamless pipe / tubingASTM B338,
ASTM B337,
ASTM B861
GR1 GR2 GR3 GR5 GR6 GR7 GR9 GR12 GR16 GR17 etc.OD (1.5~420)
WT(0.3~16 )Length 18000 mm

Introduction:

All the tubes has assured by hydrostatic or pneumatic tests, eddy current tests & MARCO tests in order to verify design specifications. And we can provide the integral low fin tubes with un-finned section gaps ( 5mm Min.) in the middle of core tube OR bent with designed Bend Radius. Besides, the desiccants are put into the each package for continental transportation.

Acceptance Certification:
WOLVERINE / HPT / GEWA-K & GEWA-KS

Applications:
​The Integral Low Finned Tubes find the preference in the following industrial sectors:

  1. Heating systems
  2. Ventilation systems
  3. Refrigeration and climate control systems
  4. Mechanical engineering
  5. Automotive manufacturing
  6. Chemicals and pertrochemical and power plant technology
Our Service
1Inquiry-Professional quotation, or send inquiry item more details, we start contact more details
2Confirm the price, lead time, payment term etc
3Our sales send the Proforma Invoice with our seal, or you order online to us
4Customer make the payment for deposit and send us Bank receipt
5Initial Production Stage-Inform the clients that we habe got the payment, and will make the samples according to your request, send you photos or samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time
6Middle Production-send photos to show the production line which you can see you products. Confirm the estimated delivery time again.
7End Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party inspection
8Clients make payment for balance and ship goods, inform the tracking number and check the status for clients
9Order can be say "finish" when you receive the goods and satisfy with them
10Feedback to our about Quality, Service, Market Feedback & Suggestion. And we can do better
