Smooth Plastic HDPE Geocell Confinement System

Road Construction Gravel Grid Smoothly Plastic hdpe Geocell Confinement System

Brief Introduction of Geocell Confinement System

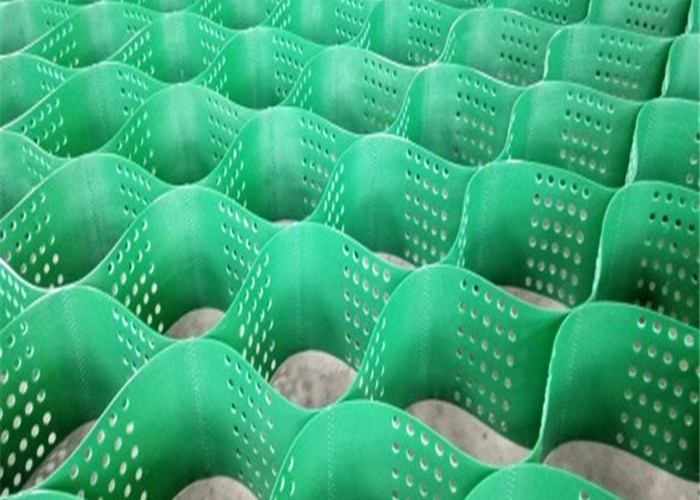

Geocell is a kind of three-dimensional reticulated cell structure, which is made of REINFORCED HDPE sheet material and welded by high-speed welding. Generally by ultrasonic needle welding. Due to engineering needs, some holes are drilled on the diaphragm. It can stretch freely, shrink and fold when transporting, open and fill with earth rock or concrete material when in use, forming a structure with strong lateral restriction and large stiffness. It can be used as cushion to treat soft foundation and increase the bearing capacity of foundation. It can also be laid on the slope to form slope protection structure, and can also be used to build retaining structure.

Geocell Confinement System Characteristic

Geocell is a kind of engineering data which is widely used and engineering mechanical function has been improved. It has the advantages of flexible expansion, small transportation volume, convenient connection and fast construction speed. It has been used in some foreign projects for a long time, and geocell manufacturers have been gradually promoting it in recent years. It is mainly used in soft foundation treatment of engineering, foundation bed reinforcement of railway and highway, greening of river slope, jumping bridge head of bridge joint, greening of river dam slope, reinforcement and anti-corrosion, etc.

Geocell Confinement System history:

The Army Corp of Engineers invented 3D geocelluar grids in the 1970’s. The geocell was designed for quick installation on beaches for amphibious beach assaults. It could be stored and moved in a very compact form, expanded and filled with sand, and ready at an instant for supporting vehicles, which would otherwise get stuck in the sand. The geocells were also used extensively in Desert Storm. Soldiers would spread the geocells out in the desert, fill cells with sand, and drive tanks and trucks on them. They would even land planes on them! The geocells could easily be removed when no longer needed.

Geocells: Easy to move, quick and easy to install, and temporary, if need be.

Geocell Confinement System Features:

1) Light material, resistant to wear, stable in chemical properties, anti-aging, resistant to acids and alkalis, applicable to different soil and desert and other geological conditions.

2)High limit on lateral direction, anti-skidding, anti-deformation, effectively enhance the supporting ability and scattered load function of roadbed.

3)High carrying capacity and good dynamic performance and high erosion ability

4)The geometry size can be changed to meet different needs of the project, such as height and welding distance.

Application of Geocell Confinement System:

Geocell has the functions of filtration, drainage, isolation, reinforcement, seepage prevention and protection. In recent years, the reinforcement function has been applied more and more, and its application field has gradually expanded. However, this technology is not widely used in China, and it is in the promotion stage, especially in large and medium-sized projects. At present, geocell is mainly used in railway and other projects, but also gradually used in flood dike, cofferdam, inland port wharf and other water conservancy projects. In soil retaining wall, the tensile strength of geocell and its restriction on lateral displacement of soil will greatly affect the stability of soil itself.

About Hengquan

Anping County Hengquan Metal Wire Mesh Products Co.,Ltd established in 2013, has specialized in the production and marketing of geogrids, geotextiles, geocells, geomembrane, chain link, welded wire mesh panel, hexagonal wire netting. The company now has a staff of 150 and 18 sets of professional high-tech equipment for geosynthetics and wire mesh production.

Hengquan company takes integrity and innovation as its core development philosophy. With 8 Years of experience, we have passed ISO9001:2000,ISO14000 :2000,CE,TUV, 90 ,Western Europe, Central America. Meanwhile, has built its reputation on a commitment to provide high-quality products and efficient services for its global clients.
